A thin wall carbon fiber tube sits at the edge of what’s structurally practical. Wall thickness from 0.3mm to 1.0mm means the tube is light — sometimes startlingly light — but it also means the margin between “working” and “buckled” is narrow. At 0.3mm wall on a 10mm OD, the diameter-to-thickness ratio is over 33:1. That’s well into thin-shell territory where local buckling, not material strength, governs the design. Understanding that distinction is the difference between a tube that performs and one that collapses under a load it should theoretically handle.
Roll-wrapping is the only practical method for thin wall CF tubes at this range. Pultrusion can’t reliably produce walls below 1.0mm — the die pressure crushes the profile before it cures. Roll-wrapping lets us build the wall one pre-preg layer at a time, controlling thickness to ±0.05mm. Each layer is a single ply of 3K twill or plain weave (roughly 0.15mm per ply after cure), so a 0.3mm wall is two plies, 0.5mm is three plies, and 1.0mm is roughly six plies. That layer-by-layer control matters when you’re designing to a weight budget of ±2 grams per meter.

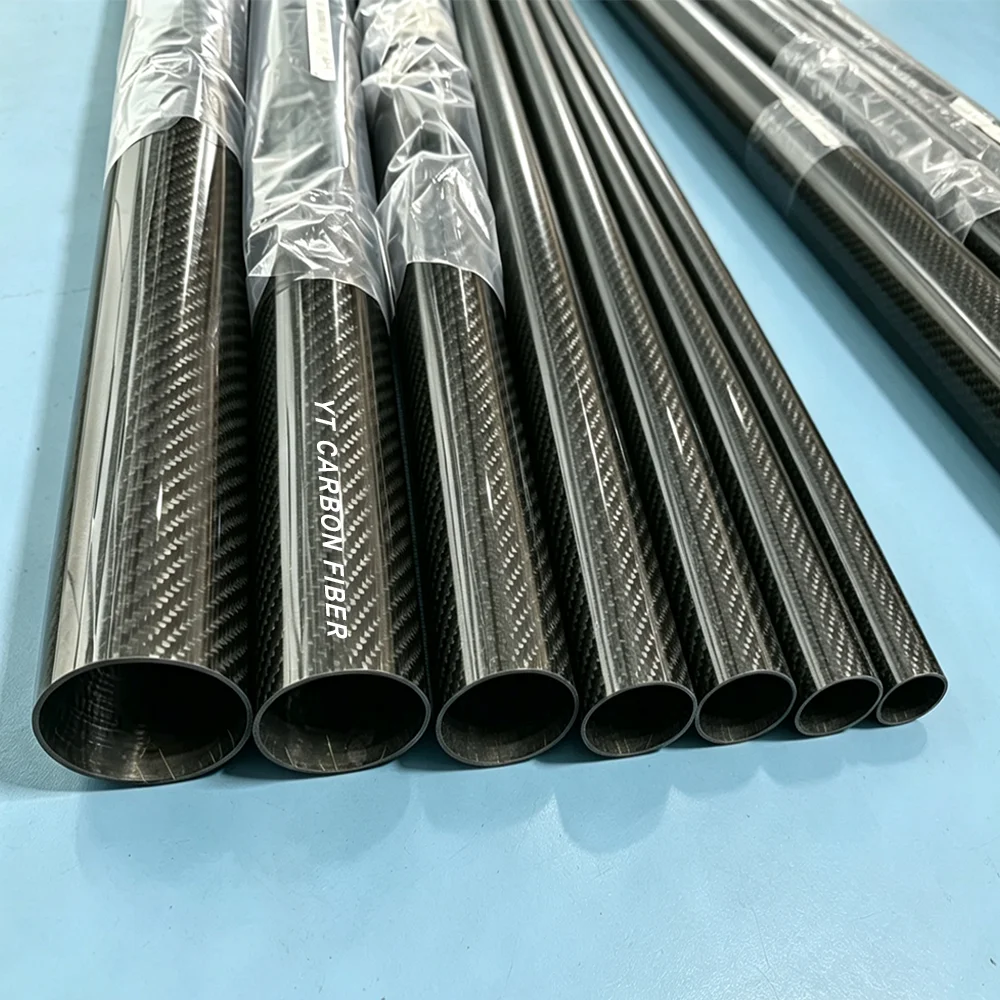

We manufacture thin wall carbon fiber tubes in our Shenzhen factory from 4mm to 80mm OD. For diameters below 20mm, we recommend staying at or above 0.5mm wall unless your application is purely tensile (kite spars, tent poles) with minimal bending or point loads. For larger diameters, 1.0mm wall works up to about 40mm OD under light loads — beyond that, step up to our standard wall range. Our pultrusion line also produces thin-wall tubes at 1.0mm+ wall up to 8 meters single-piece for projects that need length without weight. Buying from a China carbon fiber tube factory direct gives you the engineering support to pick the right wall — not just the cheapest one.
Specifications
| Specification | Details |
|---|---|
| Material | T300 / T700 carbon fiber |
| Cross-Section | Round (circular) |
| Outer Diameter | 4mm – 80mm |
| Inner Diameter | Custom OD/ID |
| Wall Thickness | 0.3mm – 1.0mm |
| Max Single-Piece Length | 3000mm (roll-wrapped) / 8000mm (pultruded 1.0mm+) |
| Construction | Roll-wrapped (primary) |
| Weave Options | 3K Twill / Plain |
| Surface Finish | Glossy (standard) / Matte |
| Wall Thickness Tolerance | ±0.05mm |
| Fiber Volume Fraction | 60–65% |
| Density | 1.55–1.60 g/cm³ |
| Operating Temperature | -40°C to 120°C |
Applications
- UAV frames and drone arms — Thin wall CF tubes cut 30–50% weight vs. standard 1.5mm wall, critical for flight time. 0.5mm wall in 10mm OD is a proven combo for 5-inch racing frames
- Kite spars and tent poles — Primarily tensile loads with minimal bending moment — the ideal case for ultra-thin walls where stiffness per gram beats stiffness per dollar
- Competitive robotics and COTS frames — FRC and combat robots running at weight limits use thin-wall CF tubes as structural members that pass scale but don’t waste grams
- Camera rigs and boom poles — Extendable booms and jib arms where the tube carries its own weight over long spans; lighter tube means less counterweight needed
Why Choose YTCarbon
- We exhibited at the 2025 World UAV Expo — see what a real carbon fiber factory puts on the table. Our thin wall tubes are not catalog-only items; they’re production-run products we ship daily, with roll-wrapping tooling from 4mm to 80mm OD and pultrusion up to 8 meters for 1.0mm+ walls
- Wall thickness tolerance ±0.05mm. At 0.3mm wall, a 0.05mm overshoot is a 17% weight increase. We control each pre-preg ply to hit your target — no guesswork, no “approximately 0.3mm” that’s actually 0.45mm
- Buckling analysis on request. We don’t just sell thin tubes and hope for the best. Send us your OD, length, and loading, and we’ll run a quick buckling check to confirm the wall works — or tell you honestly if it doesn’t
- Factory direct from Shenzhen. Thin wall tubes are precision products, not commodity items. Buying from the production team means you get engineering support, real tolerance data, and pricing without trading company margins
Certifications
Every thin wall carbon fiber tube we ship carries documented quality credentials. Our facility holds ISO 9001 certification for quality management, and our carbon fiber materials are RoHS and CE compliant — required if you’re selling into the EU or supplying customers who need traceable material documentation. Need a copy for your records? Just ask and we’ll send the PDF.
How to Order

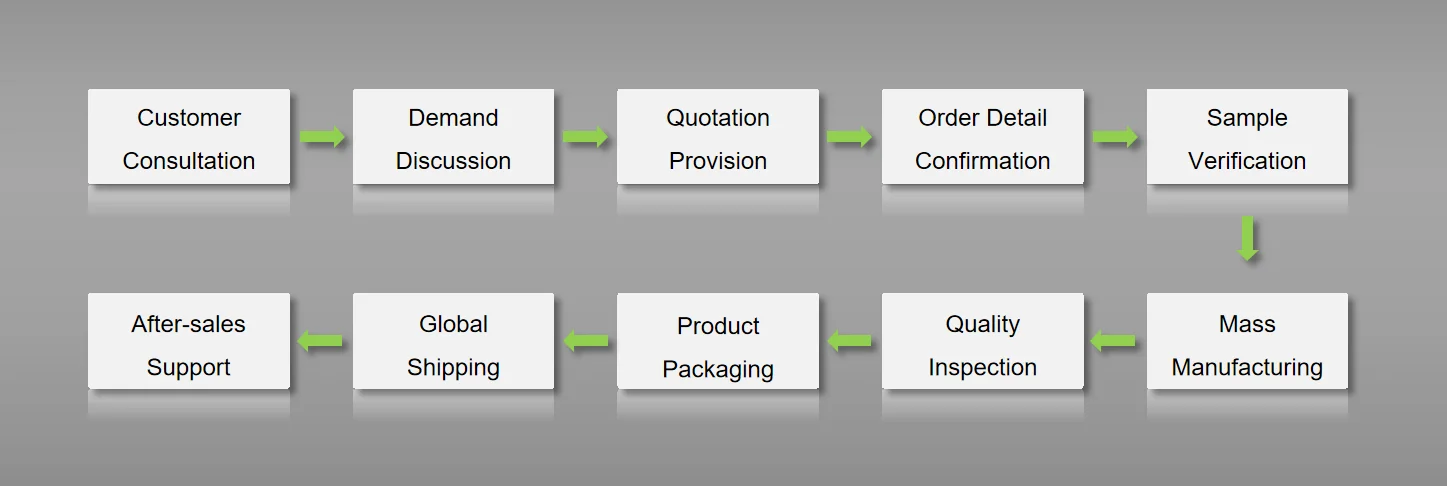

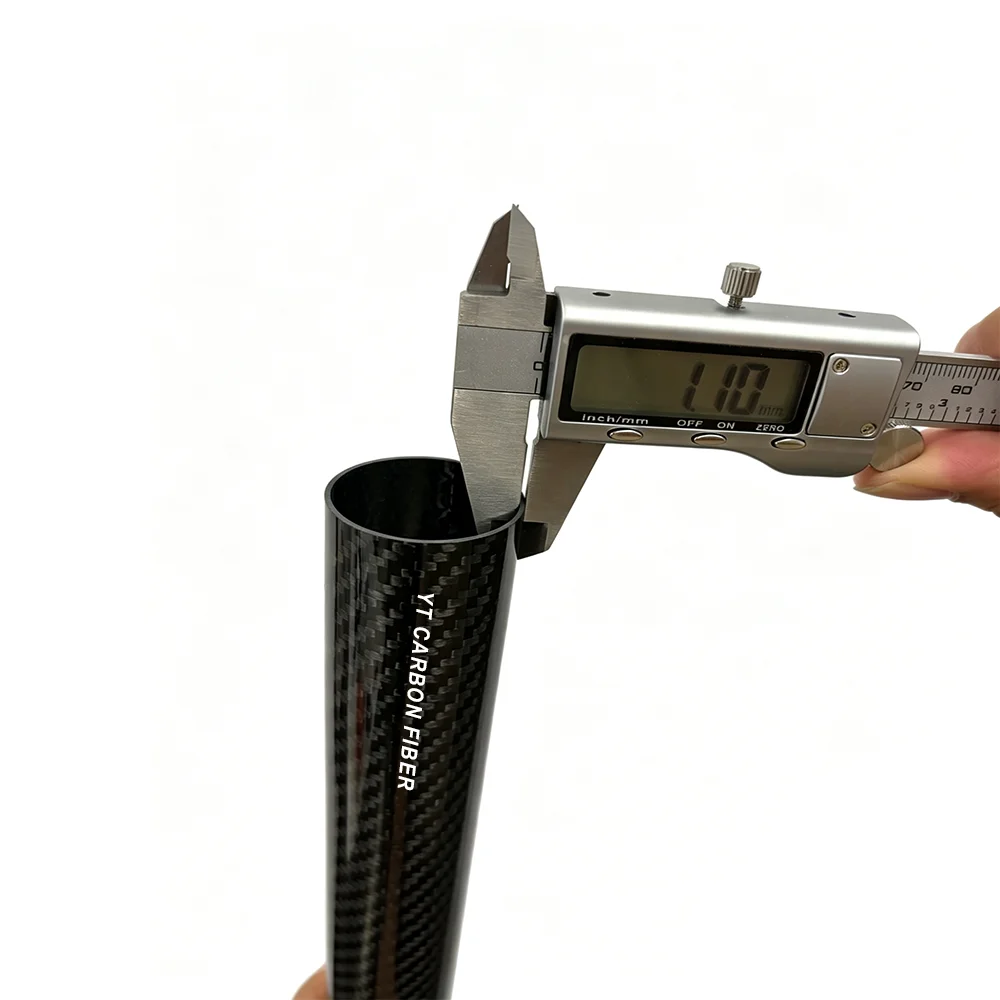

Tell us your OD, ID, wall thickness, length, weave, and quantity. For thin wall tubes, we recommend sharing your load case — even a rough one — so we can confirm the wall works before you invest. Standard sizes in our existing mandrels ship in 10–15 working days; new mandrel tooling adds 7–10 days. For pultruded thin-wall tubes at 1.0mm wall and above, our line runs up to 8 meters single-piece. Every order includes wall thickness measurement at a minimum of three points along the length.
Frequently Asked Questions
+ How thin can a carbon fiber tube wall be?
+ Will a thin wall carbon fiber tube buckle under load?
+ What is the weight difference between a thin wall and standard wall CF tube?
+ Can thin wall carbon fiber tubes be used for telescoping poles?
+ What weave is best for a thin wall carbon fiber tube?
Need Thin Wall Carbon Fiber Tubes for a Weight-Critical Build?
Tell us OD, wall thickness, length, and application. We’ll confirm the wall works for your load and send a factory direct quote within 24 hours.
