Engineered Carbon Fiber Tube Applications
From high-rigidity UAV drone arms to heavy-tonnage industrial transmission rollers, YT CARBON manufactures high-modulus roll-wrapped and pultruded composite tubing engineered for high torsional strength, minimal inertia, and tight geometric tolerances.
Industries Powered by Carbon Fiber Tubing
Explore how high-performance structural composite tubes replace aluminum and alloy steel across mission-critical aerospace, automation, sports, and precision instrumentation sectors.

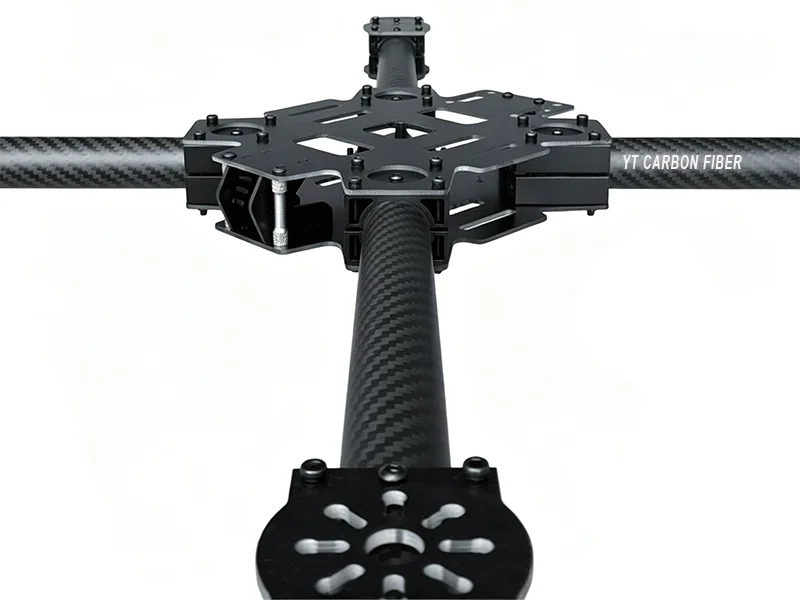

UAV Drone Frame Arms & Structural Booms
Serving commercial drone manufacturers, FPV racing pilots, and heavy-payload agricultural UAV operators.
Engineering Challenges:
- Metallic tubes add excessive deadweight, directly reducing payload capacity and flight duration.
- Standard off-the-shelf tube diameters frequently fail to match motor mount specifications.
- Field crashes cause severe delamination in low-grade pultruded tubes without hoop reinforcement.
Specifically, YT CARBON manufactures roll-wrapped carbon tubes (ID 10mm to 50mm) with multi-axis 0°/±45° layups for maximum torsional and bending resistance. Furthermore, we provide custom length cutting and stepped geometries with pre-machined motor mount holes.
Explore Drone Frame Tubes →

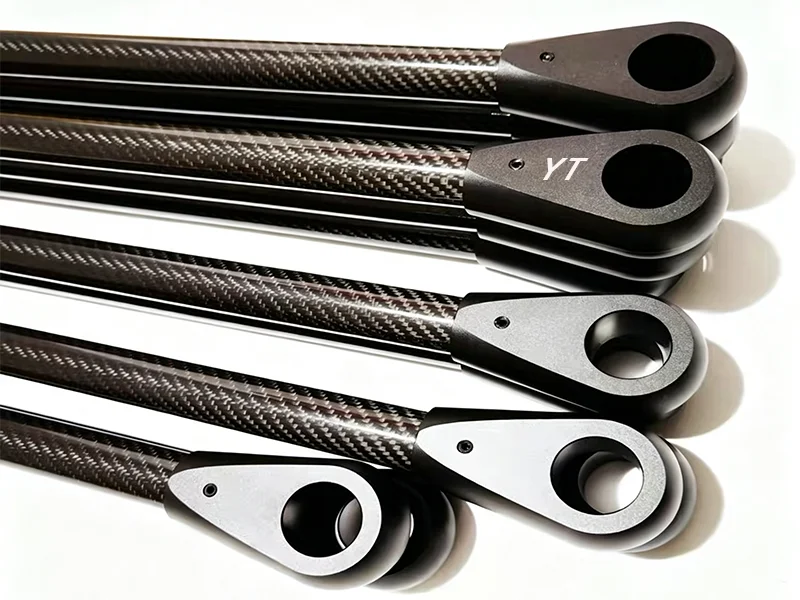

Industrial Rollers & High-Speed Transmission Shafts
Serving printing machinery companies, flexible packaging manufacturers, and textile equipment OEMs.
Engineering Challenges:
- Heavy steel rollers induce severe centrifugal vibration and noise at high RPMs.
- High rotational mass demands larger motors, driving up energy consumption and bearing wear.
- Continuous operations require strict concentricity to prevent surface runout.
Consequently, our high-precision composite tubes deliver ID/OD concentricity within 0.05mm with large diameters up to 196mm. In addition, we bond metal flanges, bearing seats, and steel shaft extensions directly into the tube ends with structural epoxy.
Explore Industrial Tubes →

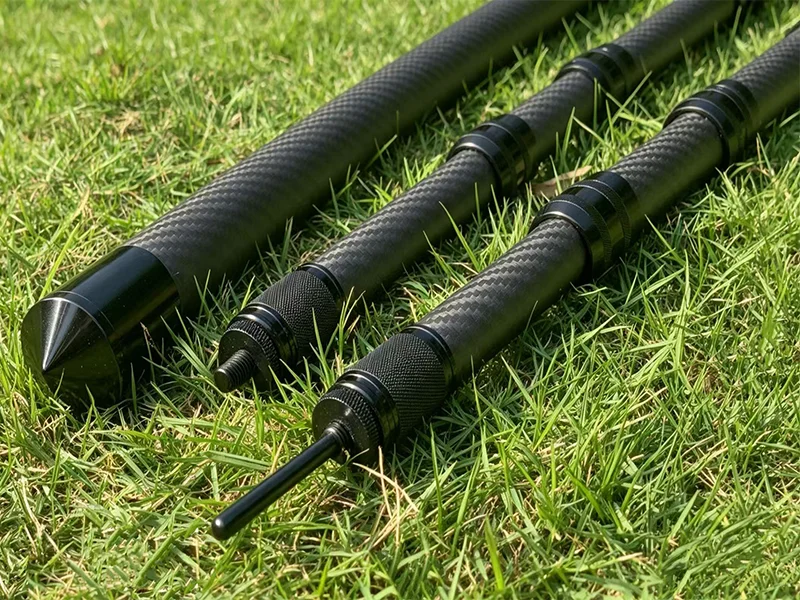

High-End Sports Equipment & Paddle Shafts
Serving performance water sports brands, rowing oar shapers, and competitive fishing rod makers.
Engineering Challenges:
- Paddle shafts must be ultra-lightweight to reduce muscle fatigue over long rowing sessions.
- Athletic performance demands immediate power transfer with every stroke without flex lag.
- Saltwater environments rapidly corrode aluminum shafts and degrade painted coats.
Therefore, we manufacture thin-walled roll-wrapped carbon tubes with customized flexural ratings. For instance, small inner diameters (2.5mm to 10mm) provide lightweight reinforcement cores, while high-gloss clear coats resist saltwater corrosion indefinitely.
Explore Sports Components →

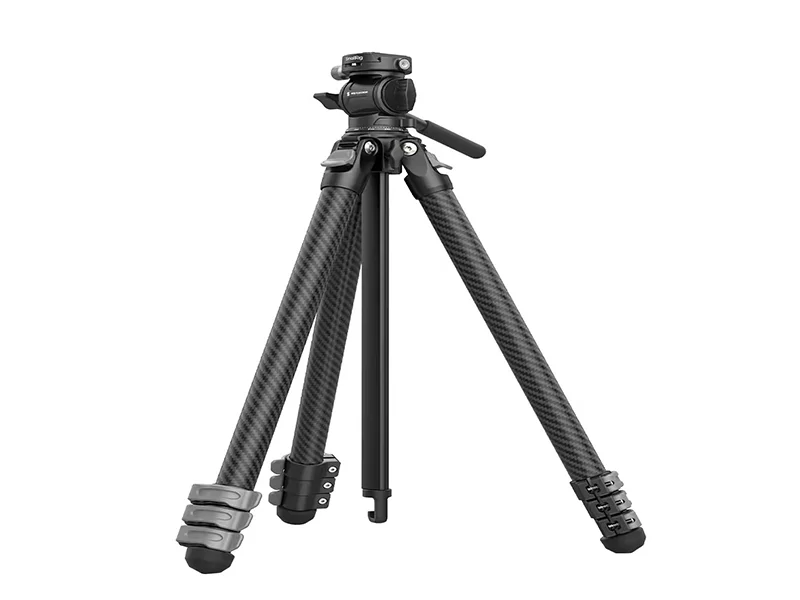

Photography Tripods & Gimbal Stabilizer Tubes
Serving camera tripod brands, studio gimbal designers, and broadcasting equipment integrators.
Engineering Challenges:
- Professional field setups require extreme torsional rigidity to support heavy telephoto lenses.
- Telescoping sections require mirror-smooth interior and exterior walls to prevent binding.
- High aesthetic standards demand uniform diamond 3K woven cosmetics.
To address this, YT CARBON supplies standard tripod diameters (20mm, 25mm, 28mm, and 30mm ID). Moreover, our nested tube sets fit together with micro-clearance, enabling silky smooth telescoping motion and secure mechanical collar clamping.
Explore Tripod Tubing →

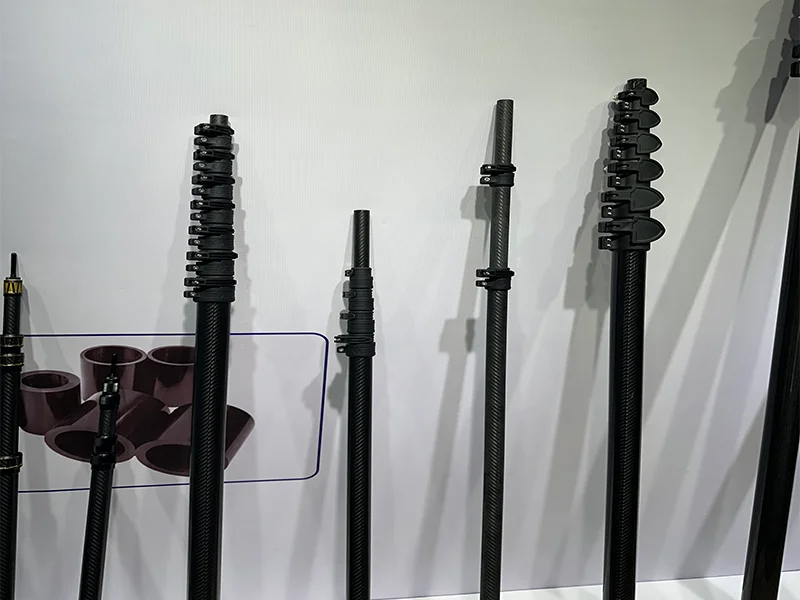

Agricultural Extension Poles & Ergonomic Handles
Serving agricultural spray boom builders, orchard tool manufacturers, and pest control fleets.
Engineering Challenges:
- Heavy fiberglass spray poles cause excessive arm fatigue during long shifts in orchards.
- Traditional wooden handles absorb moisture, swell, and rot over time.
- Long extension poles require rigid multi-section interlocking to prevent mid-span sagging.
Accordingly, we supply cost-effective pultruded and roll-wrapped tubes engineered for outdoor durability. Furthermore, our composite poles are 40% lighter than fiberglass while providing complete resistance to agricultural chemicals, moisture, and intense UV exposure.
Explore Utility Poles →

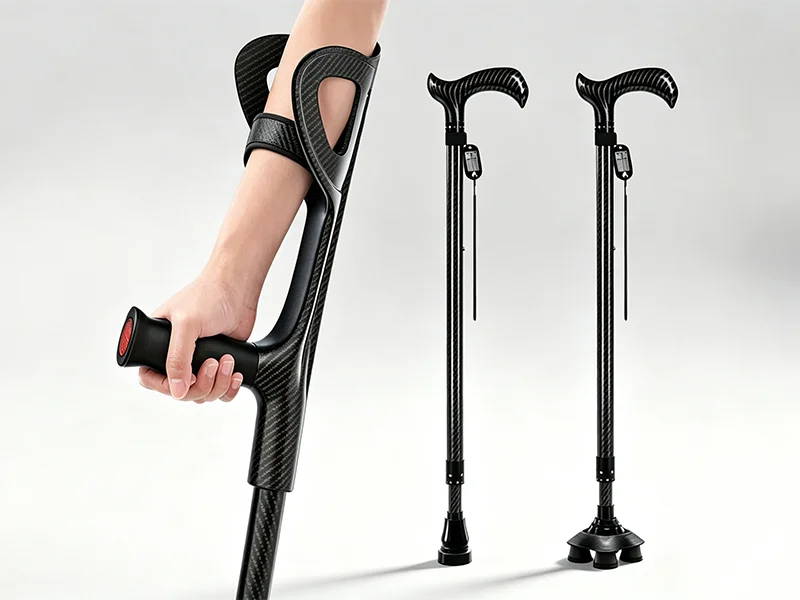

Radiolucent Medical Devices & Automotive Tubes
Serving medical imaging device OEMs, prosthetic limb fabricators, and automotive aftermarket tuners.
Engineering Challenges:
- Surgical and imaging equipment requires strictly radiolucent and non-magnetic materials.
- Prosthetic pylons must combine featherlight comfort with high flexural fatigue endurance.
- Engine bay ducting demands custom cross-sections and elevated thermal resistance.
Consequently, YT CARBON engineers X-ray transparent carbon tubes with high biocompatibility. In addition to standard round tubes, we fabricate custom oval, square, and rectangular cross-sections with high-temperature epoxy systems up to 180°C.
Explore Medical & Custom Tubes →
Why Engineering OEMs Choose YT CARBON Tubing
Direct factory pricing, extensive mandrel tooling, and precision centerless finishing in Longgang, Shenzhen.
Complete Size Spectrum
Our internal mandrel inventory covers ID 2.5mm to 196mm with lengths up to 4 meters. Therefore, you eliminate expensive upfront tooling fees.
Tight Geometric Tolerances
Equipped with centerless wet grinding machines. Consequently, we maintain ID/OD concentricity within 0.05mm and wall thickness within ±0.1mm.
Two Proven Processes
We supply roll-wrapped tubes for maximum multi-axis strength as well as pultruded tubes for high-speed, cost-effective volume delivery.
Agile Global Logistics
Standard tube samples ship in 3 business days. In addition, volume production batches ship securely in reinforced crates within 7-10 days.
Frequently Asked Technical Questions
Engineering guidance on inner diameter sizing, process selection, and metal hardware bonding.
What inner diameter sizes do you manufacture?
We manufacture carbon fiber tubes with inner diameters ranging from 2.5mm to 196mm, covering all standard integer millimeter increments. For drone frame arms, the most popular sizes range from 10mm to 30mm ID. For heavy industrial transmission rollers, we manufacture large diameters up to 196mm ID. Custom mandrel diameters can also be fabricated rapidly upon request.
What is the difference between roll-wrapped and pultruded tubes?
Roll-wrapped tubes are manufactured by wrapping carbon prepreg plies around a mandrel and curing under pressure. Consequently, they provide superior torsional stiffness, crush strength, and cosmetic 3K surface patterns. In contrast, pultruded tubes pull continuous unidirectional fibers through a heated die, offering high longitudinal stiffness at a lower cost. We recommend the optimal process based on your specific load requirements.
Can you manufacture nested multi-section telescopic tubing?
Yes, absolutely. We manufacture precisely calibrated nested tube sets designed specifically for smooth telescoping extension. Specifically, our engineers control the micro-clearance between nested stages to ensure secure mechanical collar locking without binding or loose radial play across 2-stage to 8-stage configurations.
What is the maximum continuous length you can supply?
Our standard continuous tube length is 4,000mm (4 meters) in a single piece. Furthermore, for applications requiring extended reach, we supply internal reinforcement sleeves and precision bonding collars to join multi-meter segments seamlessly in the field.
Can you bond metal end fittings, flanges, and threaded connectors?
Yes. We provide integrated secondary assembly services, bonding aluminum, stainless steel, or brass connectors (such as threaded inserts, bearing journals, and quick-release clamps) using aerospace-grade structural epoxy.
