Proven Engineering: B2B Case Studies

Explore how Shenzhen Yuantan New Materials Technology Co., Ltd. (YT CARBON) solves rigorous mechanical challenges for aerospace, industrial automation, robotics, and consumer tech sectors globally through direct-mill advanced composites.

Oversized High-Flatness Carbon Fiber Sheets for Aerospace Jigging

Challenge:

A European aerospace systems manufacturer required high-flatness structural backing plates. The component mandated zero internal delamination across a massive surface profile, exceeding standard commercial hot-press processing limits.

Our Solution:

Leveraging our specialized 1,000 m² sheet pressing mill, we fabricated a continuous, seamless single-piece carbon fiber sheet utilizing advanced T700 prepreg carbon matrices. Cured under rigid atmosphere governance inside our industrial autoclave chambers.

The Result:

Delivered an oversized plate with a mirror-finish surface. Deflection rate remained below 0.05mm across the matrix, fulfilling aerospace structural compliance. Reordered 120 units.

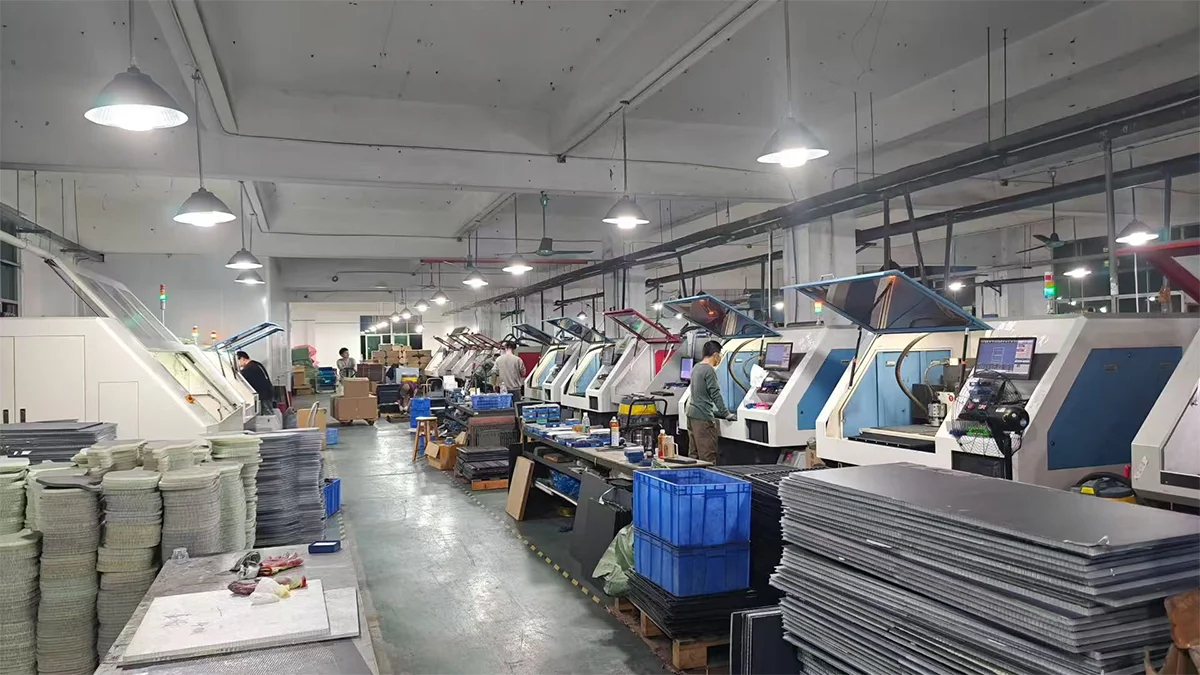

Oversized carbon fiber sheets aerospace production batch cured in autoclave

High-Torsional Rigid Carbon Fiber Tubes for Robotics Inspection Arms

Challenge:

An automated industrial robotics integrator needed custom diameter pultruded or roll-wrapped tubing to serve as long-reach inspection arm booms. Standard commercial options carried heavy tooling fees and failed structural bending limits.

Our Solution:

By deploying our 10,000 m² tubing workshop mold matrix, we matched their exact required dimensions from stock setups, securing zero tooling fees. We configured a cross-directional roll-wrapped layup pattern to secure immense torsional rigidity on these carbon fiber tubes.

The Result:

Mass weight dropped by 68% compared to aluminum predecessors, dramatically lowering robotic servo motor wear. Achieved zero-drift performance tracking.

High torsional carbon fiber tubes and custom OD ID tubing bundles

Precision CNC Custom Carbon Fiber Parts for Semiconductor Handling Grids

Challenge:

A precision semiconductor equipment buyer needed complex custom-shaped processing trays. The part required intricate multi-axis internal stepping slots, with zero tolerance for micro-burrs or fiber breakout under cleanroom clean-air conditions.

Our Solution:

We loaded the client's native STEP CAD file straight into our 80+ unit precision CNC machining center. Using high-speed specialized composite milling routers, we performed precision routing to manufacture these intricate custom carbon fiber parts.

The Result:

Secured micro dimensional tolerances of ±0.03mm. Every routed edge underwent edge-seal treatments, ensuring zero carbon particulate dusting during high-speed vacuum wafer sorting operations.

Precision CNC machined custom carbon fiber parts with micro tolerances

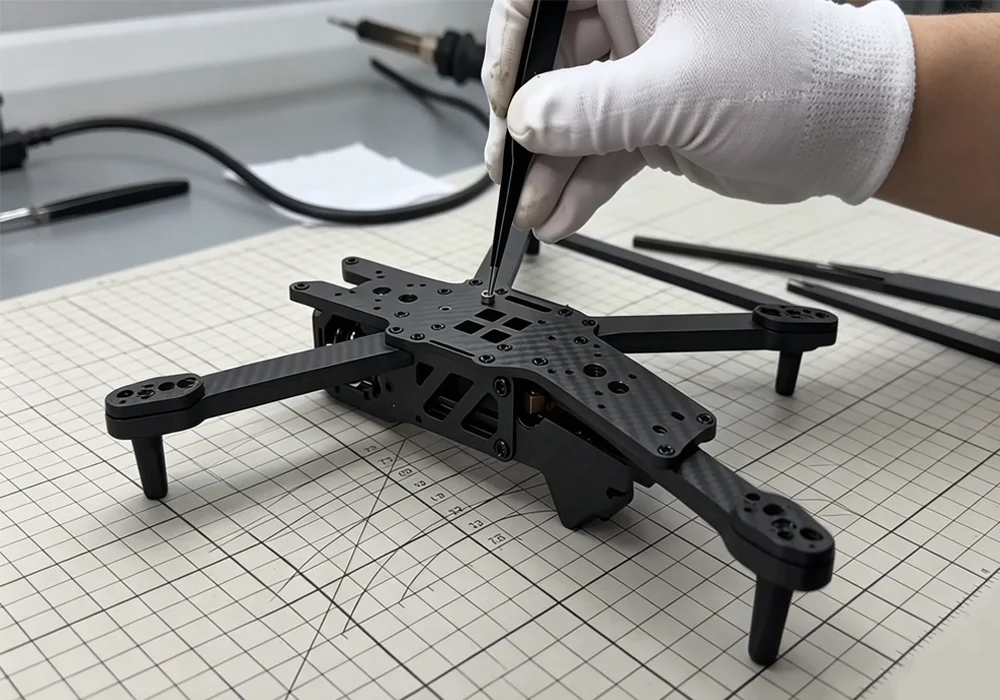

Heavy-Payload 18-Inch Carbon Fiber Drone Frames for Agricultural Logistics

Challenge:

An industrial drone manufacturer faced high structural fatigue failures on their large multirotor quadcopter arms during maximum payload takeoff weights. They required high-volume tactical scaling without assembly bottlenecks.

Our Solution:

Our 5,000 m² UAV drone plant re-engineered the arm bracket intersections, transitioning from standard plates to customized orthogonal integrated molding setups. We deployed full volume throughput scaling for these heavy-payload carbon fiber drone frames.

The Result:

The updated 18-inch industrial structures survived 500+ consecutive hours of severe vibration drop tests, dropping frame assembly overhead costs by 22% via integrated CNC layout design methods.

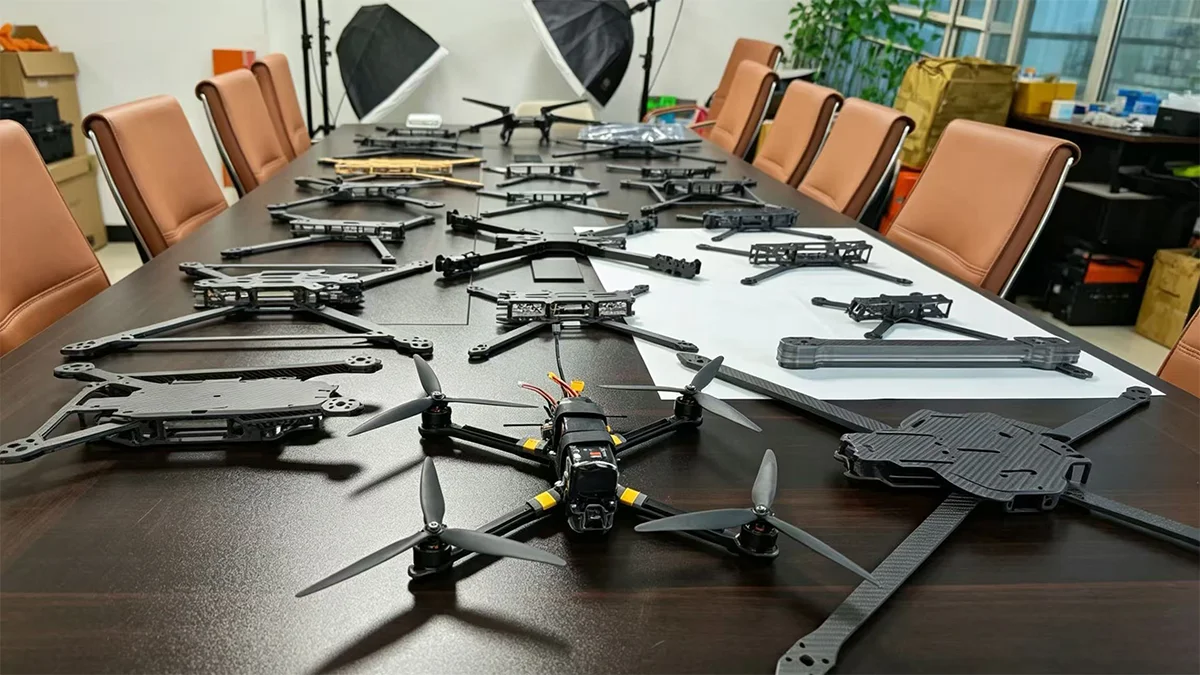

Heavy payload 18 inch industrial carbon fiber drone frames batch sorting

Mirror-Finish Carbon Fiber Automotive Exterior Spoilers for Elite Tuning Brand

Challenge:

An automotive aftermarket racing tuning brand struggled with UV yellowing, surface pinholes, and wave distortions across carbon fiber spoiler mirror covers sourced from standard commercial fiberglass compounders.

Our Solution:

We implemented 100% genuine carbon fiber weaves bonded under high-pressure matching metal molds to create flawless carbon fiber automotive parts. Post-cure, components received dual coats of ultra-clear anti-UV finishes.

The Result:

Delivered an uncompromised high-gloss deep 3D carbon pattern finish. Passed intense xenon arc accelerated weather-ometer UV degradation tests without cracking or fading. Defect rates dropped below 0.3%.

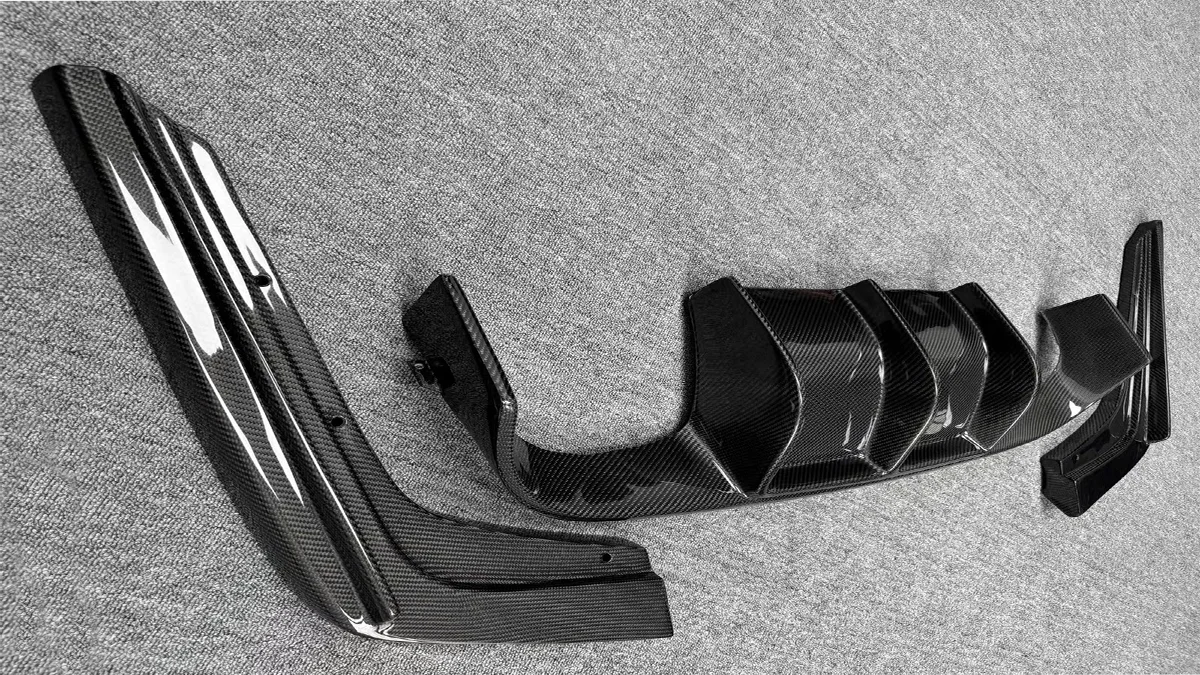

High gloss premium automotive exterior carbon fiber spoilers mirror covers

High-Elasticity Carbon Fiber Cue Shafts & Racket Profiles for Global Sporting Brand

Challenge:

A mass-market sporting athletic brand needed to switch their core product lineup from heavy wooden and composite alloy structures to premium pure carbon fiber configurations to meet consumer demands for higher stroke velocity.

Our Solution:

We developed a tailored variable-thickness internal mandrel layout scheme. By combining ultra-lightweight high-modulus tow fractions, we engineered premium carbon fiber sports goods maximizing energy transfer metrics.

The Result:

Finished sport gear structural weights were cut by an average of 42%, while concurrently raising impact resistance parameters by 30%. Successfully powered a major retail product launch.

Ultra light high performance carbon fiber sports equipment and shafts fabrication

Rain

Founder & CEO

"I founded YT CARBON with a definitive, uncompromised milestone: to eliminate structural delivery gaps for global B2B procurement professionals. We manage every core technical phase inside our own Shenzhen facility—meaning we steer raw carbon prepregs directly through our autoclaves and high-speed multi-axis CNC milling grids. This complete manufacturing chain guarantees that every engineering case documented here maps accurately to your delivered components."
