Product Details

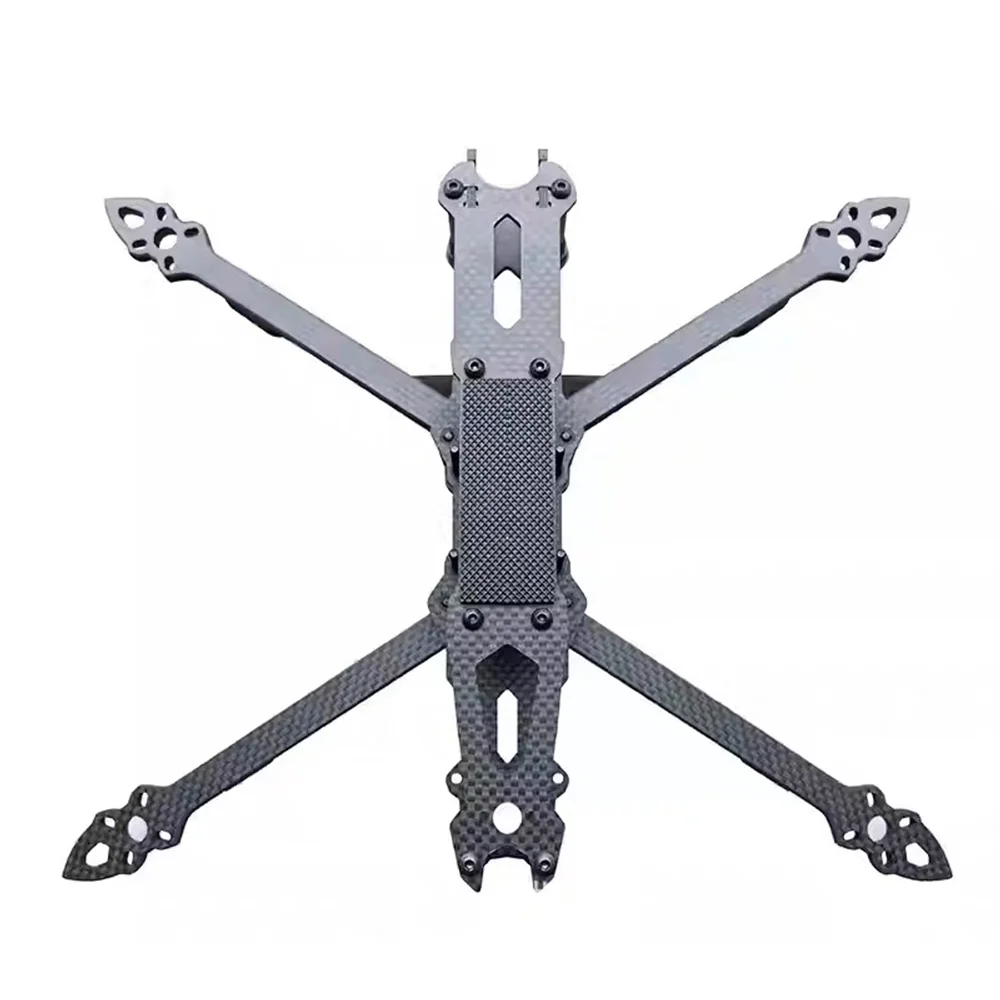

If you’ve been flying 5-inch frames and want to step up to longer flights, heavier payloads, or more stable footage — the MARK4 V2 7 inch FPV carbon fiber frame is built for exactly that. The 295mm wheelbase and H-type layout give you the room and rigidity that long-range and cinematic builds demand. It’s not trying to be a stretched 5-inch. The geometry, arm length, and stack spacing were designed around 7-inch props from the start.

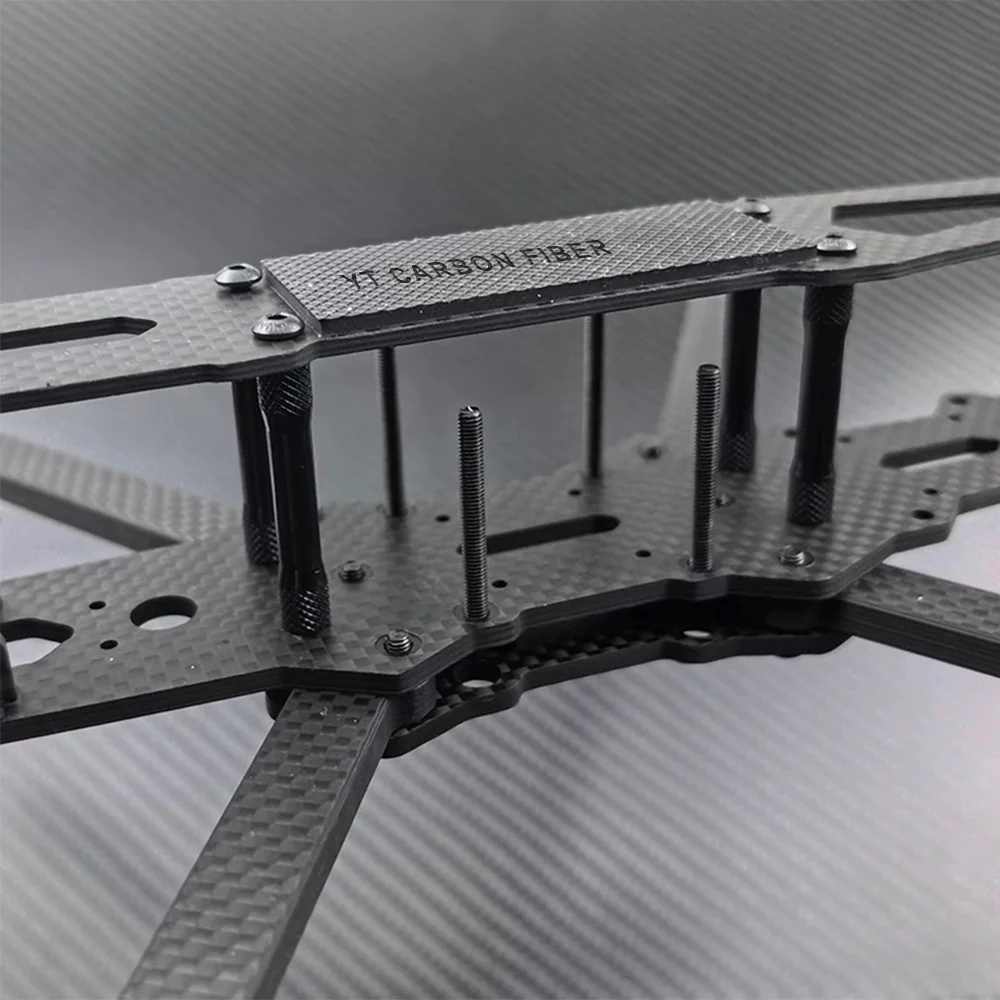

The first thing that catches your eye on this FPV long range frame: the 6mm arms. Most 7-inch frames stop at 4mm or 5mm. Going to 6mm adds roughly 30g but the payoff is real — less arm flex under load means your motors respond cleaner, your flight controller doesn’t fight as much noise, and your footage comes out without that faint jello that kills otherwise great clips. We’ve seen pilots try to fix vibration issues with filters and dampeners when the real fix is just a stiffer arm.
Every arm is cut from our own 3K T300 carbon fiber sheet — we make the sheet, then we machine the arm, all under one roof. That matters because when you buy a frame from a trading company, they’re sourcing sheets from whoever’s cheapest that week. Batch consistency goes out the window. With us, you get the same density, same fiber volume fraction, and same laminate quality on every order. Reorder six months later and it’ll feel like the same frame.

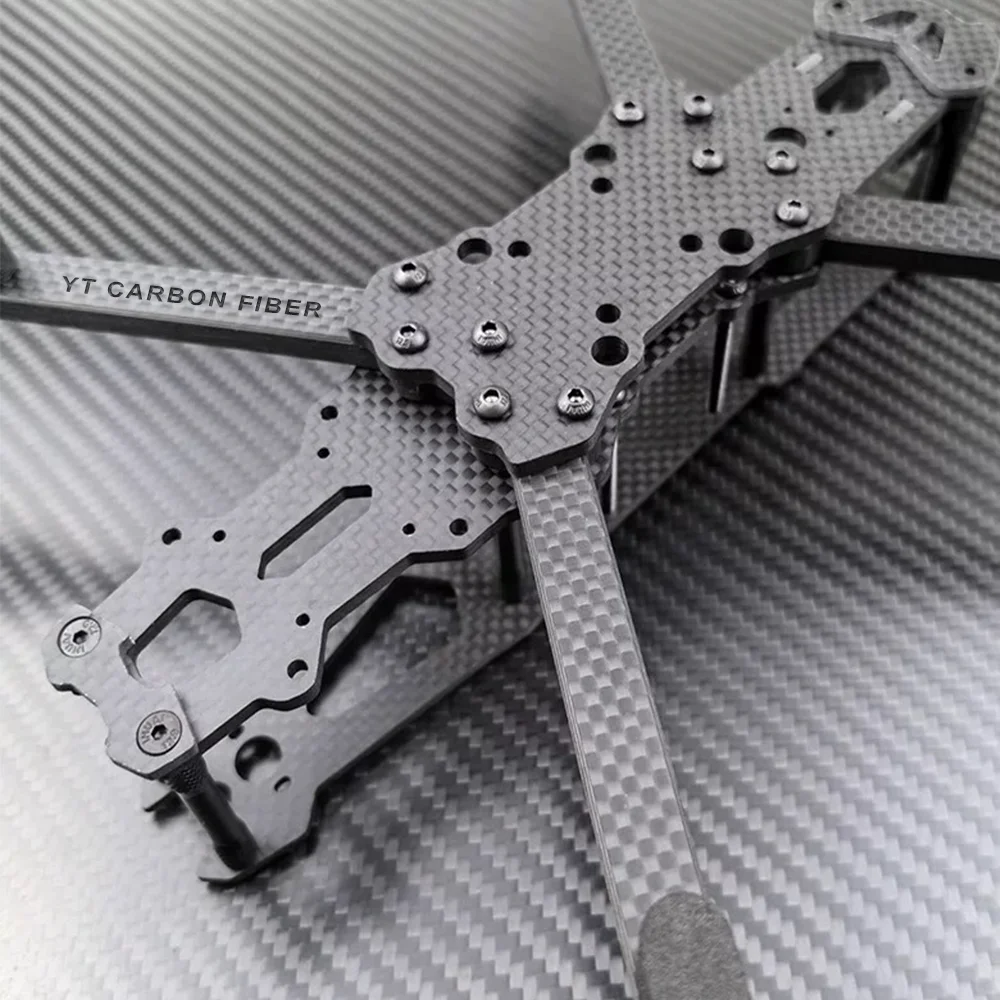

The three-plate stack uses a 3.0mm bottom and middle plate for the structural backbone, with a 2.0mm top plate to save weight where you don’t need max strength. The 2.5mm camera side plates are worth calling out — they hold the camera tight enough that high-frequency vibration doesn’t bleed into your footage. On long flights especially, even a tiny amount of camera mount flex shows up as annoying micro-jello. At 160g total, this 7 inch drone frame holds its own against lighter competitors while being noticeably more solid in the air.
Arm soft mounts come included — they sit between the arm and the frame body to eat motor vibration before it hits your FC. It’s a small detail but it makes a real difference in filter headroom, especially on 6S setups where motor RPM is high. Battery pads and straps are in the box too, so you can build it straight away without hunting for parts.
Specifications
| Property | Value |
|---|---|
| Model | MARK4 V2 7 Inch |
| Wheelbase | 295mm |
| Dimensions | 228 × 267 × 48.75mm |
| Frame Weight | 160g (frame only) |
| Frame Design | H-Type |
| Arm Material | 6mm 3K T300 carbon fiber |
| Bottom / Middle Plate | 3.0mm 3K carbon fiber |
| Top Plate | 2.0mm 3K carbon fiber |
| Side Plate | 2.0mm 3K carbon fiber |
| Camera Side Plate | 2.5mm 3K carbon fiber |
| Prop Size | 7 inch |
| Motor Mount | 16×16mm / 19×19mm |
| FC Mounting | 20×20mm / 30.5×30.5mm |
| Camera Mount | Micro / Nano (adjustable tilt) |

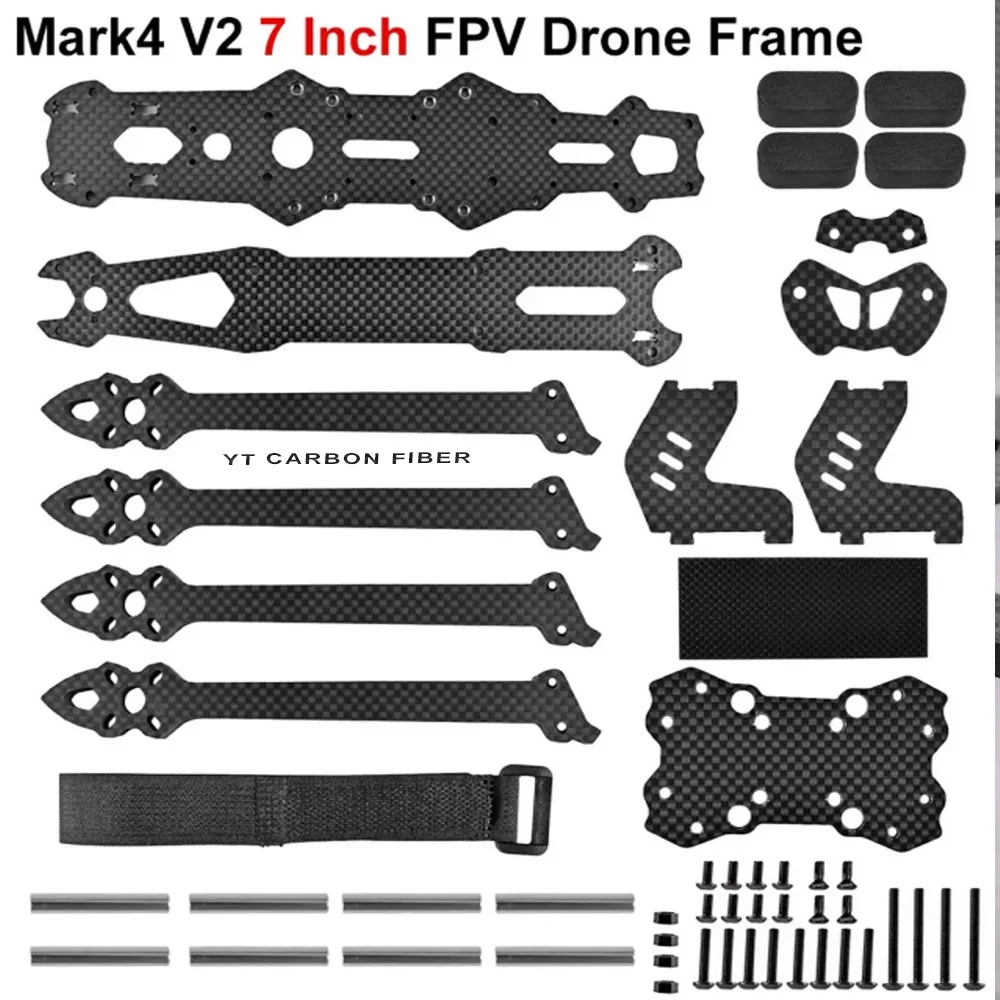

Package Includes
- Full set of 3K carbon fiber plates (arms, bottom/middle/top plates, side plates, camera plates)
- Aluminum standoffs
- Stainless steel screws and hardware
- Arm soft mounts (vibration damping)
- Battery pads
- Battery straps
Applications
- Long-range FPV — 7-inch props on 6S give you the efficiency to fly out miles and come back. This FPV long range frame won’t let you down when you’re 3km from home with 15% battery.
- Cinematic filming — The 2.5mm camera plates and rigid H-type structure kill jello before it starts. Mount your GoPro, hit record, and focus on the flying.
- Payload carrying — 6mm arms don’t bend when you load up with big batteries and extra gear. Works well as a heavy lift drone frame for delivery or sensor payloads.
- Survey and inspection — Stable platform for commercial work where you need repeatable, predictable flight behavior on every sortie.
Why Choose YTCarbon
- We make our own CF sheet — From raw fiber to finished plate, it all happens in our factory. No trading company markup, no mystery material, no batch-to-batch surprises.
- CNC cut with tight tolerances — Every hole, every cutout, every edge. Chamfered internal corners so cracks don’t start where they always start on cheap frames.
- No MOQ — Buy one frame for your personal build or a thousand for distribution. Same carbon fiber drone frame, same quality, same attention.
- ISO 9001 certified — Our quality system is audited. Material Test Reports are available when you need them for your own compliance paperwork.
- Sample before you commit — We’ll send you a frame at cost. Inspect it, fly it, beat it up. Then decide if you want to place a real order.
Certifications
Every frame we ship is backed by documented quality credentials. We hold ISO 9001 certification for our quality management system, and our carbon fiber materials carry RoHS and CE compliance — which matters if you’re reselling into the EU or supplying customers who need traceable documentation. The certificates below cover our facility and materials. Need a copy for your records? Just ask and we’ll send the PDF.
How We Manufacture Your Frame
A lot of frame sellers can’t tell you how their product gets made because they don’t make it — they buy it from a supplier who buys it from another supplier. We’re different. The process below shows what actually happens inside our facility: raw 3K T300 carbon fiber comes in, we lay it up and press it into sheet, then our CNC machines cut every plate and arm to spec. After machining, each part gets a visual and dimensional inspection before it goes into the package. The flowchart lays it out step by step.
Frequently Asked Questions
Need a Custom Carbon Fiber Drone Frame?
We offer custom laser engraving, colored hardware, modified arm thickness, and OEM branding. Our engineering team can accommodate any structural change — contact us with your requirements.
