Product Details

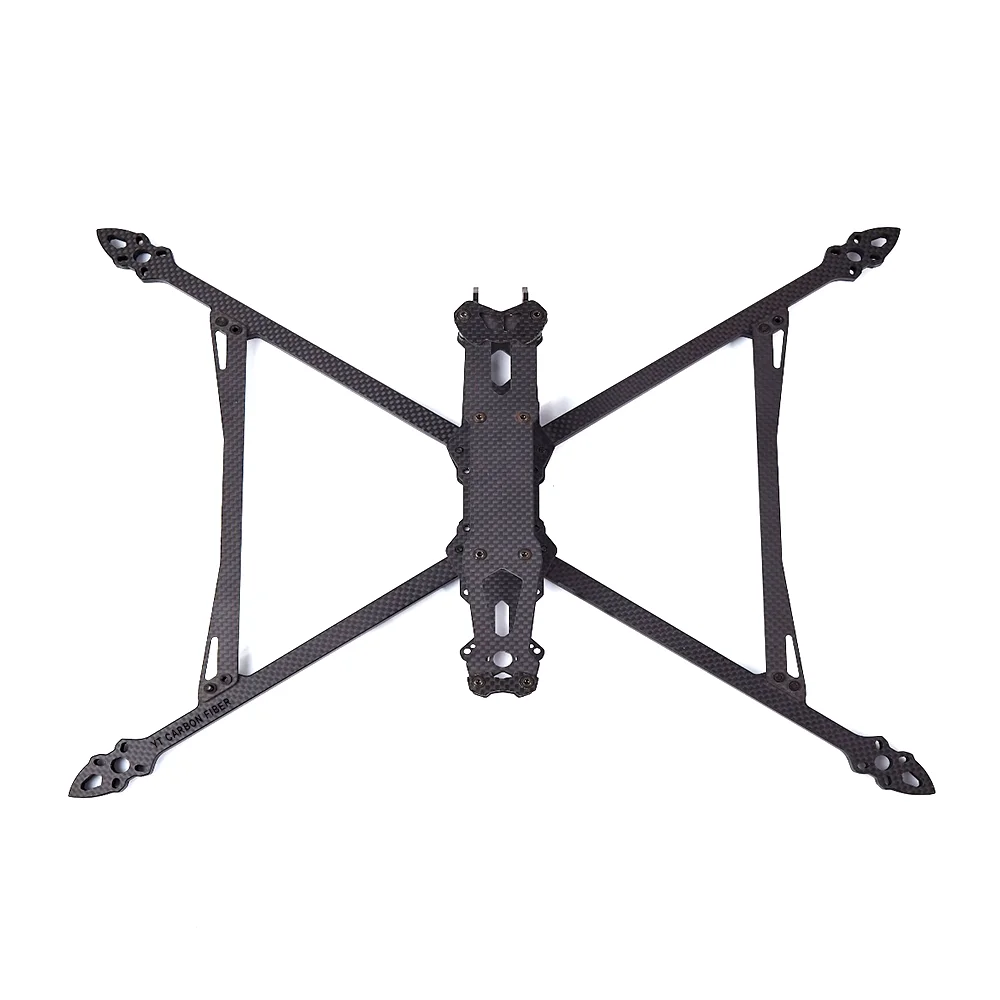

When your build needs maximum payload capacity, longest endurance, and a platform that doesn’t flinch under heavy gear — the MARK4 V2 10 inch FPV carbon fiber frame is where you land. The 424mm wheelbase gives you room for 10-inch props, which means serious thrust and efficiency. This isn’t a scaled-up 7-inch. The frame geometry, arm thickness, and plate stack are all designed for what 10-inch builds actually demand: rigidity under heavy load and zero flex when you’re carrying expensive camera gear 5km from home.

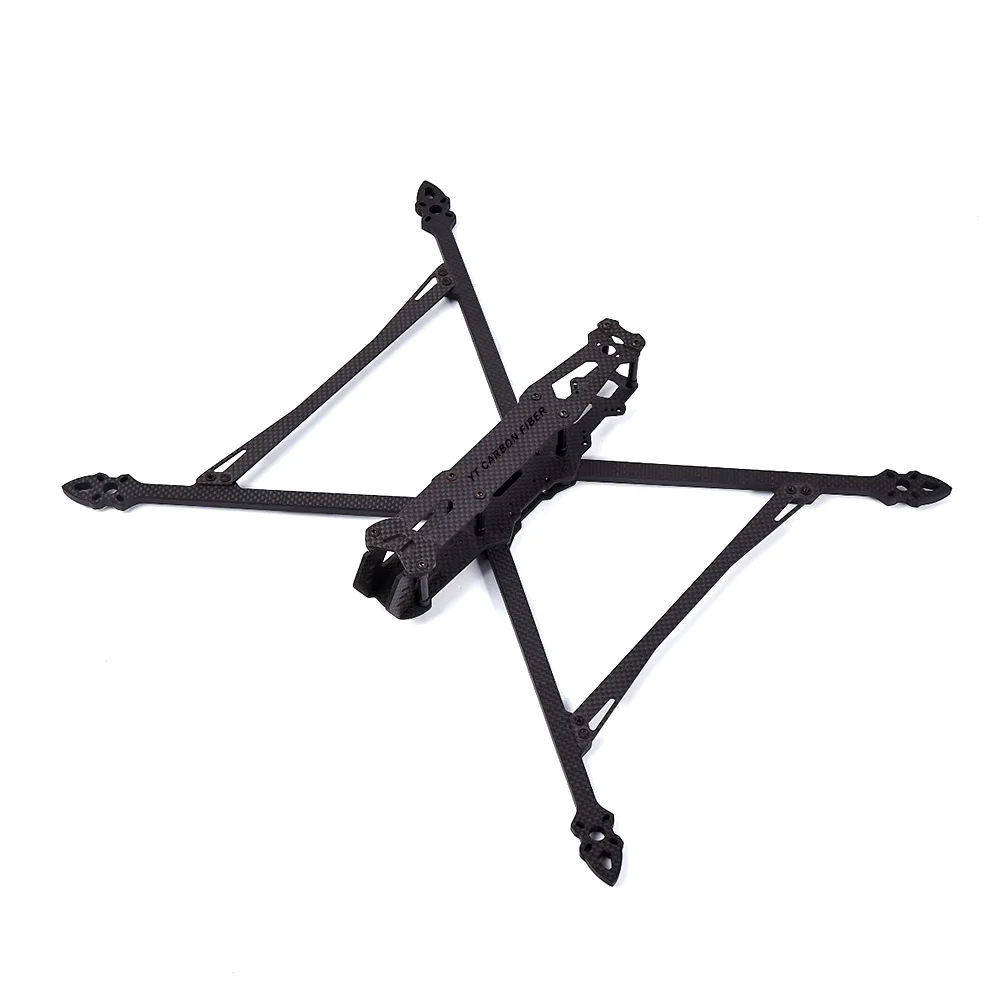

The 7mm arms are the headline here. Every other size in the MARK4 V2 line uses 6mm, but the 10-inch gets 7mm 3K T300 carbon fiber arms — because bigger props and heavier batteries generate more torque and more arm flex. On a 10-inch frame, arm flex isn’t just a flight performance issue. It shows up in your footage as jello, it messes with your altitude hold, and on hard landings it’s the difference between a bent arm and a broken one. We went 7mm because the 20–30g weight penalty is worth it for what this frame is asked to carry. And since we press our own carbon fiber sheet and cut every arm in-house, that 7mm thickness is consistent across every unit and every reorder.

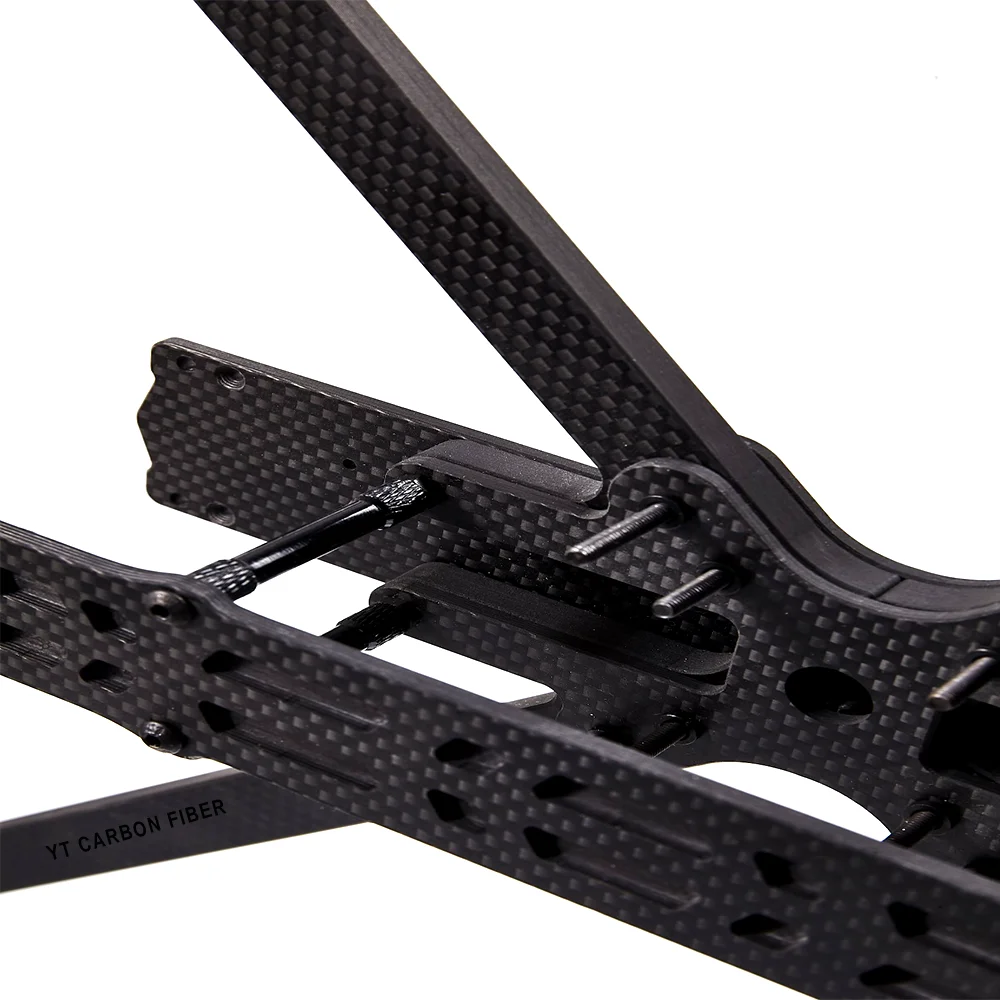

The side plates step up to 2.5mm — thicker than the 2.0mm used on the 7 and 8-inch versions. On a frame this size, the side plates take more lateral stress from arm-mounted motor torque, and the extra thickness prevents the micro-vibrations that kill smooth footage on long cinematic flights. Camera side plates stay at 2.5mm to keep the camera mount rock-solid. The bottom and middle plates are 3.0mm for the structural backbone, with a 2.0mm top plate to save weight where it doesn’t compromise strength.
At 235g, this 10 inch drone frame is built to carry. The stack accommodates 30.5×30.5mm and 20×20mm flight controllers with room for GPS, digital VTX, and larger ESCs. Motor holes fit both 16×16mm and 19×19mm patterns. Arm soft mounts, battery pads, straps, and full hardware are included — everything you need to build a serious long-range or heavy-lift rig.
Specifications
| Property | Value |
|---|---|
| Model | MARK4 V2 10 Inch |
| Wheelbase | 424mm |
| Dimensions | 303 × 373 × 50.1mm |
| Frame Weight | 235g (frame only) |
| Frame Design | H-Type |
| Arm Material | 7mm 3K T300 carbon fiber |
| Bottom / Middle Plate | 3.0mm 3K carbon fiber |
| Top Plate / Brace | 2.0mm 3K carbon fiber |
| Side Plate | 2.5mm 3K carbon fiber |
| Camera Side Plate | 2.5mm 3K carbon fiber |
| Prop Size | 10 inch |
| Motor Mount | 16×16mm / 19×19mm |
| FC Mounting | 20×20mm / 30.5×30.5mm |
| Camera Mount | 19mm micro FPV camera |

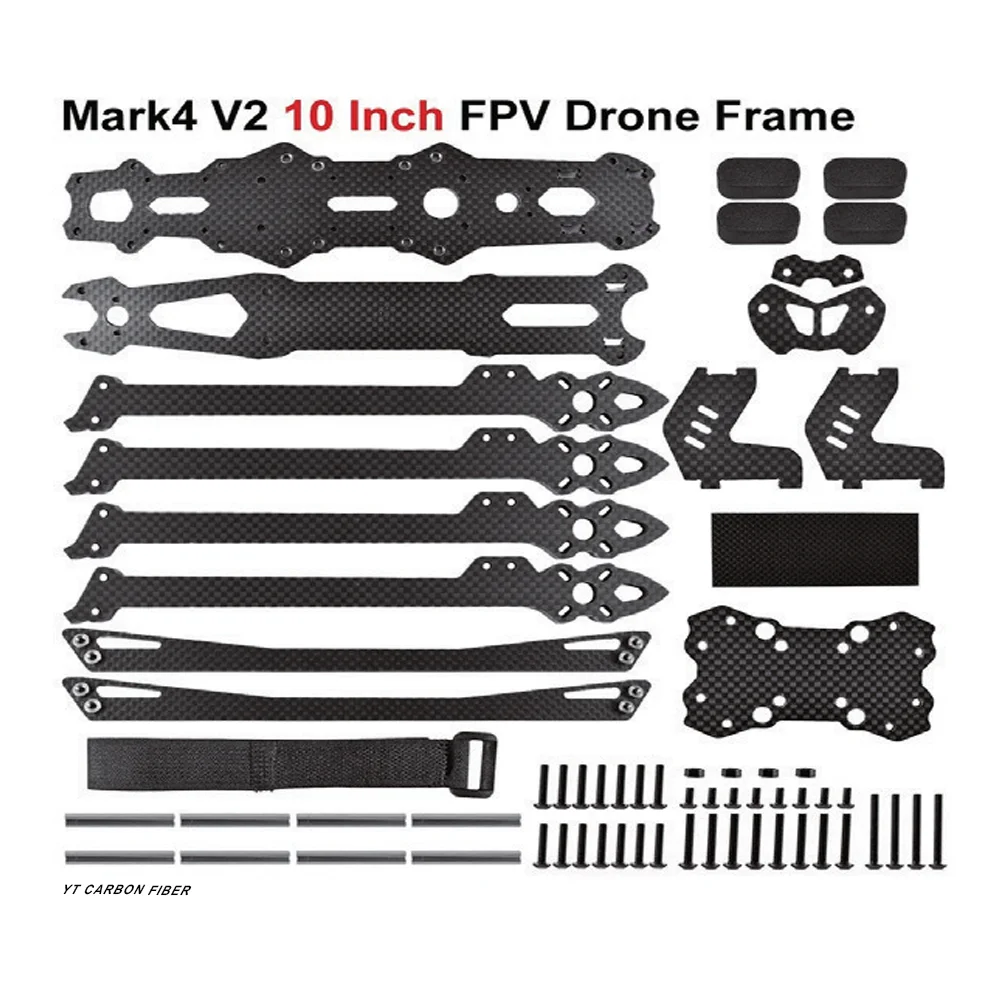

Package Includes
-
- Full set of 3K carbon fiber plates (arms, bottom/middle/top plates, side plates, camera plates)
- Aluminum standoffs
- Stainless steel screws and hardware
- Arm soft mounts (vibration damping)
- Battery pads
- Battery straps
Applications
- Ultra-long-range FPV — 10-inch props on 6S give you the most efficient thrust-to-power ratio in FPV. Fly 10km+ missions and come back with battery to spare. This 10 inch long range frame is built for pilots who take distance seriously
- Professional cinematography — The 7mm arms and 2.5mm side plates deliver a vibration-free platform that keeps your footage clean. Carry a full-size action cam or gimbal setup without jello ruining your takes
- Heavy-lift and delivery — 424mm wheelbase and reinforced structure handle large battery packs and payload modules. Ideal as a heavy lift drone frame for prototype delivery systems or agricultural sensor rigs
- Industrial inspection — Stable, predictable flight behavior for commercial survey, power line inspection, and infrastructure monitoring where reliability matters more than agility
Why Choose YTCarbon
- Factory-direct, not resold. We manufacture our own 3K carbon fiber sheet from raw fiber, then CNC machine every arm and plate in the same facility. Buying this 10 inch carbon fiber drone frame from us means you skip the trading company markup and get consistent material quality batch after batch
- Tight CNC tolerances. Every mounting hole, every edge, every cutout. Internal corners are chamfered to prevent the crack propagation that ruins cheap frames after a season of hard flying
- Zero MOQ. One frame for testing, a hundred for your product line, a thousand for distribution. Same carbon, same process, same quality control on every order
- ISO 9001 certified quality. Independently audited quality system. Material Test Reports available when your customers or regulators ask for traceable documentation
- Sample first, order later. Get a frame at cost. Build it, fly it, stress-test it. Then decide on volume with real-world data, not spec sheets
Certifications
Every frame we ship is backed by documented quality credentials. We hold ISO 9001 certification for our quality management system, and our carbon fiber materials carry RoHS and CE compliance — which matters if you’re reselling into the EU or supplying customers who need traceable documentation. Need a copy for your records? Just ask and we’ll send the PDF.
How We Manufacture Your Frame
A lot of frame sellers can’t tell you how their product gets made because they don’t make it — they buy it from a supplier who buys it from another supplier. We’re different. The process below shows what actually happens inside our facility: raw 3K T300 carbon fiber comes in, we lay it up and press it into sheet, then our CNC machines cut every plate and arm to spec. After machining, each part gets a visual and dimensional inspection before it goes into the package.
Frequently Asked Questions
+ Why does the 10-inch frame use 7mm arms instead of 6mm?
+ What battery should I run on this 10 inch FPV carbon fiber frame?
+ Can this frame handle digital FPV systems like DJI O3?
+ What motors work best with this 10-inch frame?
+ Do you support OEM branding and custom frame modifications?
Need a Custom 10 Inch Carbon Fiber Frame?
We offer custom arm thickness, laser engraving, colored hardware, and OEM branding. Our engineering team can accommodate any structural change — contact us with your requirements.
