Forged Carbon Fiber Sheet

Product Details

No Weave, No Repeat — Every Sheet Is One of a Kind

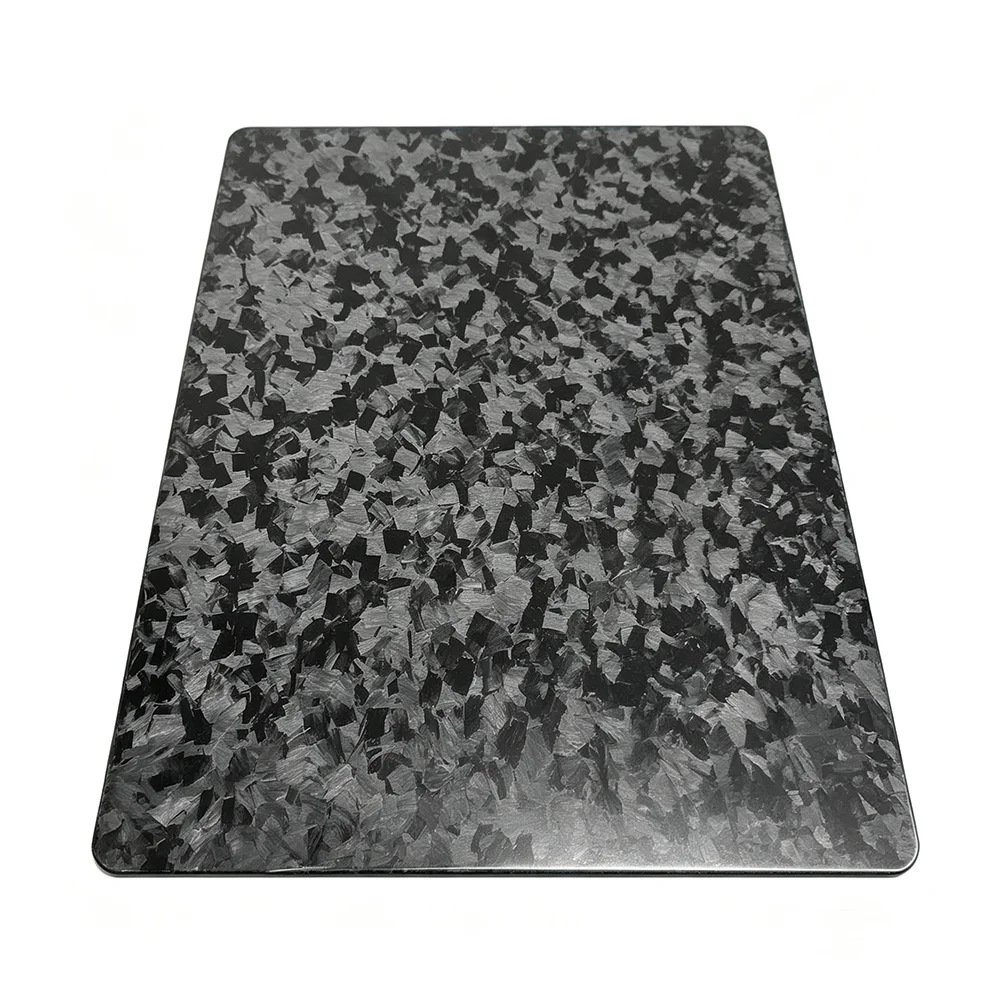

A forged carbon fiber sheet doesn’t have a weave — and that’s the whole point. Instead of woven fabric laid up in neat rows, forged CF is made from chopped carbon fiber tow compressed under high pressure with epoxy resin. As a result, the fibers orient randomly during compression, creating a flowing, marble-like pattern that’s different on every single piece. Indeed, no two sheets look alike. If you want carbon fiber that stands out instead of blending in, this is it.

Chopped Tow, Molded Under Pressure

The manufacturing process is fundamentally different from woven sheet production. Specifically, we take chopped 3K carbon tow — typically 30-50mm lengths — and distribute it evenly across the mold cavity. Then, epoxy resin is added, and the whole stack gets pressed at high temperature and pressure. Because of this random fiber orientation, there’s no 0° or 90° direction. In other words, strength is more isotropic than woven laminates — distributed across all axes rather than concentrated along the weave. Therefore, for parts that take load from multiple directions without a preferred axis, this chopped fiber construction can actually outperform a traditional balanced weave layup.

Dark Marble Look That Sells

Moreover, the visual effect is what sells it. Under glossy finish, the random fiber pattern looks like dark marble — organic, flowing, impossible to replicate exactly. For example, luxury car brands started using forged CF for interior trim because it looks more exclusive than the same twill pattern everyone recognizes. Similarly, watch brands use it because no two dials are identical. Consumer electronics brands choose it because it photographs differently from every angle. After all, the pattern isn’t printed or embossed — it’s the actual fiber orientation frozen in the resin. Finally, we offer forged carbon board in matte or glossy finish, thickness from 0.5mm to 50mm+, standard sizes up to 1000×1000mm, custom cuts to 3m×8m, and CNC machining with ±0.05mm tolerance.

Specifications

Applications

• Auto interiors — Console, dashboard, steering wheel and door trims; its exclusive marble pattern changes visually under glossy finish
• Premium consumer goods — Watches, pens, phone cases and headphones; unique textures make each item distinct and justify premium prices
• Architecture & decor — Desks, wall panels, elevator interiors and retail fixtures; stone-style flowing patterns elevate commercial spaces
• Sports gear — Bicycles, skis and rackets; stylish look plus strong multi-directional durability
• Structural parts — Random fiber layout delivers more even load distribution than woven CF for multi-axis stress components
• Custom machining — Send your DXF or STEP file, we CNC cut forged carbon sheets to ±0.05mm tolerance

Why Choose YTCarbon

• One plant, full control. We press forged carbon sheets from raw chopped tow and CNC machine all parts in-house — no middlemen, no batch variance
• Consistent pattern density. Random doesn’t mean uncontrolled; we manage fiber distribution for even marble patterns with no resin-rich spots or fiber clumps
• 3m × 8m max sheet size. One of China’s largest single-piece press capabilities — seamless panels for architecture and large automotive surfaces

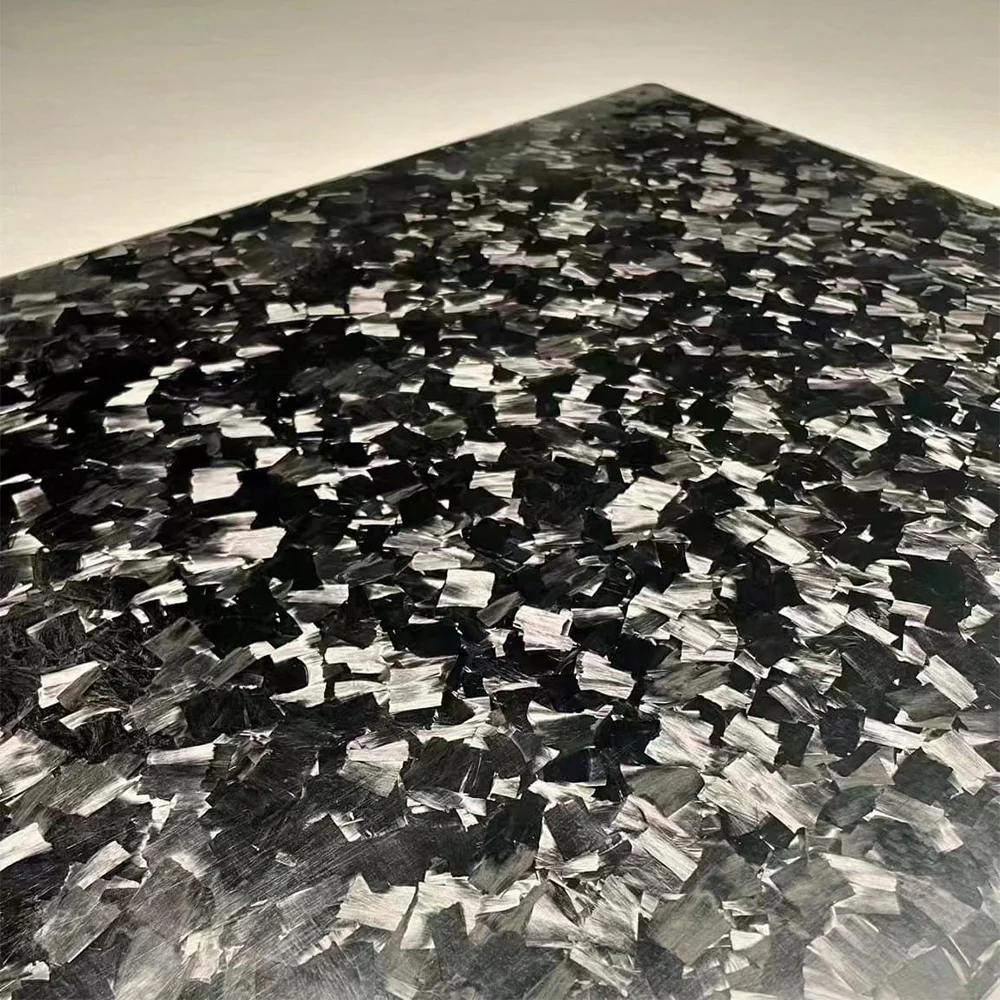

• Both matte and glossy. Matte for subtle stone-like texture, glossy for full marble depth; satin finish also available on request
• No MOQ. Order one sample sheet or a full container — same quality, same inspection process
• ISO 9001 certified. Independently audited QMS; Material Test Reports available for full traceability

Certifications

Every forged carbon sheet we ship carries documented quality credentials. For instance, our facility holds ISO 9001 certification for quality management. In addition, our carbon fiber materials are RoHS and CE compliant — required if you’re selling into the EU or supplying customers who need traceable material documentation. Need a copy for your records? Just ask and we’ll send the PDF.

ISO 9001 · RoHS · CE Certified

Production Process

Every forged carbon fiber sheet is produced in our Shenzhen facility — from raw chopped tow to finished, inspected sheet. Here is our step-by-step process:

1. Tow Chopping — 3K carbon fiber tow cut to 30-50mm lengths for even distribution across the mold
2. Fiber Distribution — Chopped tow weighed and spread evenly across the mold cavity to prevent resin-rich or fiber-clump areas
3. Epoxy Impregnation — Epoxy resin applied and stack assembled with release film for clean demolding
4. Hot Press Curing — Temperature-controlled press cures the panel at 120°C under high pressure for full resin crosslinking
5. Demolding & Trimming — Sheet removed from mold, edges trimmed, and surface inspected for pattern consistency
6. CNC Machining — Optional CNC cutting to custom shapes with ±0.05mm tolerance per your DXF or STEP file

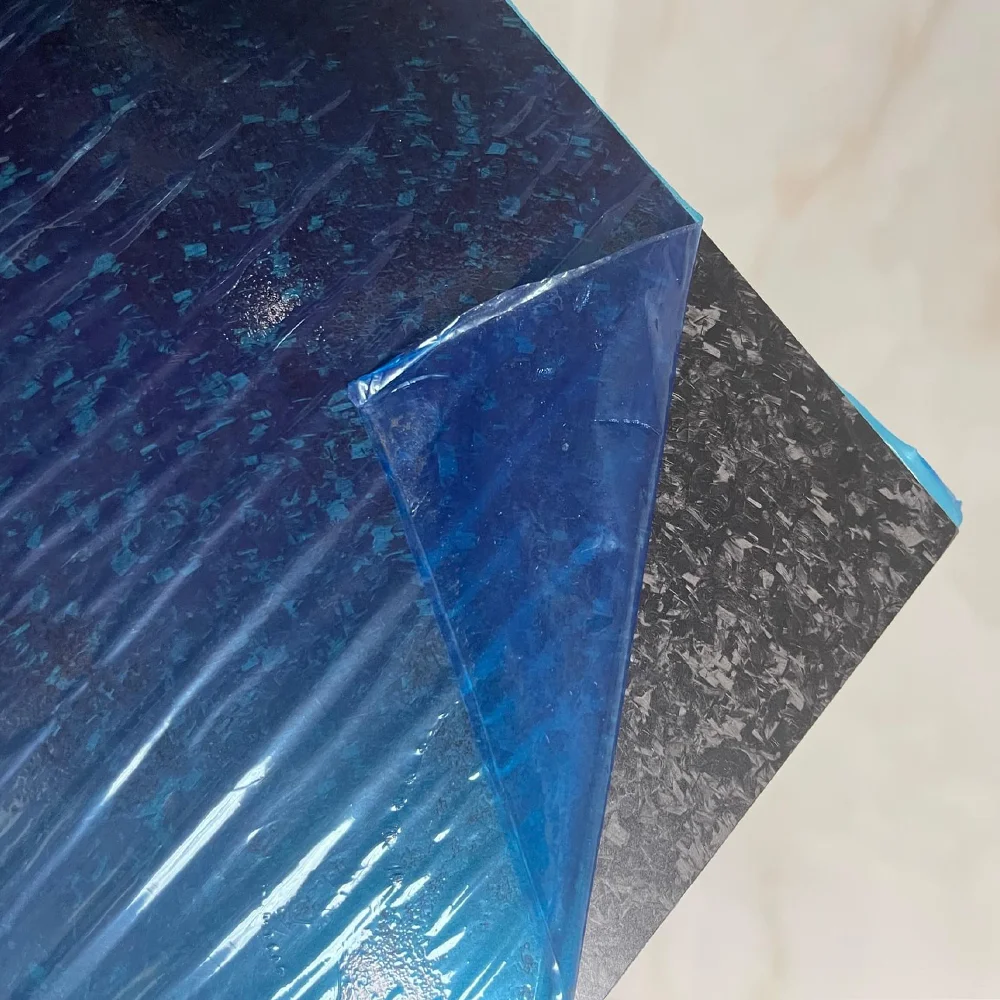

7. Quality Inspection — Dimensional check, surface finish verification, and thickness measurement; protective film applied before packaging

Forged Carbon Fiber Sheet Production Process
