Product Details
Transforming Performance into Brand Identity
A colored carbon fiber sheet achieves what traditional black carbon cannot: it captures attention from across the room. Specifically, whether utilizing a red-tinted resin that makes twill patterns glow or a gold-yellow Kevlar hybrid weave, color transforms a standard composite material into a striking brand statement. Furthermore, automotive tuners and consumer brands rely on colored CF to combine structural strength with high visibility.

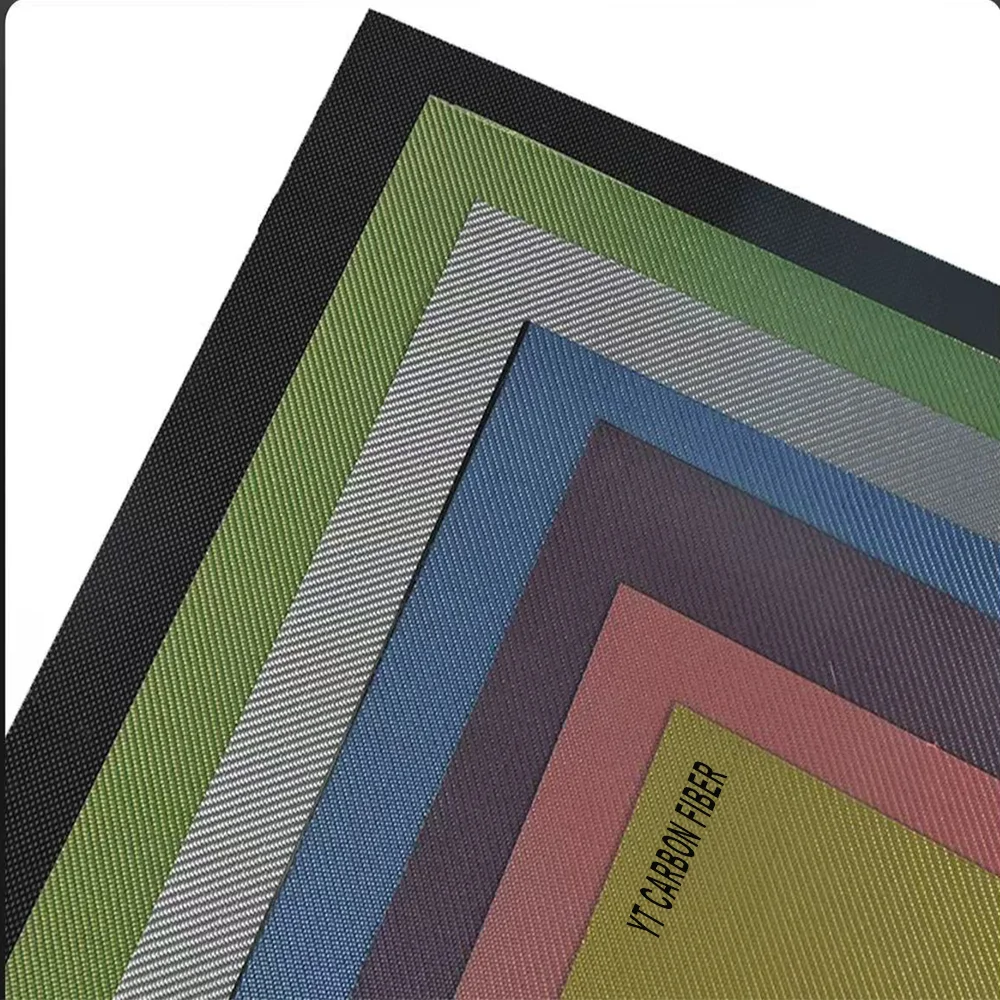

Tinted Resin vs. Kevlar Hybrid Weave
There are two primary methods for adding color. First, tinted resin keeps the carbon fibers black while giving the intervening epoxy a subtle tint that shifts with viewing angles. Second, Kevlar hybrid weaves interlace actual aramid fibers in red, blue, or yellow directly with carbon tows. Consequently, hybrid colors run through the entire thickness, ensuring they never fade or scratch off.
Custom Pantone Matching and Dimension Range

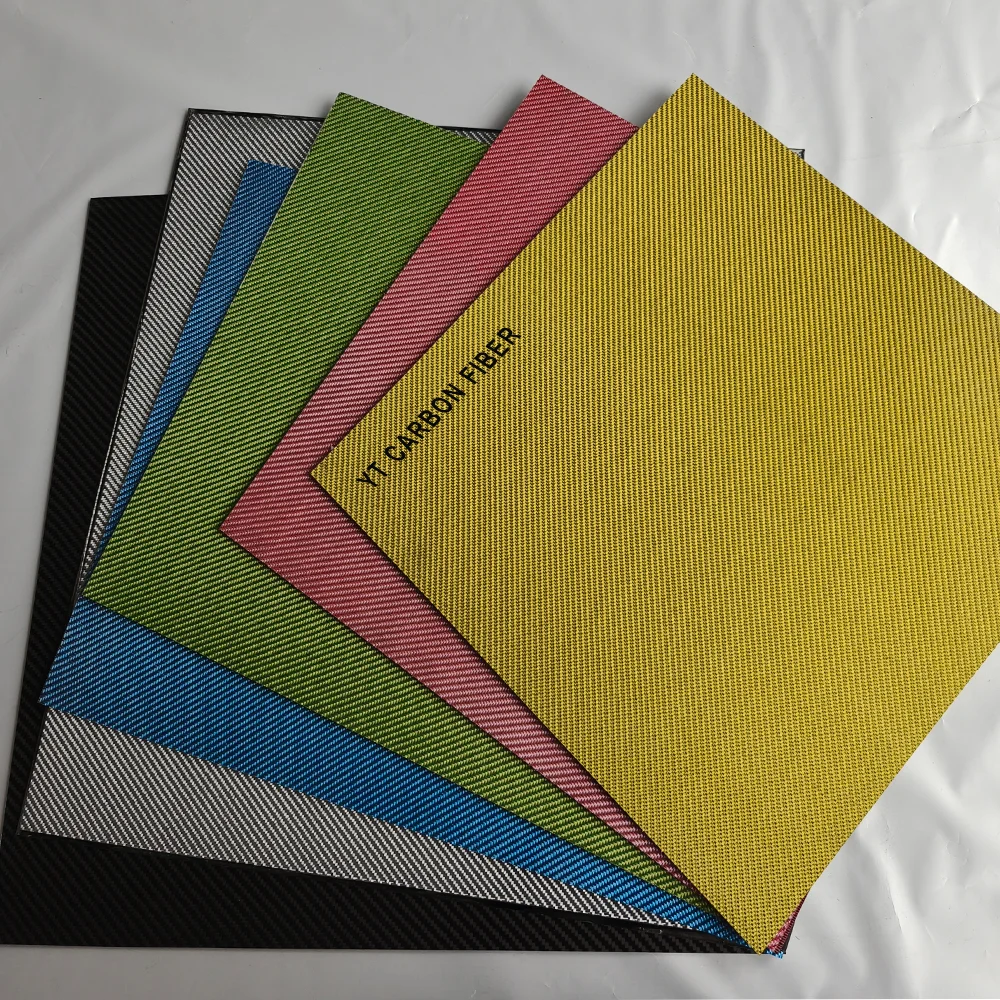

We supply red, blue, green, yellow, and custom Pantone-matched colors across both tinted resin and Kevlar hybrid options. In addition, thicknesses span from 0.5mm to 50mm+, supported by standard stock sizes and custom single-piece cuts up to 3m×8m in matte or glossy finishes.
Specifications
| Specification | Details |
|---|---|
| Material | 3K Toray T300 / T700 / T800 / T1000 carbon fiber + Kevlar aramid (hybrid option) |
| Weave Pattern | 2/2 Twill / Plain / Hybrid (CF + Kevlar) |
| Color Options | Red / Blue / Green / Yellow / Custom Pantone match |
| Color Method | Tinted epoxy resin / Kevlar hybrid weave |
| Thickness | 0.5mm – 50mm+ (custom) |
| Max Sheet Size | 3000mm × 8000mm |
| Standard Sizes | 500×500mm / 600×600mm / 1000×1000mm |
| Custom Sizes | Available on request |
| Fiber Volume Fraction | 55-63% |
| Resin System | Tinted epoxy (120°C cure) |
| Surface Finish | Matte / Glossy |
| Density | 1.50-1.60 g/cm³ |
| Tensile Strength | ≥ 3000 MPa (tinted) / ≥ 2800 MPa (hybrid) |
| Flexural Strength | ≥ 1000 MPa (tinted) / ≥ 900 MPa (hybrid) |
| Operating Temperature | -40°C to 120°C |
Applications
- Automotive and motorsport — Interior trim and mirror covers feature brand-matching colors, elevating visual appeal for high-end builds.
- Sports equipment — Hockey sticks and bicycle frames utilize Kevlar hybrid weaves to combine impact resistance with team color identity.
- Consumer electronics — Laptop lids and headphone shells finished with tinted resin stand out prominently on retail shelves.
- Corporate identity — Custom Pantone-matched panels serve promotional items and co-branded products complete with CNC engraving.
Why Choose YTCarbon
- One plant, full control. We press our colored sheets from raw tow, formulate custom resins, and machine parts in-house. As seen at the 2025 World UAV Expo, we deliver certified factory quality.
- Custom Pantone color matching. We formulate resin tints to match your exact brand codes or physical color samples.
- Kevlar hybrid weave. Integral aramid fibers run through the full thickness to provide permanent, fade-resistant coloration.
- ISO 9001 certified. Independently audited quality management systems ensure consistent batch-to-batch color matching.
Certifications
Every sheet we ship includes complete quality documentation. Furthermore, our facility operates under ISO 9001 certification, and our materials comply fully with RoHS and CE directives, ensuring seamless international compliance.

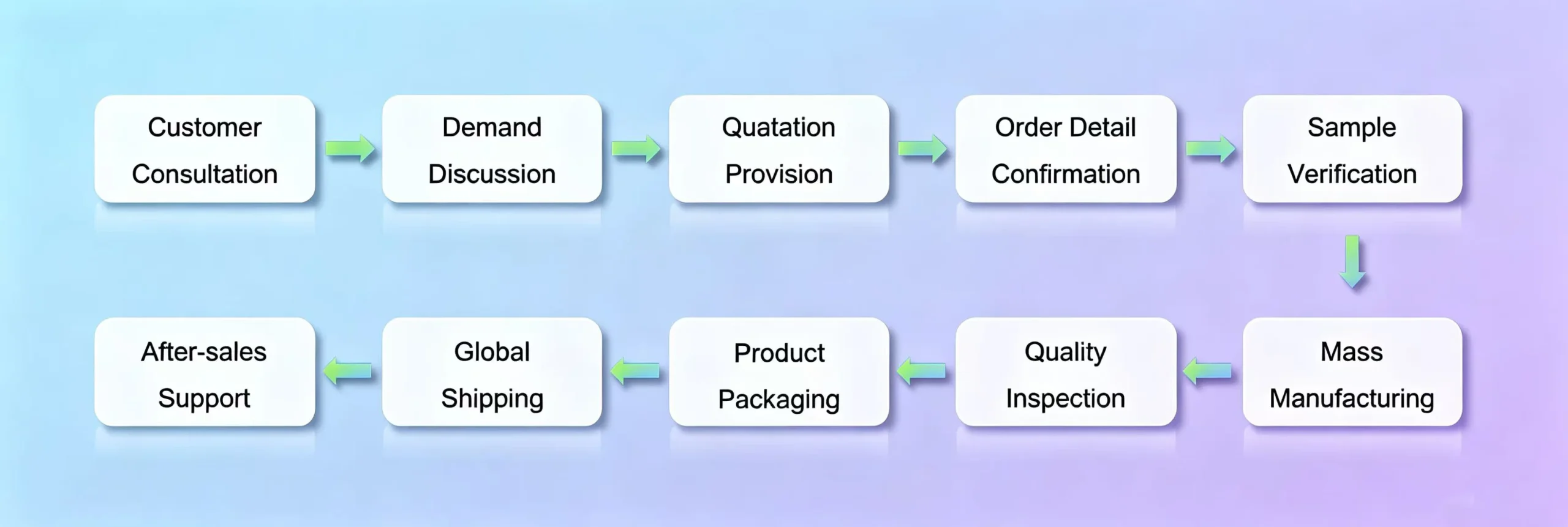

How to Order
Working with our direct factory team eliminates middleman markups. Simply submit your thickness, size, quantity, and color specifications to receive a comprehensive quote within 24 hours. Afterwards, we manufacture, inspect, and dispatch your order securely.
