YTCarbon Completes 4,500+ Carbon Fiber Tube Shipment for German Client
Over 4,500 round glossy twill carbon fiber tubes — T300 grade, 25mm inner diameter — manufactured, individually inspected to 100% pass rate, and shipped from Shenzhen to Germany. A case study in what a dedicated carbon fiber tube manufacturer can deliver when quality is non-negotiable.
4,500+ Tubes, One Standard: 100% Pass or No Ship
When a German industrial client placed an order for over 4,500 roll-wrapped carbon fiber tubes, the requirement was clear: T300-grade fiber, 25mm inner diameter, round profile with a glossy twill weave finish. No mixed specs, no exotic layup — just a big-volume order where consistency across every single piece was the real challenge.
The client had previously sourced from another supplier and faced a recurring problem: surface defects, inconsistent wall thickness, and tubes that looked fine on the outside but failed under load. They needed a carbon fiber tube manufacturer who could deliver volume without treating quality as an afterthought.
What made this order demanding was not complexity — it was scale combined with an uncompromising acceptance criteria. The client specified that every single tube must pass full dimensional and visual inspection before shipping. Not AQL sampling, not batch testing. 100% individual inspection, zero exceptions. For a carbon fiber tube order of this size, that is a serious commitment.
Twill Weave, Glossy Finish — Getting It Right at Scale

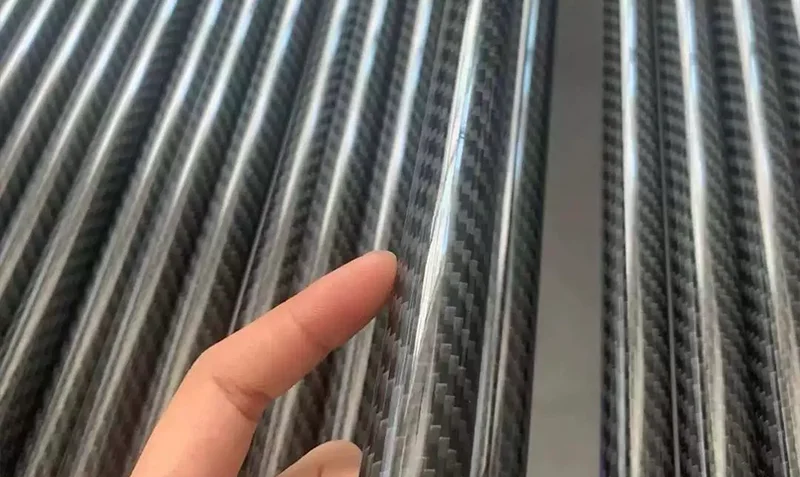

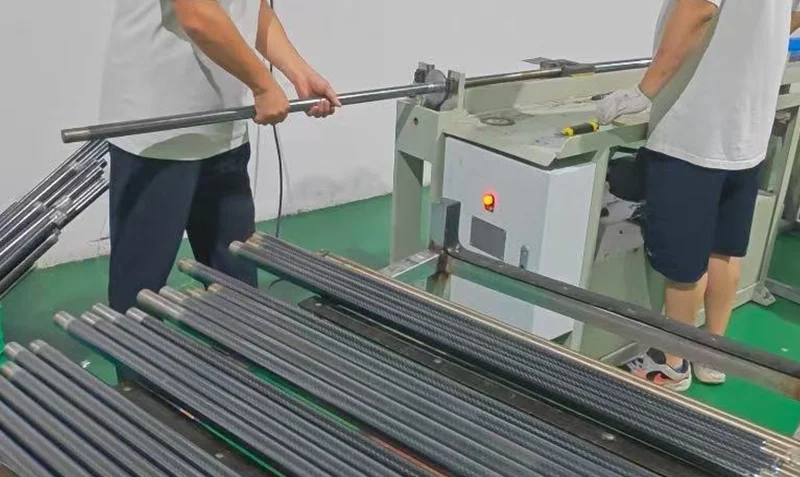

The roll-wrapped carbon fiber tube process starts with T300 prepreg fabric laid onto precision mandrels by hand. For this order, the 3K twill weave pattern had to be visually consistent across all 4,500+ pieces — any distortion in the weave, any resin-rich or resin-starved area would be caught at inspection and rejected.
After wrapping and shrink-taping, the tubes were cured in an oven at 120°C. The glossy finish was achieved through a post-cure surface treatment: each tube was sanded, polished, and inspected under direct light to ensure a uniform mirror-like surface with no fiber exposure, no pinholes, and no orange peel.
Running 4,500+ tubes through this process meant our production team had to maintain tight control over every variable — prepreg resin content, wrapping tension, curing temperature curve, and polishing pressure. When you make custom carbon fiber tubes every day, these parameters become second nature. But at this volume, even a small drift in any variable can compound across thousands of pieces.
Every Tube Inspected — Until 100% Passed
This is where most manufacturers cut corners. At 4,500+ pieces, the temptation to switch from 100% inspection to statistical sampling is strong. But the client’s requirement was absolute: no tube ships unless it passes individual inspection. And that is exactly what we did.

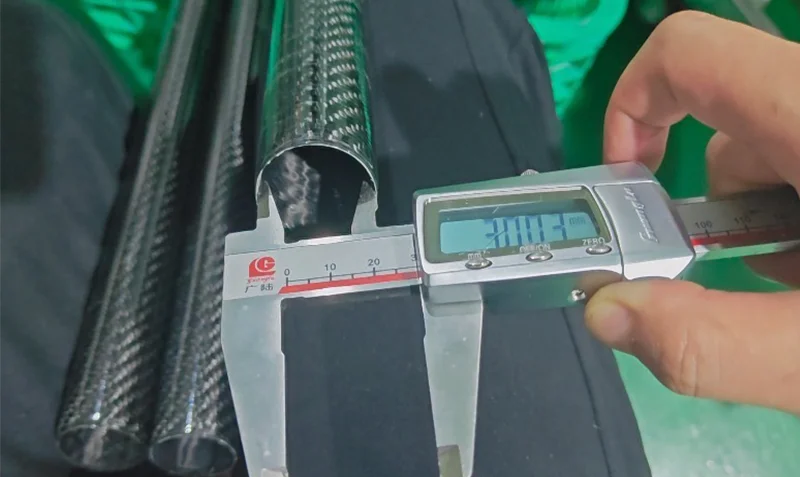

Every single carbon fiber tube was checked across three categories: dimensional accuracy (inner diameter, outer diameter, wall thickness, and length measured with digital calipers and bore gauges), straightness (verified on a granite surface plate, ≤0.5mm per meter), and surface quality (visual inspection under direct lighting for weave consistency, gloss uniformity, and any defects such as delamination, fiber pull-out, or resin starvation).
Any tube that failed any checkpoint was pulled from the batch immediately. Depending on the issue, it was either reworked — re-polished, re-cut, or re-sanded — or rejected entirely. The reworked tubes were then re-inspected from scratch, going through the full checklist again. This cycle continued until every single tube in the order passed. The final shipment left our facility with a 100% pass rate — not 98%, not “within spec,” but every piece certified and signed off. That is what an ISO 9001-certified carbon fiber tube supplier should deliver when the client says “no exceptions.”
Packed, Palletized, and Shipped to Germany

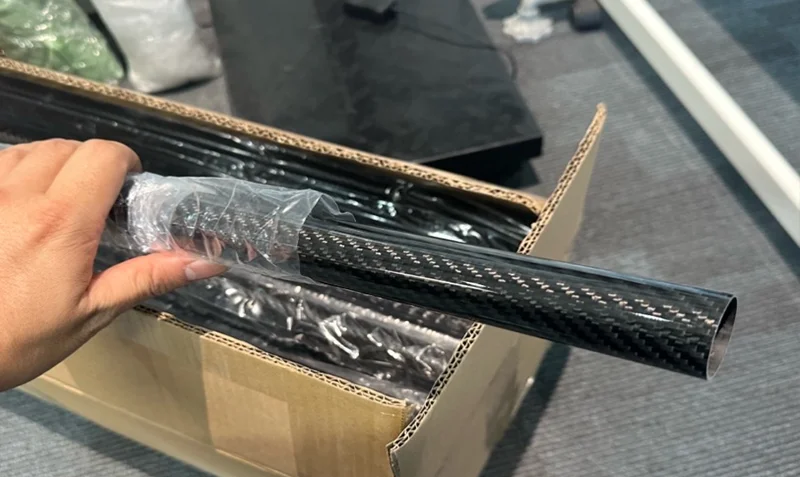

Once the full batch passed inspection, packing began. Each tube was individually sleeved in a PE foam protector to prevent surface contact during transit — critical for preserving the glossy finish that the client specifically requested. Tubes were then grouped and placed into corrugated cartons with foam inserts, stacked on heat-treated wooden pallets, and strapped with polyester banding.
Every pallet was labeled with the specification code, quantity, and destination marking. The packing list and certificate of conformance were included in the document pouch — standard procedure for any carbon fiber tube manufacturer exporting to the EU, but one that many smaller factories overlook.
The container was loaded and sealed at our Shenzhen facility, then transported to Yantian Port for ocean freight to Germany. From order confirmation to container sealed, the client received exactly what they ordered: 4,500+ tubes, all T300, all 25mm ID, all glossy twill, all inspected, all passed. No short shipments, no rejects slipped in, no excuses. That is how a China carbon fiber tube factory earns repeat business from European clients.
Why European Buyers Keep Coming Back
This shipment is not an isolated case. Over the past year, YTCarbon has seen a steady increase in repeat orders from European industrial clients. The reasons are straightforward:
- 100% inspection on every piece — not sampling, not “trust the process,” but actual individual verification until every tube passes
- Volume without compromise — 4,500+ tubes with consistent twill weave, gloss finish, and dimensional accuracy across the entire batch
- Material traceability — T300 grade, production batch records, curing cycle logs, all maintained under ISO 9001
- Export-ready packaging — individually sleeved, foam-protected, palletized, and documented for EU customs
For companies sourcing carbon fiber tubes for automation and industrial applications, these factors are not nice-to-haves — they are requirements. A tube with inconsistent wall thickness or a flawed surface can cause problems downstream that cost far more than the tube itself. We understand that, and our production and QC processes are built around it.
