Physical Anti-Rotation Architecture for Heavy Thrust

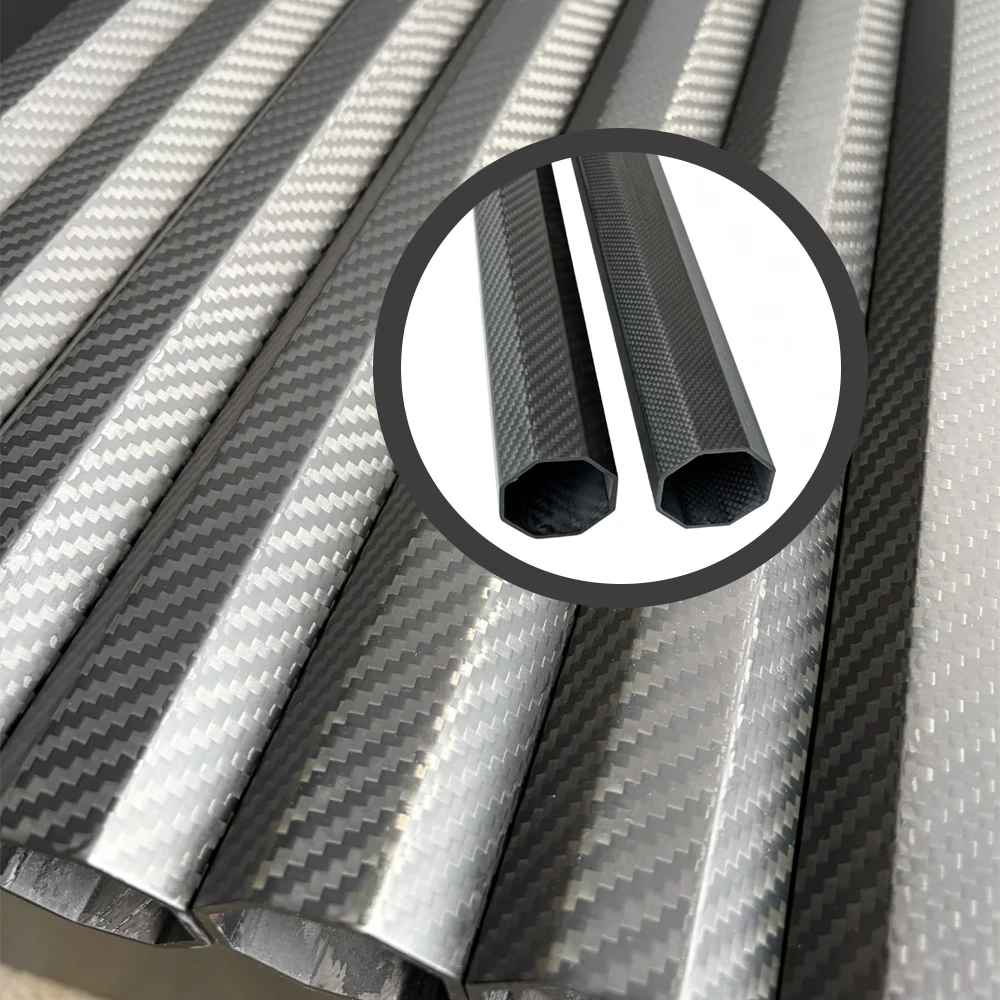

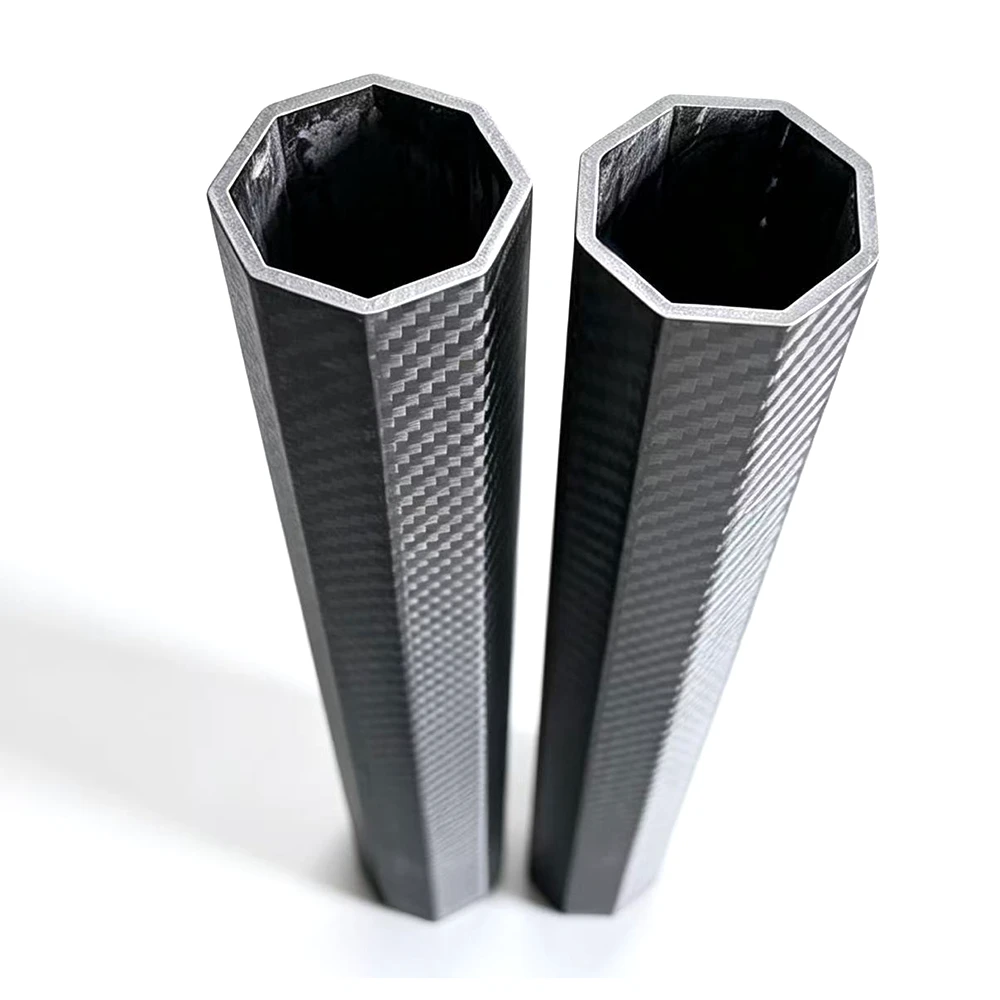

Standard cylindrical carbon tubes present an engineering vulnerability when deployed as multirotor motor booms. High-torque brushless motors driving large carbon propellers generate aggressive rotational reaction forces during sharp yaw transitions. Friction clamps on circular tubes frequently slip, requiring through-bolt holes that cut continuous composite fibers and cause localized stress concentrations. Our octagonal carbon fiber tube resolves this vulnerability entirely. The 8-sided symmetrical flat faces seat directly against matching CNC clamps, physically locking the arm into position without weakening the composite matrix.
Multi-Axial Roll-Wrapped Consolidation

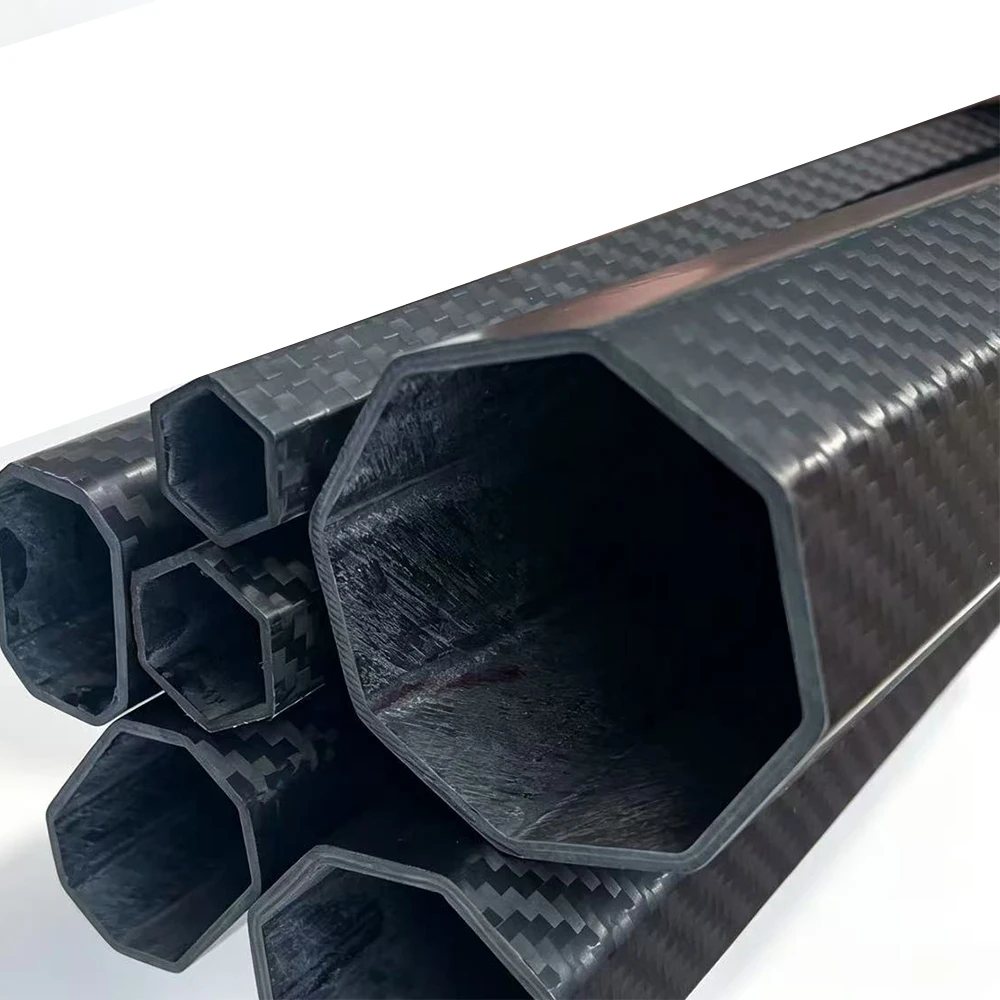

Unlike pultruded tubing with unidirectional fiber orientation, our octagonal tubes are roll-wrapped on precision steel tool mandrels using dedicated prepreg plies. We lay up unidirectional core layers for longitudinal cantilever stiffness alongside internal ±45-degree plies to maximize hoop and torsional shear resistance. The consolidated laminate withstands severe dynamic flex, payload vibration, and abrupt landing shocks without delamination.
Seamless Component Mating and Integration
The flat facets of octagonal tubing simplify equipment integration. Motor mounts, landing gear knuckles, and payload sensor rails align flush against the tube faces without custom cylindrical saddle adapters. This planar mating reduces overall component count, accelerates final assembly speed, and cuts parasitic grams across the entire airframe.
Specifications
| Parameter | Specification |
|---|---|
| Product Classification | Octagonal Carbon Fiber Tube / Anti-Twist Composite Boom |
| Standard Flat-to-Flat Widths | 20mm, 25mm, 30mm, 40mm (Custom OD/ID available upon request) |
| Wall Thickness Options | 1.0mm, 1.5mm, 2.0mm, 2.5mm (±0.1mm dimensional tolerance) |
| Raw Material Grade | 100% Continuous Carbon Fiber Prepreg (High-Tensile T700 / Standard T300) |
| Manufacturing Method | Precision multi-axis roll-wrapping with autoclave/oven heat consolidation |

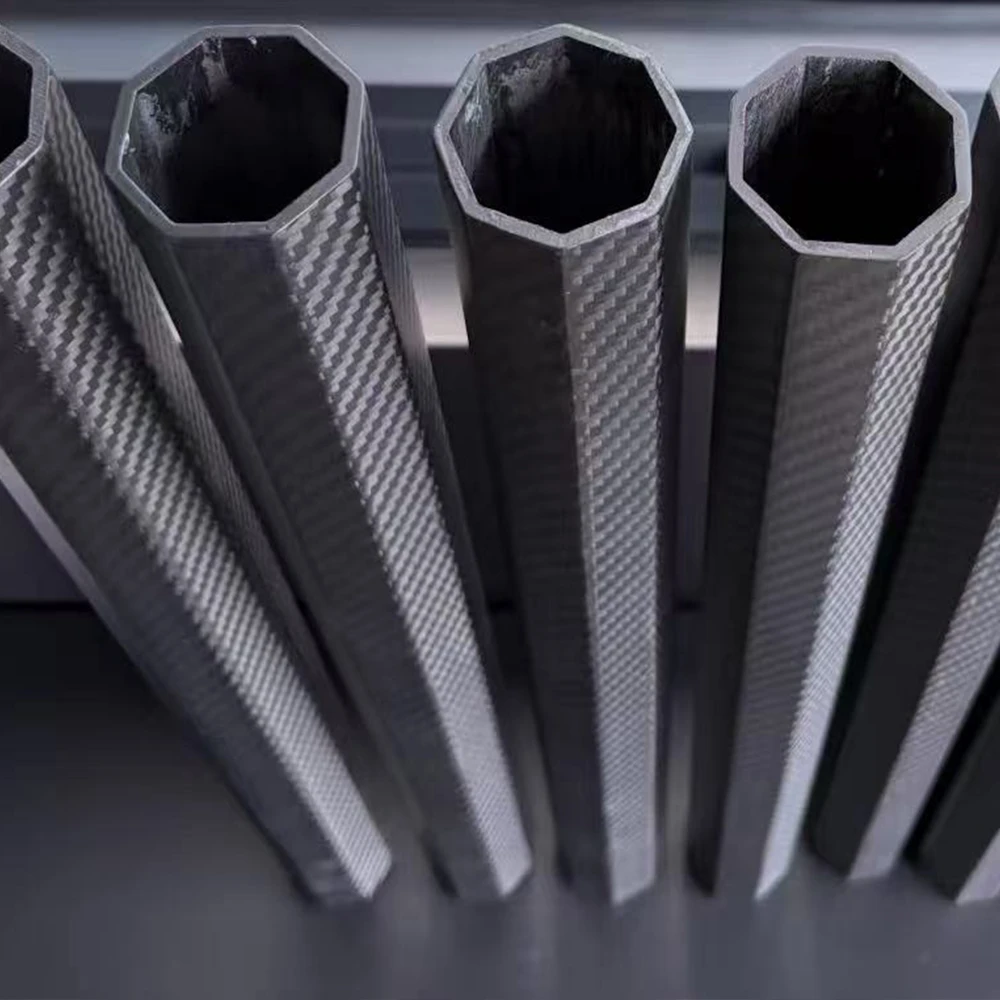

| Surface Pattern & Finish | 3K Twill (2×2) / 3K Plain; Scratch-Resistant Matte or High-Gloss Clear Coat |
| Single-Piece Length | Up to 4 meters (Custom cut-to-length service down to ±0.5mm) |
| Fiber Volume Fraction | ≥ 60% (Consolidated void content < 1.5%) |
| Density | ~1.50 g/cm³ (Roughly 55% the density of aluminum) |
| Secondary Machining Scope | CNC wire-cut slots, cross-bore drilling, edge deburring, bonding with aluminum clamps |
Applications
- Heavy-payload logistics & agricultural drone booms — Delivers non-slip, anti-rotation mounting for high-thrust motors and spray bar extensions.
- eVTOL sub-spars and control arm linkages — Combines high specific stiffness with flat-face fastener clamping across aerodynamic hulls.
- Robotic articulating booms and automation pickers — Suppresses cantilever droop and eliminates rotational backlash during high-cycle acceleration.
- Linear slide gantry tracks and optical guide rails — Provides low-friction planar tracking and high dimensional repeatability for positioning sensors.
- Camera crane jibs & broadcast stabilizer spars — Minimizes wind-induced deflection and torsional oscillation for high-definition aerial filming rigs.
- Surveying and metrology tripods — Offers rigid, lightweight elevation legs with consistent clamp friction and low thermal expansion.
Why Choose YTCarbon
- Tailored internal and external geometries. We offer Custom OD/ID configurations alongside standard sizes to match your proprietary airframe hardware.
- True structural roll-wrapping. Fabricated with 100% continuous multi-axis prepreg plies for maximum torsional rigidity and zero internal resin pockets.
- Single-piece spans up to 4 meters. Long-format mandrels support large-scale agricultural multirotors and industrial automation gantries without section splicing.
- Turnkey CNC machining and clamping. In-house diamond CNC centers provide precision cutouts, cable pass-through slots, and matching 7075 aluminum clamps.
- Strict ±0.1mm dimensional control. Calibrated steel tooling ensures precise flat-to-flat parallelism and uniform composite wall thickness.
- ISO 9001 certified manufacturing. Full batch traceability, dimensional caliper reports, and material spec sheets accompany every shipment.
Certifications
Our octagonal composite tubes undergo comprehensive mechanical deflection testing, wall thickness verification, and surface finish auditing. Manufactured in an ISO 9001 registered facility, all resin formulations and carbon tows comply with RoHS environmental directives, REACH standards, and CE guidelines. Comprehensive mechanical test data and batch inspection reports are available for your regulatory files.
ISO 9001 · RoHS · REACH · CE Certified Quality
Production Process
Producing high-torsion octagonal tubes requires specialized multi-axial layups and precision steel mandrels to ensure sharp, distinct corner radii and void-free consolidation:
- Mandrel Preparation — High-strength octagonal steel tool cores are polished and coated with release agents to ensure uniform inner wall geometries.
- Multi-Axis Prepreg Layup — Automated rolling systems apply alternating 0°, ±45°, and 90° continuous carbon fiber plies under controlled tension.
- Thermal Consolidation & Curing — Outer compaction films apply uniform inward pressure during high-temperature oven curing (120°C–130°C) to crosslink the epoxy matrix.
- Hydraulic Mandrel Demolding — Specialized hydraulic pullers smoothly extract the internal steel mandrel without damaging inner composite surfaces.
- Centerless Surface Finishing — Tubes receive automated centerless grinding followed by protective matte clear-coating or high-gloss lacquering.
- CNC Precision Post-Machining — Diamond cutters trim tube lengths and machine custom motor wiring apertures down to ±0.05mm tolerance.
- Quality Audit & Packaging — Digital calipers verify flat-to-flat dimensions within ±0.1mm before protective foam wrapping and reinforced carton packing.

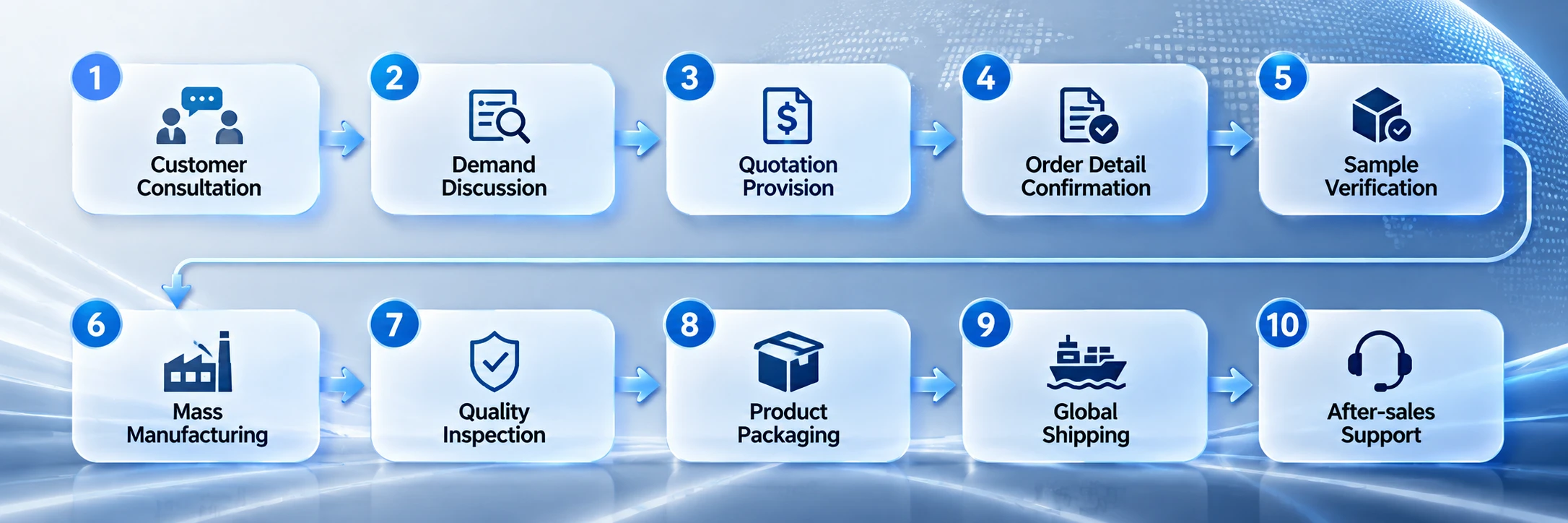

Octagonal Carbon Fiber Tube Production Process
