Product Details

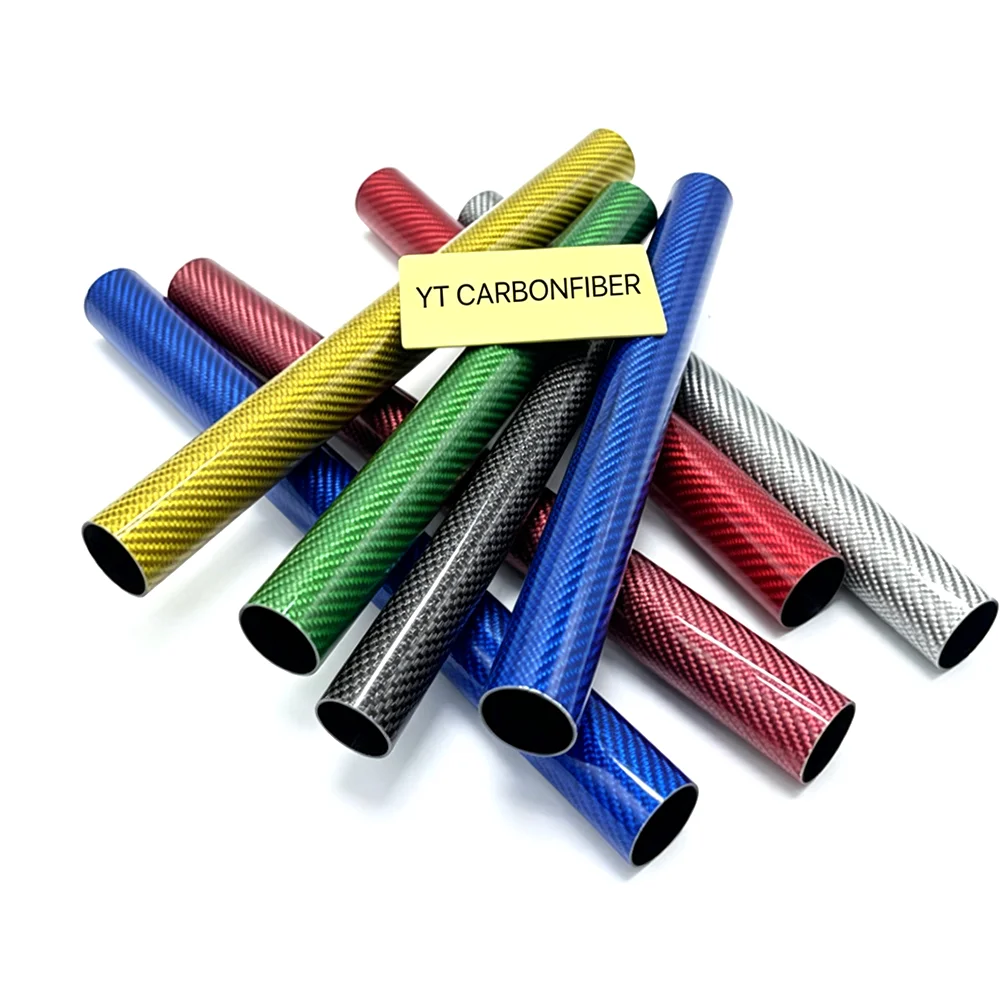

Not every carbon fiber tube has to be black. Our colored carbon fiber tubes weave colored glass fiber or dyed pre-preg directly into the layup, giving you a tube that performs like standard CF but stands out the moment someone looks at it. Red, blue, green — or a custom Pantone-matched color for your brand. The weave pattern proves it’s real carbon fiber at a glance, and the color tells everyone whose product it is.
How does the color work? It’s not paint, not coating, not a sticker. Colored glass fiber is woven alongside standard 3K carbon fiber in the same fabric layer. The carbon handles the structural loads; the colored fiber introduces the visual effect. The result is a tube that’s just as stiff and just as strong as our black tubes, with zero weight penalty for the color. Dyed pre-preg is another option — the resin itself carries the pigment, so even the carbon layers have a tinted tone. Either way, the color is permanent and part of the material.
We roll-wrap every colored tube on precision mandrels, same process as our standard lineup. OD from 6mm up to 80mm, wall thickness 0.5mm to 5mm, max 3m per section in roll-wrapped. Need longer? Pultruded colored tubes go up to 8m continuous — the longest colored CF tube you’ll find from a single Shenzhen factory. Custom OD/ID, custom color, custom layup. Your tube, your color.
Specifications
| Specification | Details |
|---|---|
| Material | 3K Carbon Fiber + Colored Glass Fiber / Dyed Pre-preg |
| Weave Pattern | Twill / Plain (carbon + colored fiber interweave) |

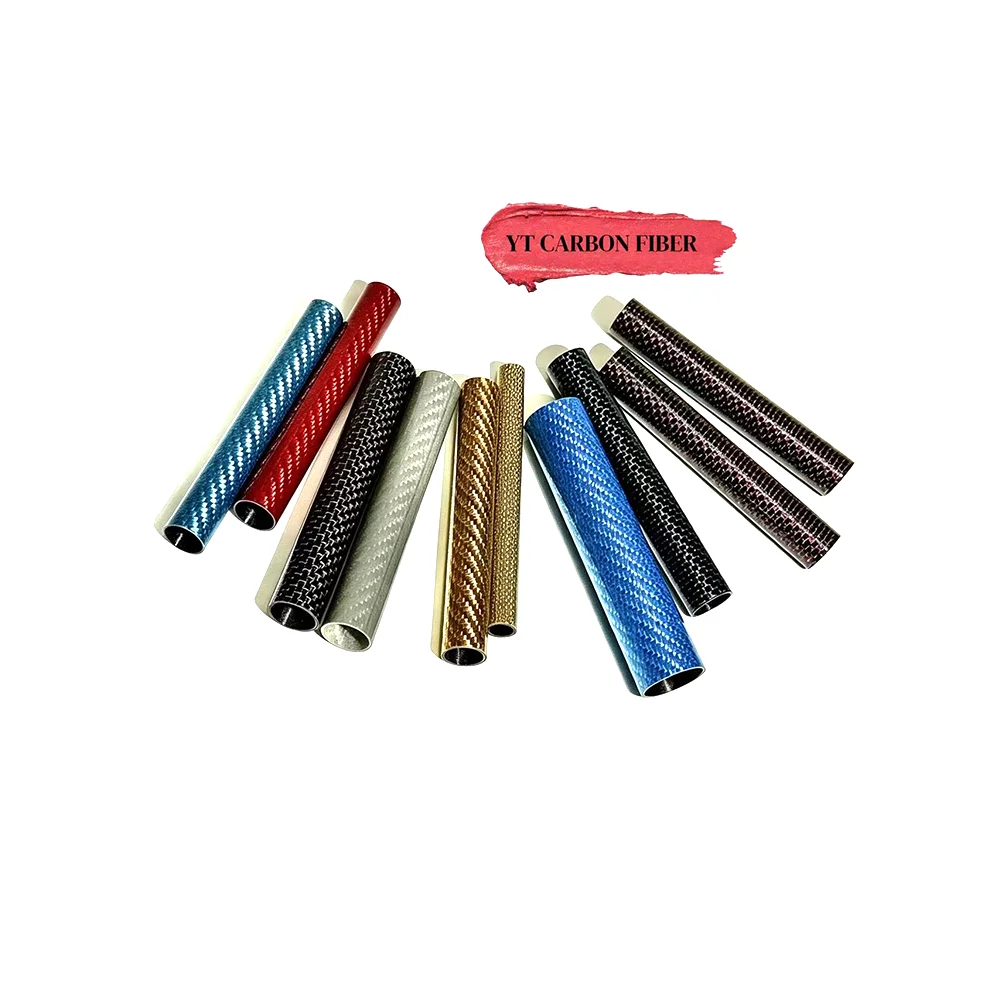

| Available Colors | Red, Blue, Green, Custom Pantone Match |
| OD Range | 6mm – 80mm (Custom OD/ID available) |
| Wall Thickness | 0.5mm – 5mm |
| Max Length (Roll Wrapped) | 3,000mm per section |
| Max Length (Pultruded) | 8,000mm continuous |
| Tensile Strength | ≥ 800 MPa (carbon layers) |
| Modulus | ≥ 70 GPa |
| Density | ~1.55 g/cm³ |
| Surface Finish | Glossy or Matte (mold-controlled) |
| Tolerance | OD ±0.1mm, Length ±1mm |
Applications
- OEM Brand Differentiation — Your product on a shelf next to ten black tubes? A red or blue carbon fiber weave makes it instantly recognizable. No label needed — the color is your brand.
- Sporting Goods & Equipment — Hockey sticks, ski poles, paddles, archery risers — colored CF tubes let athletes match team colors while keeping full carbon fiber performance.
- Premium Consumer Products — High-end tripods, camera rigs, and lifestyle gear where visual appeal drives the purchase decision. The weave pattern shows it’s real carbon, not a paint job.
- UAV & Drone Racing — Racing drone builders use colored tubes for team identification mid-flight. Different colors for different builds — no more mixing up parts in the pit.
- Trade Show Displays & Exhibition Structures — Booth frames, banner supports, and demo rigs. Colored tubes make your setup stand out — up to 8m pultruded length for large structures.
Why Choose YTCarbon
- Proven at 2025 World UAV Expo — We exhibited at the 2025 World UAV Expo — see what a real carbon fiber factory puts on the table. Our colored tubes drew more questions than any standard black tube on display. That visual impact? It works.
- Color Is in the Fiber, Not Paint — No spray, no coating, no peeling. Colored glass fiber is woven directly into the carbon fabric. It’s permanent, UV-resistant, and adds zero weight compared to a painted finish.
- Same Strength as Black Tubes — The carbon fiber layers handle the structural loads exactly like our standard tubes. Colored glass fiber fills the visual role without compromising stiffness or tensile performance. You don’t trade strength for looks.
- Custom Color Matching for OEM — Send us a Pantone code or a physical sample. We’ll source colored fiber in that shade and produce a prototype tube. Perfect for customers who need consistent brand colors across their entire product line.
- Full-Length Capability — Pultruded colored tubes up to 8m continuous. Roll-wrapped up to 3m per section. Most colored tube suppliers cap at 2m — we don’t. Custom OD/ID, custom color, one factory.
Certifications
Every colored carbon fiber tube from YTCarbon ships with ISO 9001:2015 quality management backing, plus RoHS and CE compliance. Our Shenzhen factory runs full traceability — from raw fiber reel to finished colored tube, every batch is logged and testable. Colored glass fiber materials are sourced from certified suppliers with material test reports on file.
How We Manufacture Your Colored Carbon Fiber Tube
Manufacturing a colored CF tube follows the same core process as our standard tubes — with one key difference: the fabric stack includes colored glass fiber layers. We prepreg standard carbon fiber (3K twill or plain) alongside colored glass fiber sheets, then roll-wrap the full stack onto a precision mandrel. The colored layers are placed at calculated positions in the wall — typically the outer surface for maximum visibility, sometimes an inner layer too for a dual-tone effect. After vacuum bagging and oven curing at 130°C, the mandrel is extracted and the tube is precision-cut to length. Every colored tube goes through the same OD inspection and straightness check as our black tubes. No shortcuts just because it looks good.
FAQ
+ How does a colored carbon fiber tube compare in strength to a standard black one?
+ Can you custom match a specific brand color on colored carbon fiber tubes?
+ Will the color on a colored carbon fiber tube fade over time?
+ What’s the longest colored carbon fiber tube you can produce?
+ Is a colored carbon fiber tube more expensive than a standard black one?
Need a Custom Colored Carbon Fiber Tube?
From signature red to your brand’s custom shade — we weave your color right into the fiber. Custom OD/ID, custom color, up to 8m continuous. Get a quote today.
