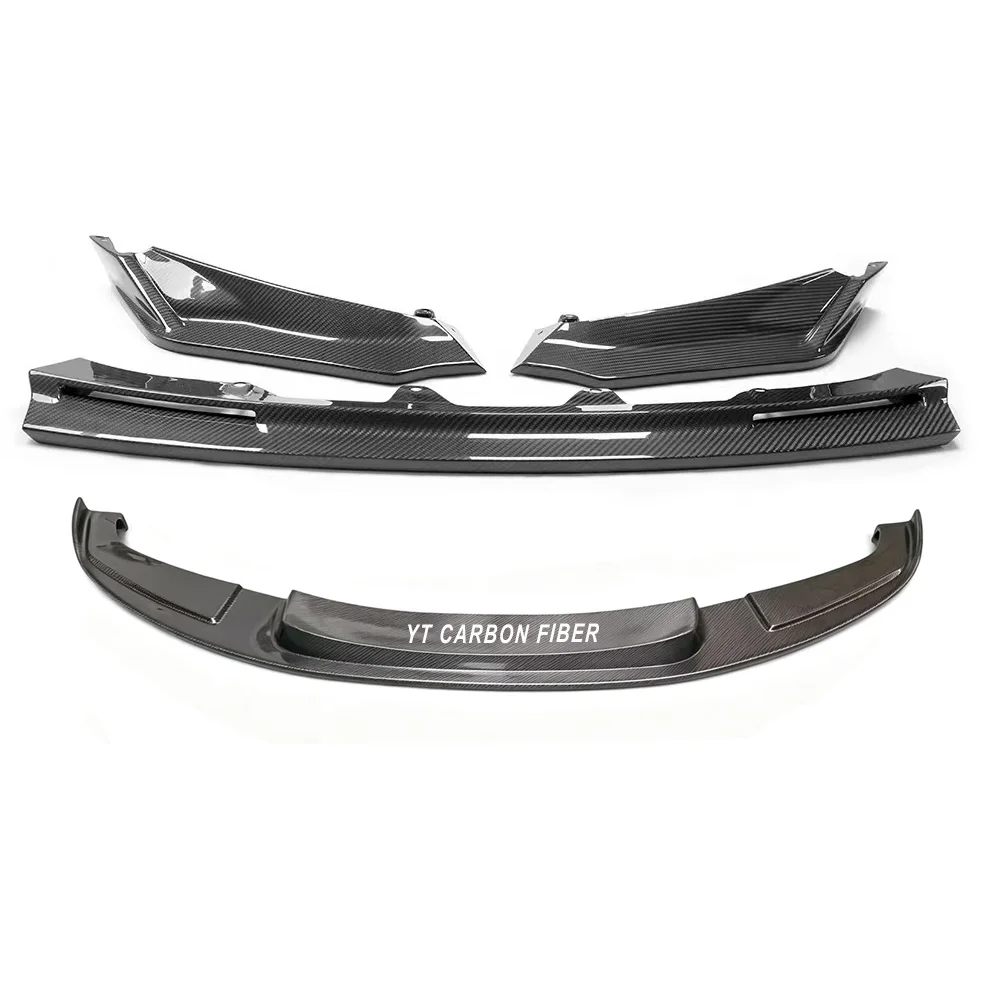

Carbon fiber front lip 3K twill front view YTCarbon

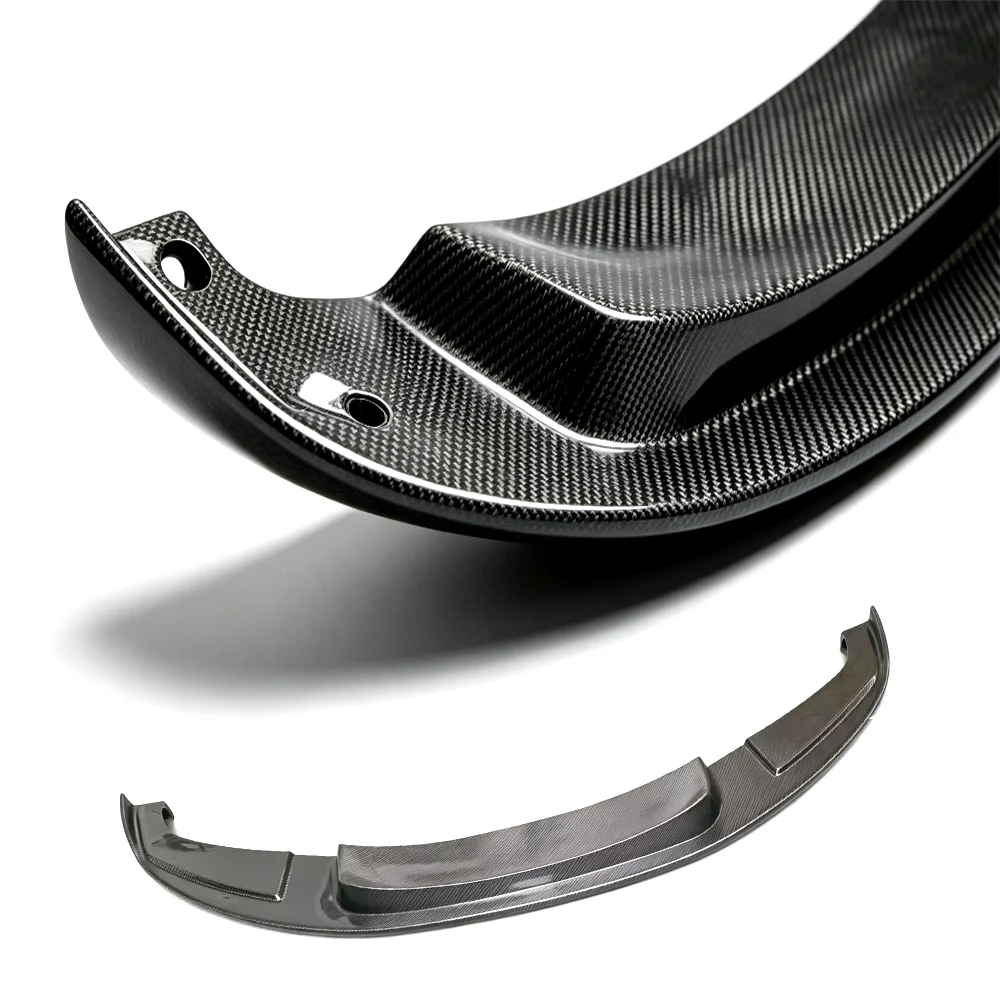

Carbon fiber front lip surface weave and edge detail YTCarbon

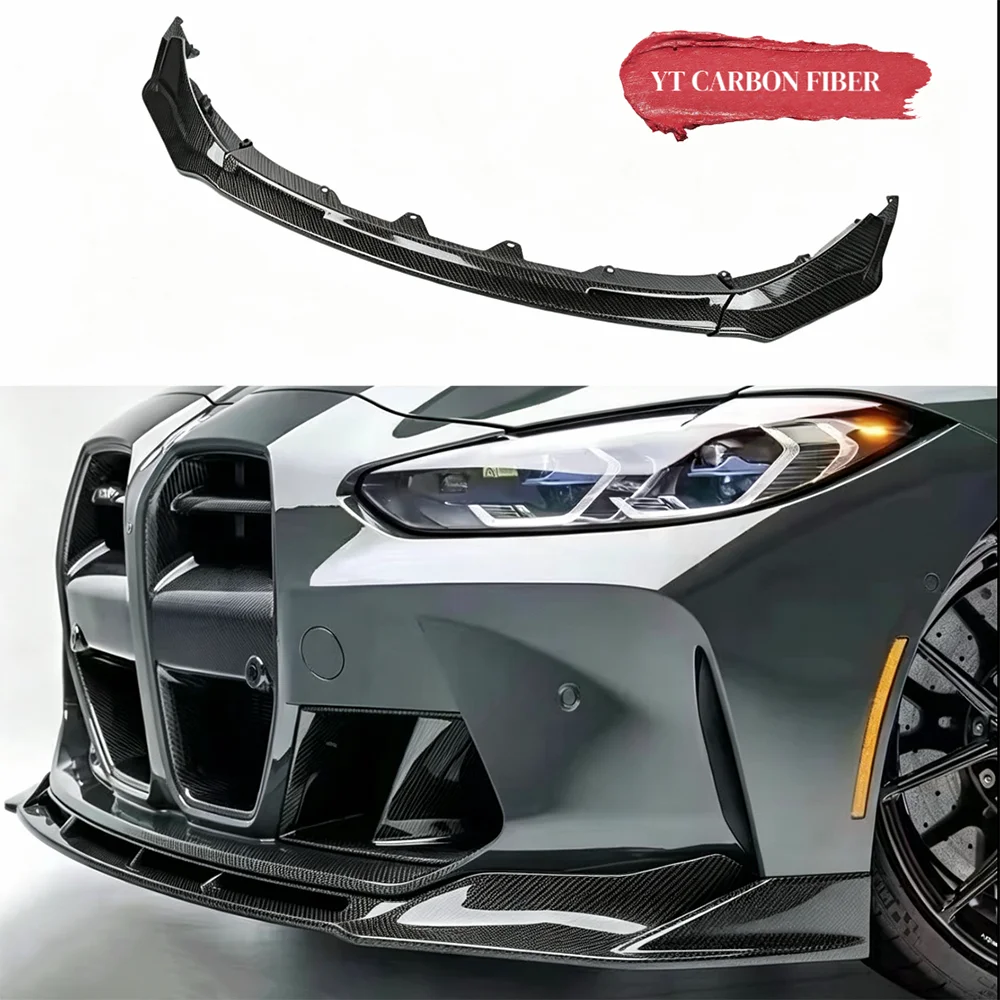

Carbon fiber front lip installed on car front bumper YTCarbon

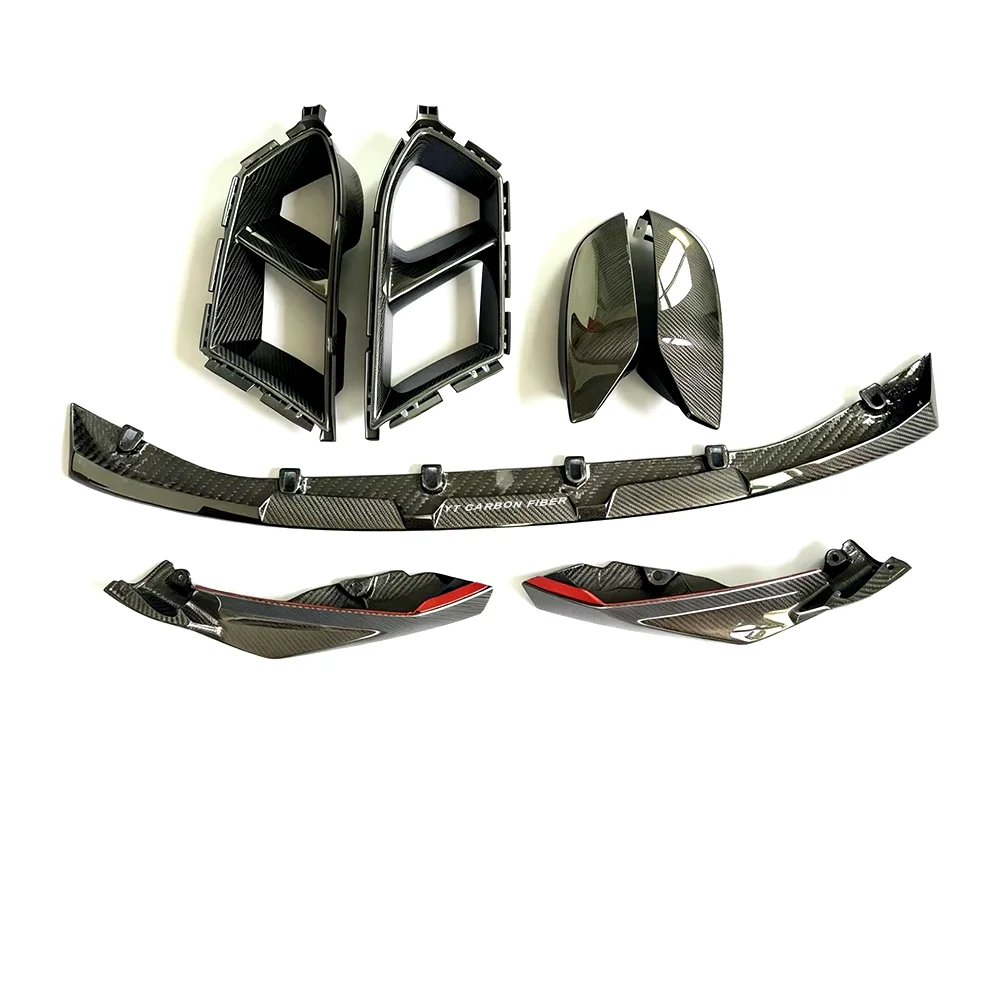

Carbon fiber front lip splitter with side canards kit YTCarbon

Carbon Fiber Front Lip

Custom molded carbon fiber front lips — splitter-style aero components that increase front downforce and sharpen the visual stance. Pre-preg compression molded with aluminum or steel tooling for a precise fit to each bumper profile. Send your STEP, STP, or IGS design file and we handle the full cycle: mold design, molding, trimming, and surface finishing. 3K twill or forged carbon. Glossy or matte. From 10-piece samples to production volume. Factory direct from Shenzhen. ISO 9001 certified.

Request a QuoteWhatsApp Us

Product Details

A front lip is the lowest-hanging aerodynamic part on a car — and the first one to scrape on a speed bump. That means it needs to be stiff enough to hold its shape at speed, light enough not to sag, and tough enough to survive daily driving. Carbon fiber hits all three. Our custom molded CF front lips are compression-molded from 3K twill or forged pre-preg, designed to bolt directly onto your bumper profile with no universal-fit compromises.

Front lips are deceptively complex to mold well. The part is long and relatively flat, which means warpage is the enemy — if the mold isn’t right or the layup isn’t balanced, the lip curves out of shape after demolding. We solve this with symmetrical layup schedules (matching top and bottom fiber orientation), controlled cooling under pressure, and a flatness check on every piece. The mold itself follows the exact bumper contour from your 3D data — whether it’s a subtle lip that tucks under the OEM bumper or an aggressive splitter that extends 50mm forward. Each design gets its own mold, period.

Send us your design in STEP, STP, or IGS format. We evaluate the bumper geometry, design the mold with proper draft angles and parting lines, and quote you tooling + piece price upfront. Aluminum molds for prototyping, steel for production. After molding, we trim flash, drill mounting holes, sand edges, and apply your chosen finish. Need matching side canards or a splitter panel to go with the lip? We can tool those in the same project. One factory, one timeline, one quality standard.

Specifications

Specification Details
Material 3K Carbon Fiber Pre-preg (T300/T700)
Weave Pattern Twill / Forged / Plain (customizable)
Forming Process Pre-preg compression molding
Mold Type Aluminum (prototyping) / Steel (production)
Front Lip Styles Lip / Splitter / Splitter with side canards
Width Range 800mm – 2,000mm (bumper width dependent)
Wall Thickness 1.5mm – 4mm (design-dependent)
Surface Finish Glossy / Matte / UV clear coat
Drawing Formats STEP, STP, IGS — flexible customization from 3D design drawings
Post-Processing Trimming, drilling, sanding, UV clear coat
MOQ (Prototype) From 10 pieces
MOQ (Production) From 50 pieces
Mold Lead Time Aluminum: 12–18 days / Steel: 25–35 days
Tolerance ±0.3mm (molded), ±0.1mm (mounting holes)

Applications

  • Aftermarket Front Lip Kits — Model-specific CF front lips that bolt to OEM bumper mounting points. No cutting, no drilling, no universal-fit brackets. Direct replacement.
  • Splitter Packages — Extended splitter-style front lips with side canards for track-day downforce. We mold the lip, canards, and splitter panel as a matched set from one 3D design.
  • Tuning Shop Exclusive Designs — Aftermarket brands commissioning proprietary lip profiles with their own aesthetic language. We sign NDAs and don’t share tooling with other customers.
  • Wide-Body Kit Components — Front lips designed to match wide-body fender flares and side skirts. The lip needs to match the new bumper width — that’s a custom mold, every time.
  • Exhibition & Promo Vehicles — Show cars need the carbon look up front where photographers shoot first. A CF front lip is the single most photographed aero part on any modified car.

Why Choose YTCarbon

  • Proven at 2025 World UAV Expo — We exhibited at the 2025 World UAV Expo — see what a real carbon fiber factory puts on the table. Our compression-molded components proved that we handle complex curved shapes as well as flat sheets. Front lips are one of the toughest parts to mold flat — and we nail it every time.
  • Zero Warpage on Long Flat Parts — A front lip is essentially a long, flat, thin carbon panel that wants to warp during curing. We prevent this with symmetrical layup schedules, controlled cooling under pressure, and a flatness inspection on every piece. If it’s not flat, it doesn’t ship.
  • Bumper-Perfect Fitment — The lip follows your bumper contour exactly because the mold is cut from your 3D data. No gaps, no misalignment, no “close enough.” We’ve molded lips for over 30 different bumper profiles — each one required its own mold, and each one fit like it grew there.
  • Matching Aero Kit Capability — Need a front lip + side skirts + rear diffuser as a matched body kit? We tool all three in the same project, same design language, same material specs. Matching weave direction, matching finish, matching quality. One supplier, one shipment.
  • Scratch Resistance Options — Front lips take a beating — road debris, parking curbs, steep driveways. We offer a UV clear coat with enhanced scratch resistance, or a matte finish that hides minor scuffs better than glossy. For extreme-duty applications, we can add a thin protective film layer that’s replaceable without refinishing the carbon.

Certifications

Every custom molded carbon fiber front lip from YTCarbon is produced under ISO 9001:2015 quality management. RoHS and CE compliant. Flatness inspection, dimensional checks against 3D model, and surface defect grading are standard on every batch. Mold inspection reports and first article inspection provided on request.

YTCarbon ISO 9001 RoHS CE certifications for carbon fiber front lip

How We Manufacture Your Carbon Fiber Front Lip

Front lip manufacturing starts with your 3D design in STEP, STP, or IGS format. The mold is typically a two-part compression die following the bumper contour — the critical design factor is the parting line placement. We position it on the back face so the visible top surface is molded against the polished mold half, giving a flawless finish without secondary polishing. Pre-preg layup is symmetrical: matching fiber orientation top and bottom to prevent warpage during cure. For lips that extend forward (splitter style), we add UD reinforcement layers in the overhang area to resist bending under aero load. The mold closes, press applies 5–10 MPa at 130°C, and the part cures for 30–45 minutes. Controlled cooling under pressure is essential — we don’t release the press until the part is below 60°C to lock in flatness. After demolding, we trim flash, drill mounting holes, inspect flatness across 5 measurement points, and apply the finish. First articles ship to you for bumper fitment check before we run production.

YTCarbon carbon fiber front lip manufacturing compression molding process

FAQ

+ How do you prevent warpage on a long flat carbon fiber front lip?
Three controls. First, symmetrical layup — matching fiber orientation and thickness on top and bottom halves so internal stresses cancel out. Second, controlled cooling — we keep the press closed until the part drops below 60°C, which prevents the rapid thermal contraction that causes bowing. Third, flatness inspection — we measure at five points across the lip and reject any part with more than 1mm deviation. It’s not rocket science, but most small shops skip these steps and ship banana-shaped lips.
+ Can you mold a front lip that includes integrated side canards?
Yes, but we usually recommend molding the canards as separate pieces. A one-piece lip-with-canards design creates deep undercuts in the mold that complicate demolding and increase defect rates. Separate canards give you cleaner parts, easier molding, and the option to sell them individually. We mold both from the same design package so the lines and curves match perfectly. If you insist on one-piece, we can do it — the mold just costs more and the piece price is higher.
+ How thick should a carbon fiber front lip be for daily driving?
For street-driven cars, 2–2.5mm wall thickness is the sweet spot. Thin enough to keep weight off the front end, thick enough to survive parking curbs and steep driveways without cracking. For track-only splitters that see high aero loads, 3–4mm with UD reinforcement in the overhang area. We’ll recommend the right thickness based on your design and use case — just tell us how the car will be used.
+ Can I get a front lip for a car model you haven’t molded before?
That’s most of our orders. Every new bumper profile needs a new mold — we’re used to it. Send us the bumper 3D data (or a physical bumper for scanning), tell us the lip style you want, and we’ll design the mold from scratch. We’ve done first-time lips for over 30 different models. The process is the same whether it’s a popular BMW or a rare JDM import — new 3D data, new mold, same quality.
+ What finish is best for a carbon fiber front lip — glossy or matte?
Depends on your priorities. Glossy shows off the weave pattern — looks amazing in photos and at shows. But it shows every stone chip and curb scrape. Matte hides daily-driving wear much better and still looks purposeful. For track cars that get repainted between seasons, glossy is fine. For daily-driven street cars, matte is the practical choice. Either way, we add UV clear coat for protection — glossy clear on glossy parts, matte clear on matte parts.

Need a Custom Carbon Fiber Front Lip?

Send your bumper 3D data — we design the mold, mold the lip, and guarantee flatness. Zero warpage. Perfect fitment. From prototype to production.
