The Hybrid Breakthrough: Eliminating Composite Crushing & Point-Load Hazards
Pure composite tubes present distinct limitations in high-stress cycling components. When clamped aggressively in seatpost collars or drilled for water bottle bosses and internal shifting cables, standard carbon laminates risk interlaminar micro-cracking and fiber shear. Our carbon aluminum bicycle tube eliminates this vulnerability. By permanently co-molding high-modulus continuous prepreg over a precision-drawn 6061-T6 aluminum structural liner, the tube distributes point loads through the ductile metallic sleeve while the outer composite carries bending and aerodynamic fatigue stresses.
Proprietary Piano Mirror Finish: Superior Optical Depth

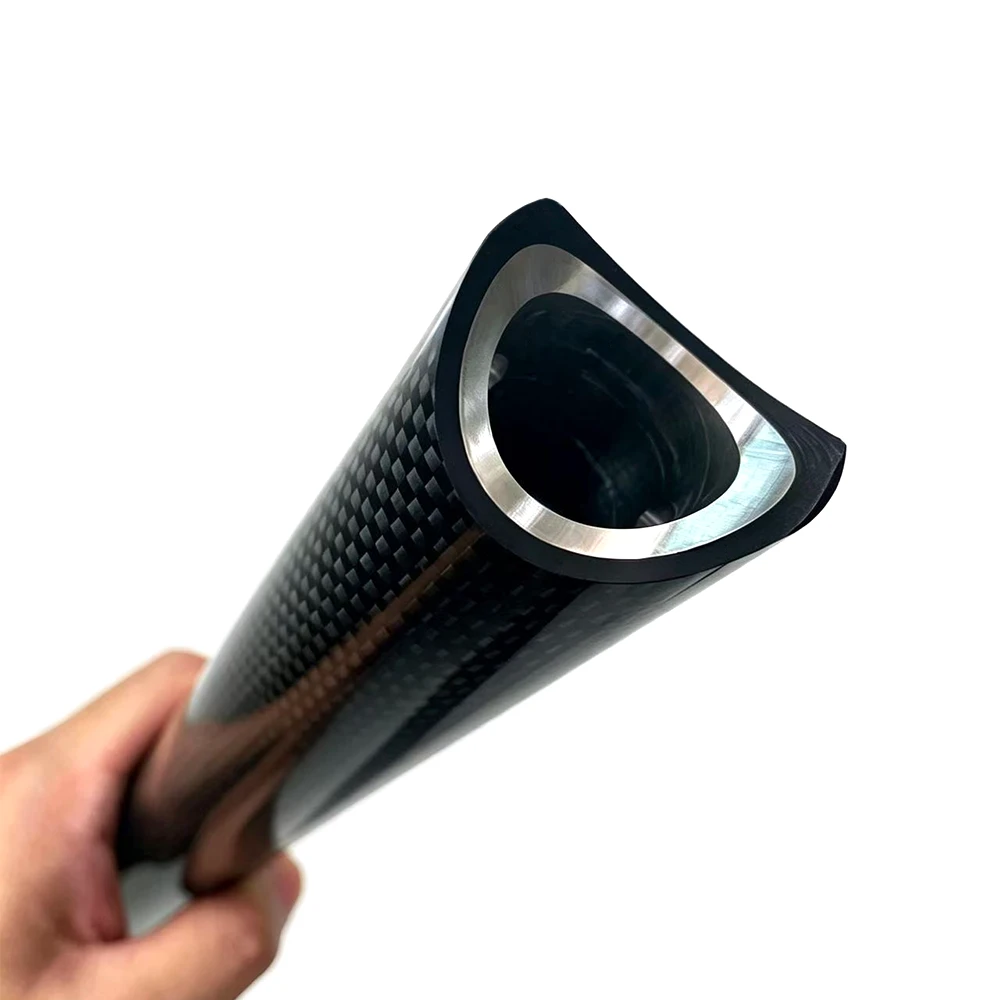

Conventional high-gloss carbon fiber often exhibits surface waviness, resin voids, or orange-peel textures under direct sunlight. We apply a dedicated multi-stage finishing procedure that delivers an ultra-high-gloss piano mirror finish. Each tube undergoes robotic surface leveling, dual-coat UV-cured acrylic polyurethane lacquering, and automated compound buffing. The result is a glass-like optical clarity that magnifies the 3D depth of the carbon weave while providing heightened scratch resistance and hydrophobic water shedding.
Factory-Drilled CNC Apertures & Integrated Threading

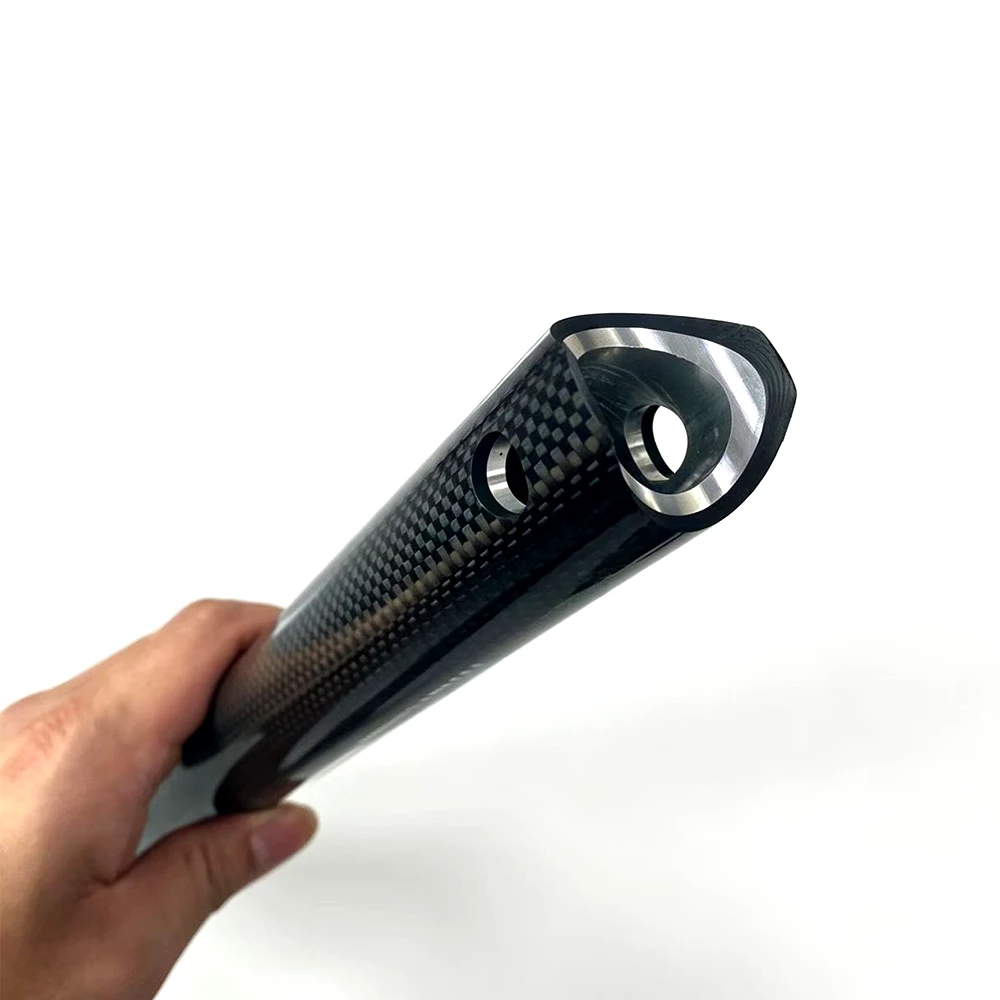

Because the interior features a continuous metallic core, this hybrid tubing supports machining operations that are impossible on standard thin-wall carbon tubes. We utilize synchronized multi-axis CNC routing to machine precision pass-through slots for hydraulic brake lines, electronic Di2 wiring channels, and blind threaded rivet positions. Every hole is chamfered down to ±0.1mm tolerance with zero composite delamination or burrs.
Specifications
| Parameter | Specification |
|---|---|
| Product Classification | Carbon Aluminum Hybrid Bicycle Tube / Aero D-Shaped Composite Tubing |
| Profile Cross-Section | Truncated Aerodynamic D-Shape (Custom aero teardrop or oval profiles available) |

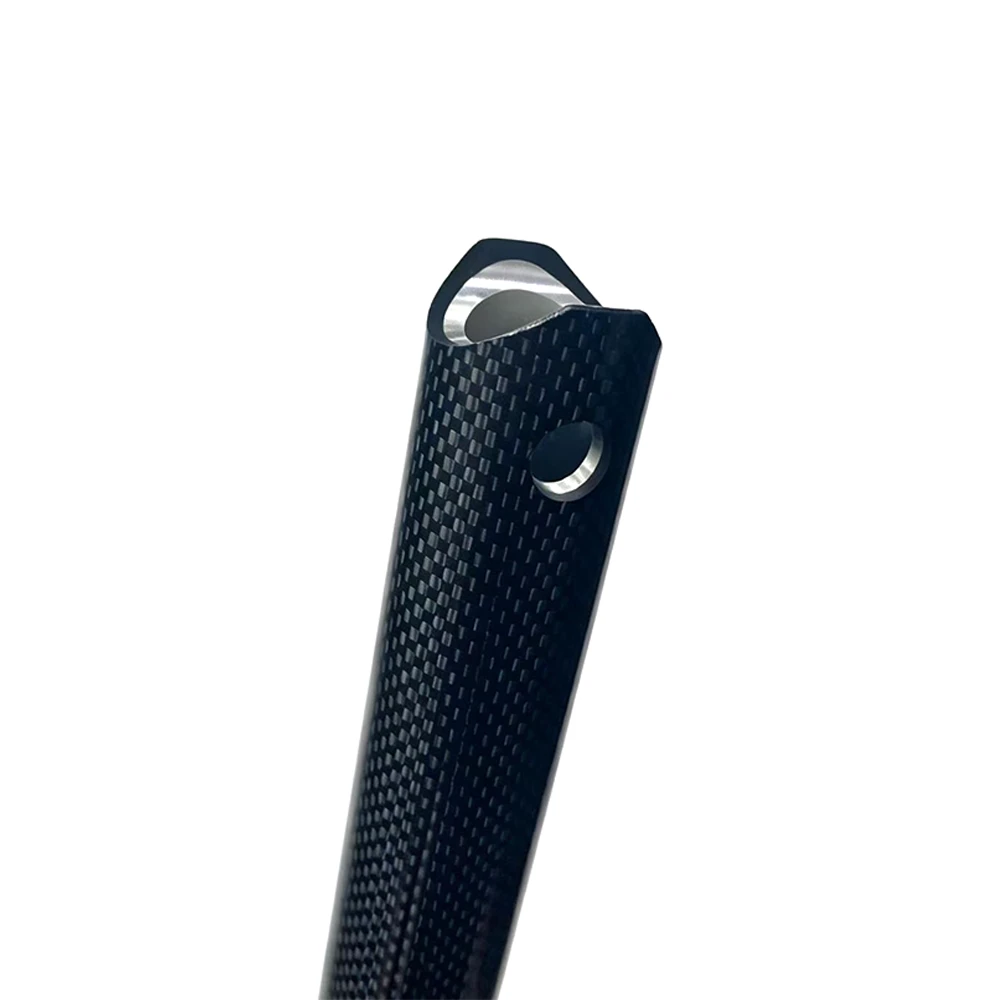

| Core Substrate | Seamless 6061-T6 Aircraft-Grade Aluminum Alloy Sleeve |
| Outer Shell Material | 100% Continuous Carbon Fiber Prepreg (High-Tensile T700 / T300) |
| Surface Coating Standard | Proprietary Multi-Layer Piano Mirror Lacquer (High-Gloss 3D Depth) / Optional Satin Matte |
| Standard Tube Dimensions | Seatpost profiles (e.g., 27.2mm / 31.6mm equivalent D-shape); Custom frame down tubes |
| Wall Thickness Distribution | 0.8mm–1.5mm aluminum core + 0.8mm–2.0mm carbon outer wrap (±0.1mm tolerance) |
| Machining & Fabrication | In-house multi-axis CNC slotting, precision hole drilling, tapped threads, chamfered cuts |
| Continuous Length | Up to 2 meters per piece (Cut-to-length service according to frame geometries) |
| Interfacial Adhesion | High-pressure thermal fusion with epoxy film barrier to prevent galvanic coupling |
Applications

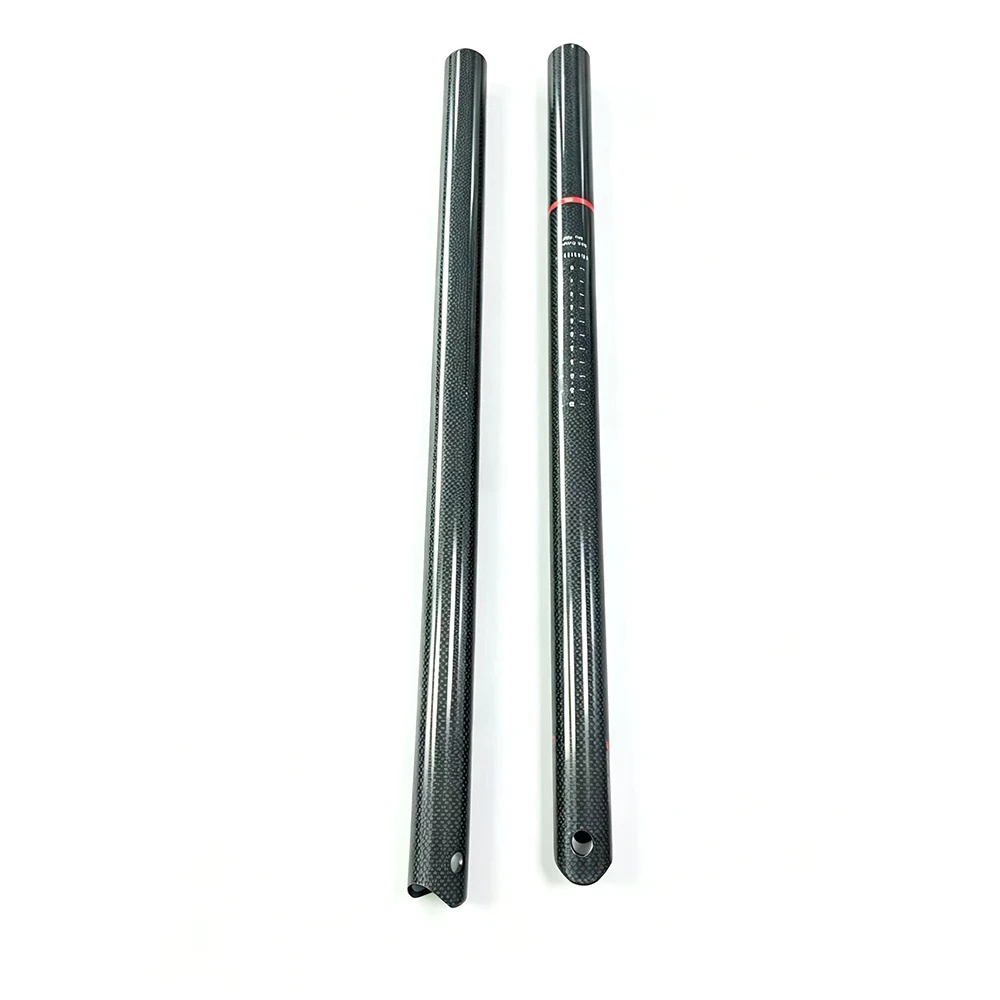

- High-performance aero road bike seatposts — Flat-back D-shape profile eliminates clamp rotation while filtering high-frequency road vibrations.
- E-bike structural down tubes & battery sleeves — Internal metal core supports battery housing brackets and withstands internal locking screw torque.
- Gravel and endurance frame seat tubes — Combines vertical compliance with high lateral stiffness for power transfer across unpaved terrain.
- Racing kart & motorsport steering columns — Provides torsional stiffness and anti-shatter metallic retention in extreme impact situations.
- Luxury yacht stanchions & architectural handrails — Ultra-high-gloss piano finish provides UV-stable elegance and marine-grade corrosion endurance.
- Industrial robotic guide arms — Allows direct mechanical bolting through the aluminum core while cutting moving arm inertia.
Why Choose YTCarbon
- Superior piano-mirror optical clarity. We employ specialized automotive-grade clear coat systems that exceed standard gloss finishes in depth, UV protection, and gloss retention.
- Guaranteed galvanic corrosion protection. Proprietary non-conductive interface barriers prevent electrochemical reaction between aluminum and graphite plies.
- Precision factory hole machining. High-speed CNC diamond routing provides factory-drilled internal routing apertures without frayed composite margins.
- Calibrated ±0.1mm dimensional control. Tight manufacturing control ensures seamless insertion into standard bike frame bottom brackets and seat collars.
- Fully customized extrusion mandrels. We support custom aerodynamic cross-sections, varied inner aluminum wall gauges, and cut-to-length services.
- ISO 9001 certified batch consistency. Every production batch undergoes torque testing, surface gloss metering, and ultrasonic bonding inspection.
Certifications
All hybrid composite tubes undergo cyclic fatigue testing, interface shear bond verification, and salt-spray corrosion auditing. Fabricated inside our ISO 9001 registered facility, all resin formulations, aluminum alloys, and coatings comply fully with RoHS environmental safety regulations, REACH directives, and CE international trade requirements. Inspection reports and material mechanical certificates are provided with production batches.
ISO 9001 · RoHS · REACH · CE Certified Quality
Production Process
Manufacturing high-integrity carbon aluminum hybrid tubing requires specialized interfacial preparation and multi-stage surface finishing:
-
- Aluminum Core Surface Passivation — Seamless 6061-T6 aluminum tubes are profiled, sandblasted, and treated with adhesive primers to ensure permanent composite fusion and isolate galvanic currents.
- Continuous Prepreg Layup — Alternating unidirectional and 3K twill continuous carbon fiber prepreg plies are tension-wrapped around the prepared metallic core.
- High-Pressure Thermal Co-Molding — Multi-cavity compression tooling cures the hybrid stack under calibrated pressure and heat (130°C) to consolidate the resin and eliminate interface voids.
- Multi-Axis CNC Machining — Automated diamond CNC router spindles drill internal wiring apertures, bottle cage boss clearance holes, and precision edge bevels within ±0.1mm.
- Multi-Stage Piano Mirror Finishing — Tubes receive automated wet sanding followed by dual high-solid acrylic clear coats, thermal curing, and diamond paste buffing for extreme optical depth.
- Dimensional & Optical QC — Laser micrometers audit outer profile dimensions within ±0.1mm while 60-degree gloss meters confirm consistent mirror reflectivity.
- Protective Sleeving & Export Packing — Custom anti-static scratch-resistant sleeves are fitted before cushioned packaging to prevent surface micro-scratches during international transit.

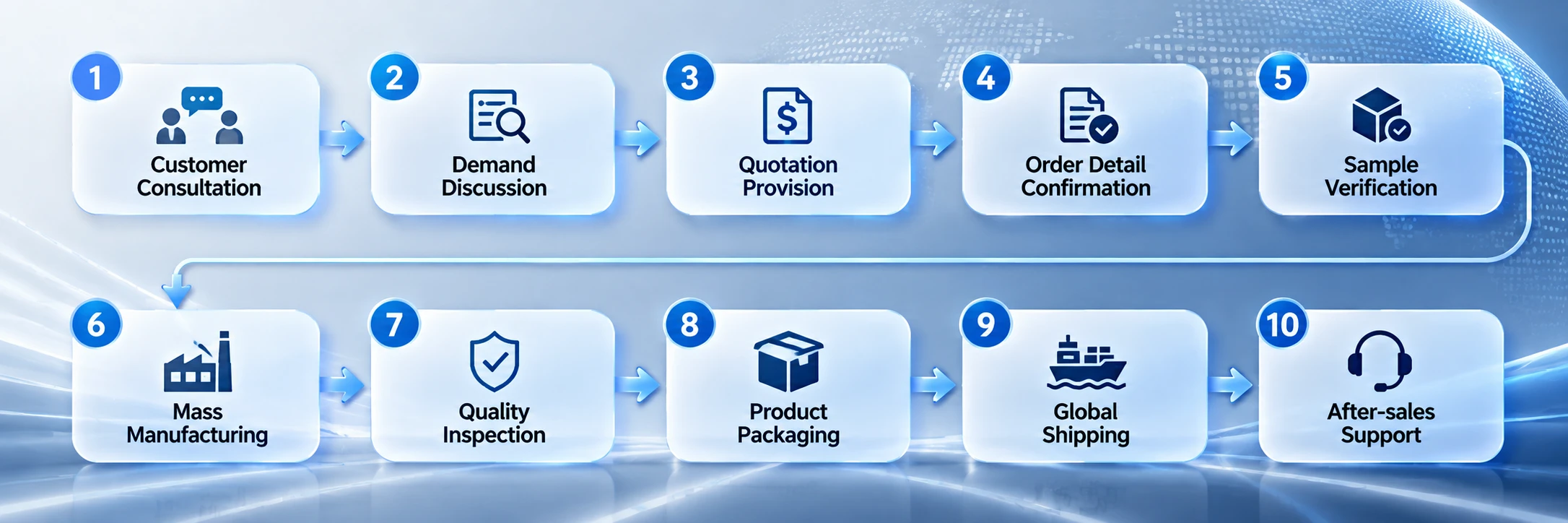

Carbon Aluminum Bicycle Tube Production Process
Frequently Asked Questions
Engineering & Hybrid Architecture
+ Why choose a carbon-aluminum hybrid tube over a 100% pure carbon tube?
+ Does galvanic corrosion occur between the internal aluminum core and carbon fiber?
+ How does your piano mirror finish differ from regular glossy carbon tubing?
Customization & Machining
+ Can YTCarbon supply tubes with pre-drilled internal routing apertures?
+ Can you customize the aerodynamic profile and aluminum core thickness?
+ What is the standard sample and production lead time?
Ready to Upgrade Your Bicycle Frame Lineup?
Source high-performance carbon aluminum hybrid bicycle tubes with deep piano mirror gloss direct from our Shenzhen factory. Send your CAD drawings for precision CNC hole layout and volume quotations.
