3mm Carbon Fiber Sheet | High Strength T700 / T300 CF Plate

Product Details

Strength-to-Weight Sweet Spot for Dynamic Structural Loads

The 3mm carbon fiber sheet sits at the critical engineering sweet spot between thin-plate flex and thick-plate mass. Specifically, at 3.0mm thickness, the laminate provides robust structural stiffness to resist dynamic loads while retaining sufficient elastic flex recovery to absorb sharp kinetic impacts without catastrophic brittle fracture. Consequently, it has become the benchmark standard for 5-inch FPV racing drone chassis, lightweight robotic arm linkages, and motorsport bracket assemblies where gram-level optimization is vital.

Direct M3 Fastener Engagement Without Brass Inserts

Thin composite plates usually require embedded helicoil or press-fit brass inserts to retain mechanical hardware. In contrast, our 3mm solid carbon fiber plate enables standard M3 screws to achieve approximately 2.5 full thread turns (calculated via 3.0mm thickness and a standard 0.5mm thread pitch). This thread depth provides reliable self-locking retention for covers, sensor plates, and light-duty enclosure mounts, substantially cutting fastener BOM costs and streamlining automated bench assembly.

High-Tensile T700 Grade for Extreme Impact Resistance

To accommodate demanding structural applications, we supply our 3mm plates in both standard T300 and premium T700 continuous fiber grades. Specifically, our T700 laminate delivers over 40% higher bending strength (≥850 MPa vs. ≥600 MPa) and superior interlaminar shear resistance compared to general-purpose carbon plates. As a result, engineers achieve maximum crash-worthiness and torsional rigidity under heavy cyclic stress without adding dimensional thickness or deadweight.

Specifications

Parameter	Specification
Product Type	High-Strength 3mm Carbon Fiber Sheet / Plate
Nominal Thickness	3.0mm (±0.08mm – ±0.1mm standard; precision ground ±0.05mm available)
Raw Material Grade	100% High-Grade Carbon Fiber (T700 / T300 options) + High-Tg Epoxy

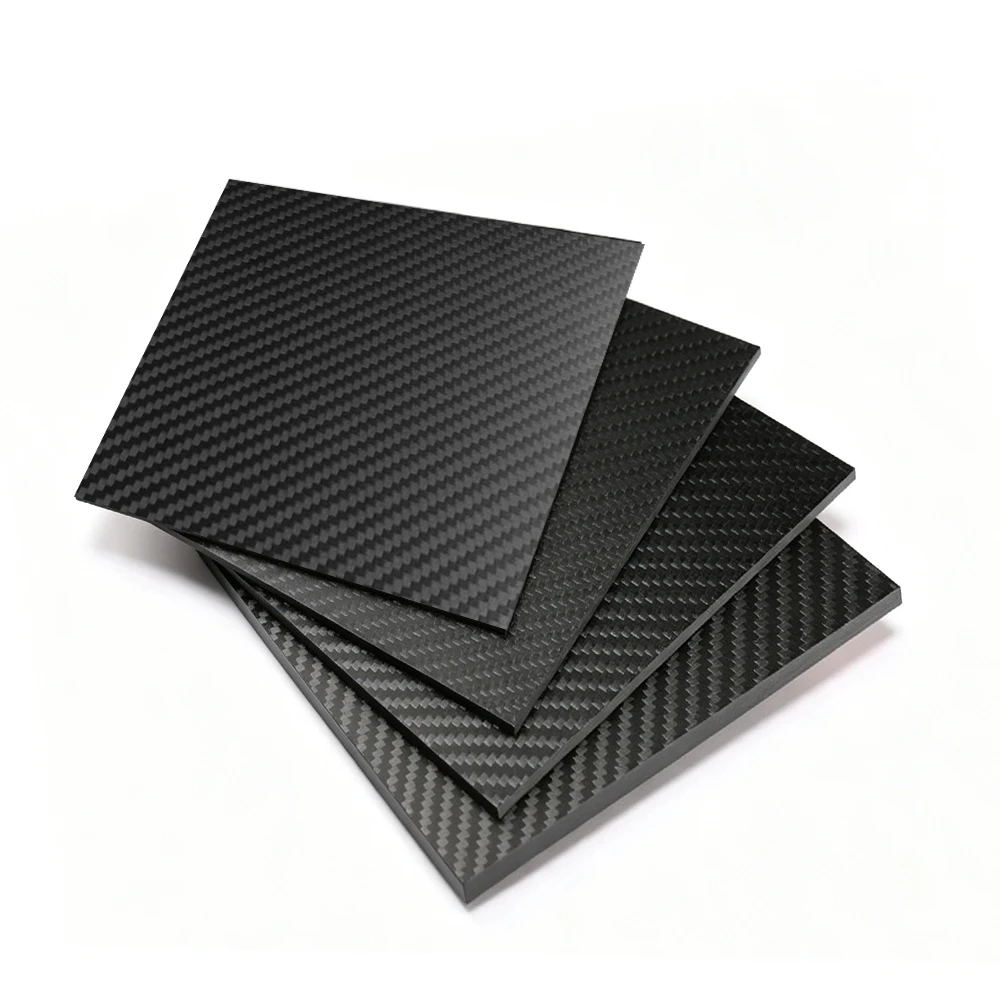

Weave & Surface Finish	3K Twill (2×2) / 3K Plain; Scratch-Resistant Matte or High Gloss
Fiber Volume Fraction	60% ± 3% (Void content < 1%)
Laminate Density	~1.50 g/cm³ (~4.5 kg/m² areal weight)
Ply Architecture	~10 balanced plies (0°/90° balanced or custom quasi-isotropic [0°/±45°/90°])
Mechanical Strength (T700)	Bending Strength ≥ 850 MPa \| Tensile Strength ≥ 900 MPa
Mechanical Strength (T300)	Bending Strength ≥ 600 MPa \| Tensile Strength ≥ 500 MPa
Fastener Integration	Direct M3 thread engagement (~2.5 full threads) or countersunk hardware
Standard & Max Dimensions	400x500mm, 500x500mm, 1000x1000mm (Custom compression pressing up to 3000x8000mm)
Secondary Machining	Spark-free CNC milling, edge beveling, countersinking, tapping, insert pressing

Applications

FPV racing drone main and bottom plates — 3mm T700 withstands high-velocity gate crashes and brutal landings without fracture while keeping the quad agile.
Robotic arm end-effectors and joint plates — Delivers structural rigidity for rapid positioning while buffering dynamic shock loads on servo actuators through micro-flex.
Motorsport and automotive lightweight brackets — Saves up to 40% weight compared to 5mm plates or heavy milled aluminum while providing excellent fatigue life.
CNC precision fixture and mounting plates — Directly accepts M3 self-locking hardware for permanent covers and brackets, reducing BOM parts count.
Industrial automation gantry plates — Provides high stiffness-to-weight performance to minimize motor inertia in high-speed pick-and-place systems.
Camera gimbals and stabilization rigs — Balances torsional stability with portable lightweight ergonomics for handheld cinematography setups.

Why Choose YTCarbon

Direct M3 fastener retention. 3mm plate thickness allows ~2.5 full thread engagements, eliminating brass inserts for light-duty assemblies.
Superior flex recovery under impact. Balanced resin matrix deforms elastically during shock events, dissipating energy rather than suffering brittle failure.
High-performance T700 grade option. Delivers 42% higher bending strength (≥850 MPa) than conventional T300 laminates for high-load structural uses.
Ultra-large press capabilities. In-house hydraulic pressing lines accommodate custom large-format composite panels up to 3000mm × 8000mm.
Clean, spark-free CNC machining. Dedicated CNC routing facilities deliver ±0.05mm tolerances, zero delamination, and smooth chamfered edges.
Direct factory pricing & full traceability. Fabricated completely in-house with certified ISO 9001 quality audits and raw material test data.

Certifications

Quality consistency and dimensional integrity are engineered into every 3mm carbon fiber sheet leaving our production floor. Operating under a certified ISO 9001 quality management framework, our composite panels are fully compliant with RoHS and REACH environmental mandates, as well as CE export directives. Comprehensive material inspection sheets, fiber volume fraction analysis, and precision caliper reports are supplied with every production batch upon request.

ISO 9001 · RoHS · REACH · CE Certified Quality

Production Process

Our 3mm carbon fiber plates are fabricated utilizing high-tonnage hydraulic hot-press consolidation. This industrial process compresses the laminate under controlled thermal ramps, maintaining void content under 1% and guaranteeing superior interlaminar bond strength. Here is our end-to-end manufacturing workflow:

Prepreg Preparation & Automated Cutting — Aerospace-grade T700 or T300 3K prepreg rolls are precision-cut into pattern plies via automated CNC digital oscillating cutters.
Engineered Multi-Ply Layup — Plies are stacked (~10 layers for 3.0mm nominal thickness) in climate-controlled cleanrooms following balanced [0°/90°] or quasi-isotropic configurations to prevent warping.
Vacuum Debulking & Consolidation — The stacked stack undergoes vacuum degassing at -0.095 MPa to extract trapped air pockets prior to the heating cycle.
High-Temperature Hot-Press Curing — Multi-ton hydraulic pressure and uniform 120°C–130°C heating fully crosslink the epoxy matrix, yielding high fiber volume density.
Demolding & Multi-Point Thickness Verification — After a controlled cooling sequence, plates are demolded and audited across 9 separate grid zones to ensure ±0.08mm to ±0.1mm thickness uniformity.

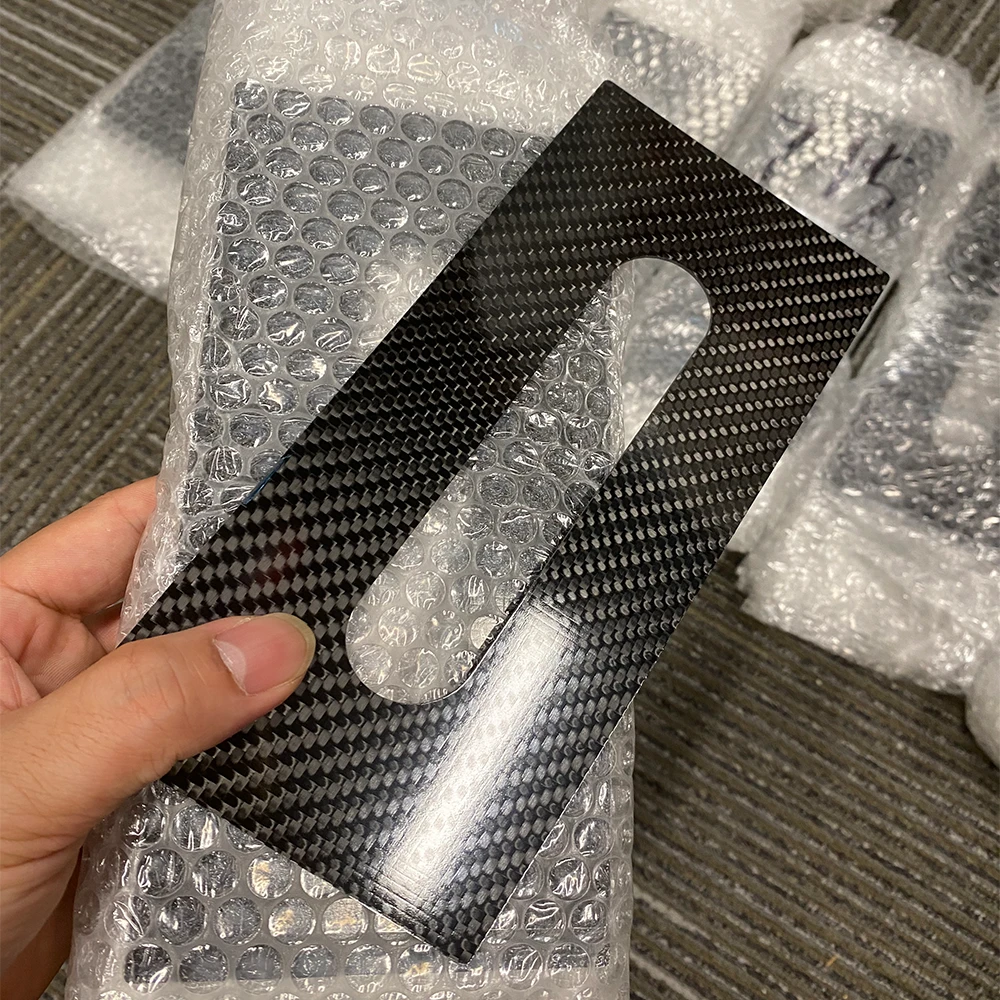

Multi-Axis CNC Machining & Tapping — High-speed diamond tooling mills custom perimeter profiles, countersinks, and direct M3 thread engagement with precision down to ±0.05mm.
Final Surface Audit & Packaging — Comprehensive optical inspection checks for pinholes and scratches, followed by dual-side PE protective film application and export crating.

3mm Carbon Fiber Sheet Production Process

Frequently Asked Questions

Thickness & Mechanical Performance

+ Why choose a 3mm carbon fiber sheet over 2mm or 5mm for drone frames?

A 3mm thickness hits the ideal structural balance point. A 2mm plate tends to flex excessively and snap during severe race gate impacts, making it suitable only for micro quads. On the other hand, a 5mm plate adds approximately 40% more deadweight, which directly impairs battery flight duration and agility. A 3mm T700 plate provides optimal stiffness for steady flight control while retaining adequate flex recovery to dissipate crash energy without delamination.

+ What is the structural weight difference between 3mm and 5mm carbon fiber sheets?

A 3mm carbon fiber panel weighs approximately 4.5 kg/m², compared to roughly 7.5 kg/m² for a 5mm panel—representing an immediate 40% weight reduction. While 5mm plates are stiffer due to section thickness, our 3mm T700 laminate delivers bending strength of ≥850 MPa, easily meeting structural yield limits for drone frames and EV components without deadweight penalties.

+ Does YTCarbon supply both T700 and T300 grades in 3mm thickness?

Yes, we maintain consistent raw material stock for both grades. Our T700 3mm sheet yields higher tensile (≥900 MPa) and bending strength (≥850 MPa), making it the premier option for competitive FPV frames, high-g robotic links, and structural brackets. For non-impact enclosures and general hardware, T300 offers exceptional rigidity and clean aesthetics at an economical cost.

Fastener Engagement & CNC Customization

+ Can a 3mm carbon fiber sheet hold M3 screws without brass inserts?

Yes. Standard M3×0.5 machine screws achieve approximately 2.5 full thread engagements inside a 3.0mm carbon plate. This provides sufficient holding power and self-locking friction for permanent covers, sensor mounts, and light brackets without adding brass insert hardware. However, for assemblies subject to severe vibration or continuous disassembly, press-fit metal inserts are still recommended.

+ What CNC machining capabilities do you offer for custom 3mm parts?

We provide comprehensive in-house CNC machining services from customer CAD files (.DXF, .DWG, .STEP). Capabilities include precision contouring (±0.05mm tolerance), 45-degree edge chamfering, countersunk screw bores, internal pocketing, thread milling, and high-contrast laser surface engraving.

+ What is the standard lead time for stock sheets vs. CNC custom parts?

Standard off-the-shelf plate sizes (e.g., 400x500mm, 500x500mm) typically ship within 3 business days. Custom-cut geometries, chamfered drone arms, and precision CNC parts generally require 7 to 10 business days depending on design complexity and tooling batch sizes.
