Product Details
The 2mm carbon fiber sheet is where structural performance starts getting serious. At this thickness you’re past the cosmetic covers and thin shims — this is a load-bearing panel for drone frames, machine guards, and equipment enclosures. It’s the thinnest spec most aerospace and defense projects accept for a structural part, and it’s the one thickness every carbon fiber buyer asks for first.
We build this 2mm panel with 5 layers of carbon fiber in a balanced twill or plain layup, pressed at 120°C under controlled pressure. Toray T300 is our standard — proven stiffness at the best value. Need higher modulus? Step up to T700, T800, or T1000. The result is a 60% fiber volume laminate with consistent properties edge to edge. We track resin content and fiber orientation on every batch, so when you reorder the same 2mm sheet six months later, it machines and performs identically.
Standard sizes are 500×500mm, 600×600mm, and 1000×1000mm — all in stock. Custom dimensions? No problem. Maximum goes up to 3000mm × 8000mm in a single piece, one of the largest capabilities from any Chinese manufacturer. Need something between 1mm and 3mm? We produce thin carbon fiber sheet across that full range — 0.2mm, 0.5mm, 1mm, 2mm, 3mm, 4mm — all from the same line, same quality standard.

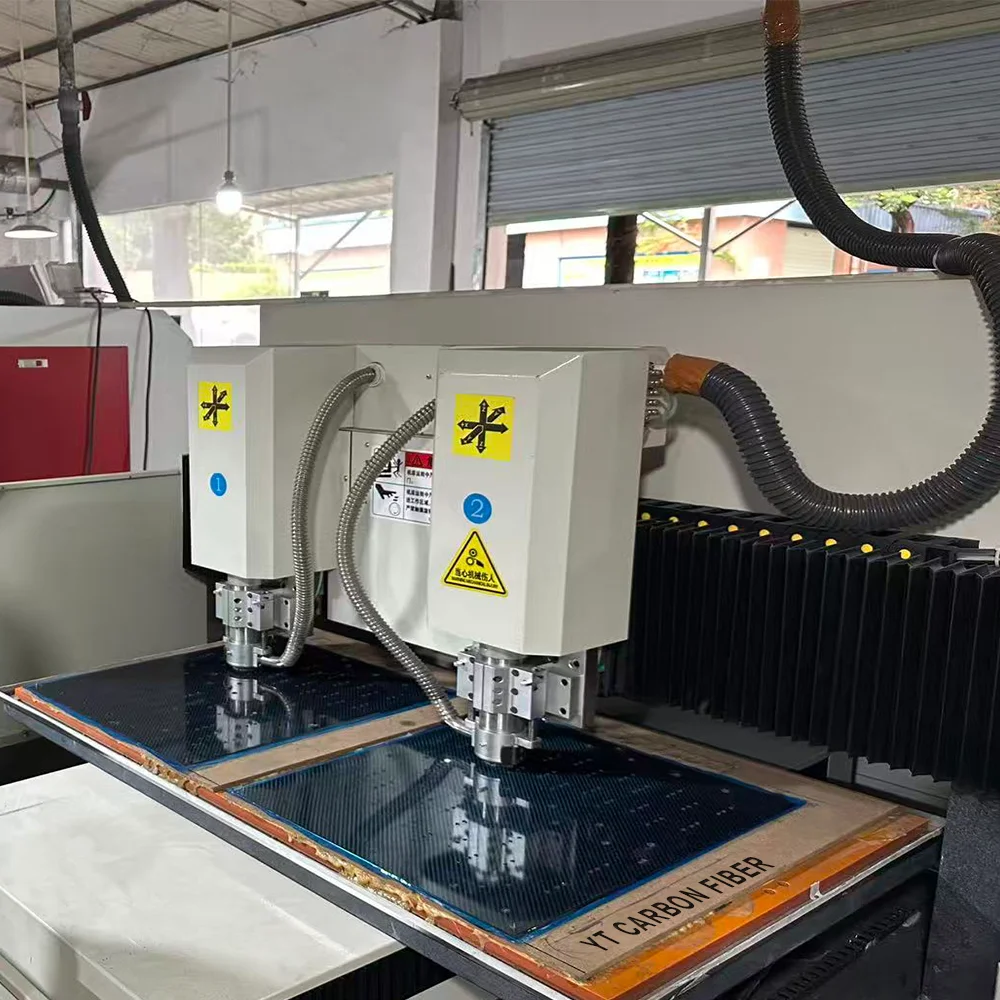

Surface options: matte, glossy, or one-side-each. For structural parts that get drilled, countersunk, or bonded — go matte. Better adhesion, hides handling marks. For visible components like dashboard panels or display housings, glossy brings out the weave. CNC machining available with ±0.05mm tolerance — send your drawing and get finished parts instead of raw blanks.
Specifications
| Specification | Details |
|---|---|
| Material | 3K Toray T300 / T700 / T800 / T1000 |

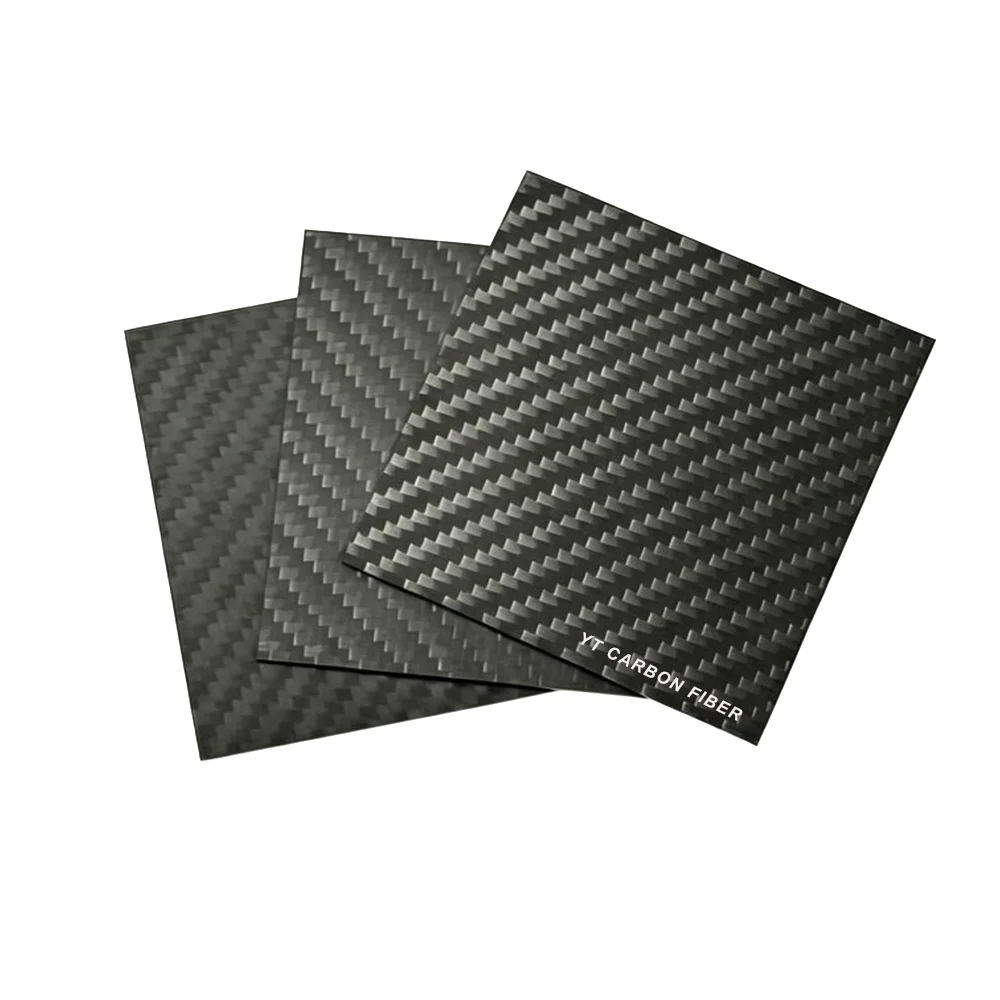

| Weave Pattern | 2/2 Twill / Plain (optional) |

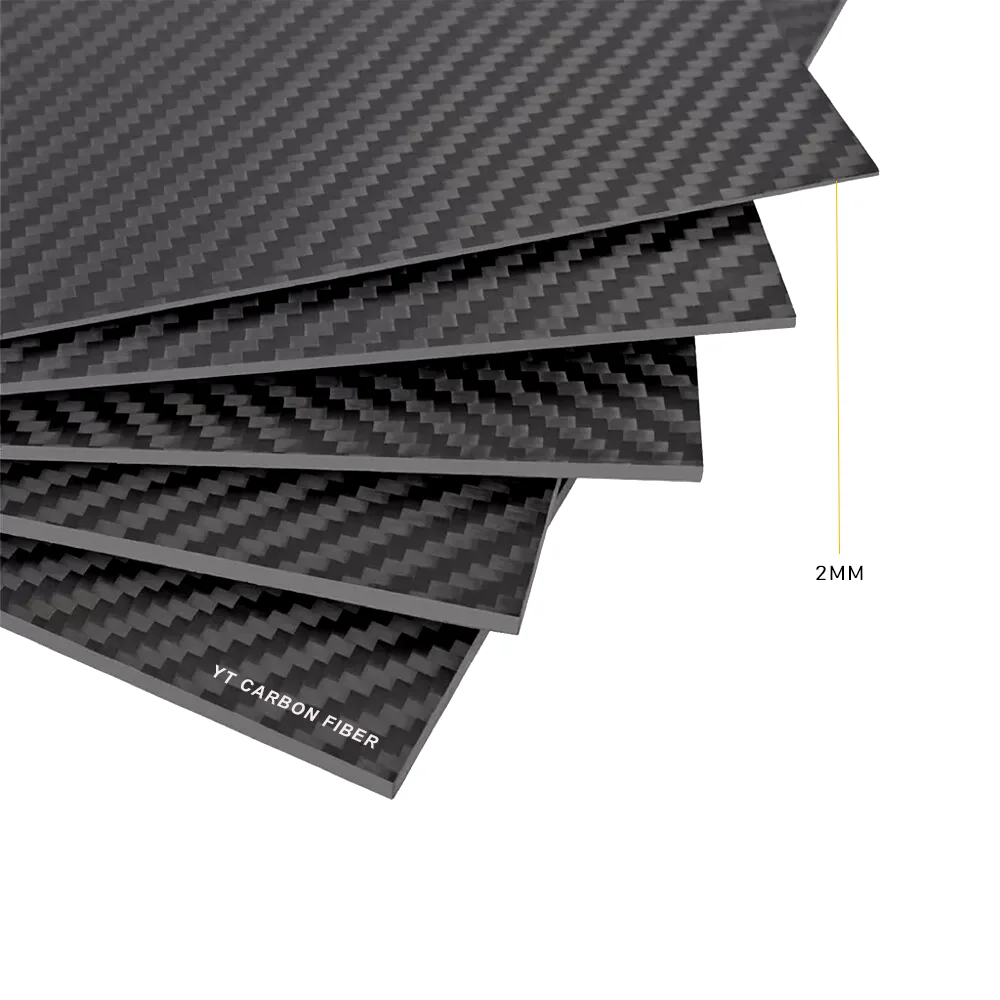

| Thickness | 2.0mm (±0.05mm) |
| Layup Layers | 5 plies |
| Max Sheet Size | 3000mm × 8000mm |

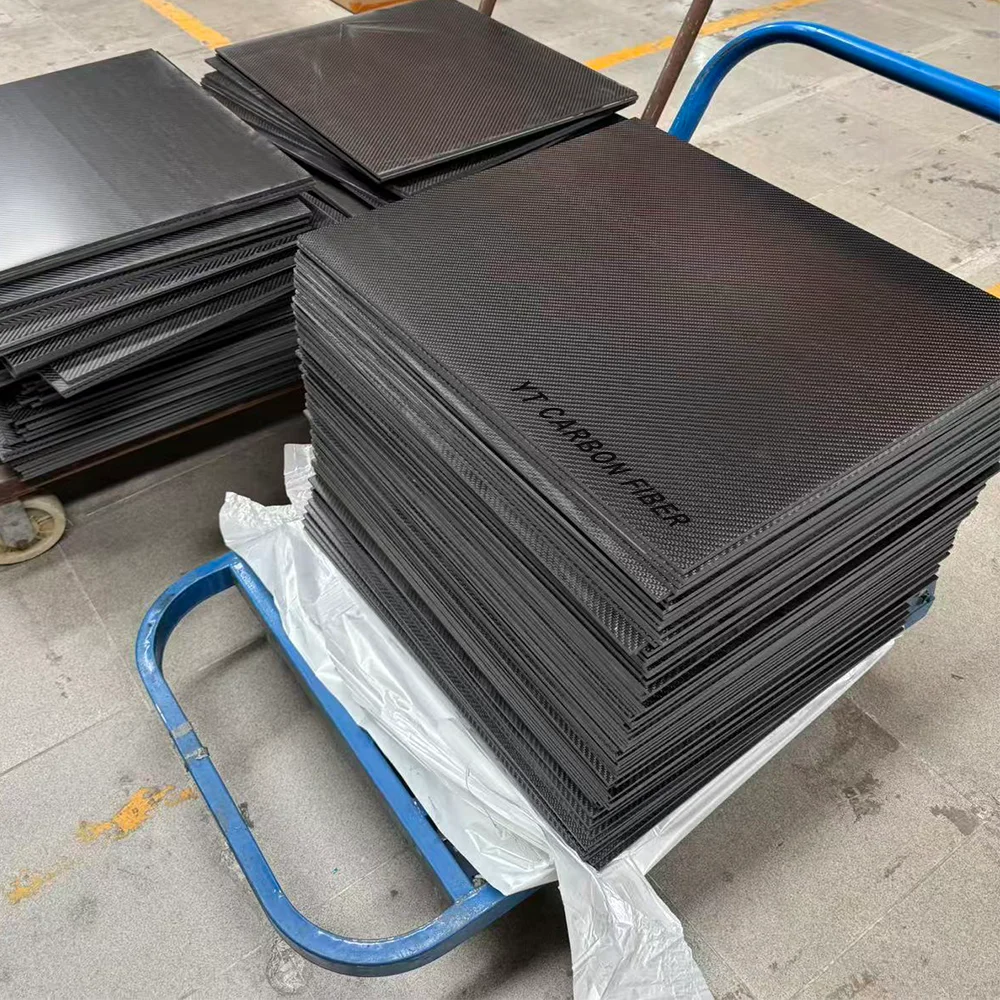

| Standard Sizes | 500×500mm / 600×600mm / 1000×1000mm |
| Custom Sizes | Available on request |
| Fiber Volume Fraction | 60-65% |
| Resin System | Epoxy (120°C cure) |
| Surface Finish | Matte / Glossy / One-side each |
| Density | 1.55-1.60 g/cm³ |
| Tensile Strength | ≥ 3500 MPa |
| Flexural Strength | ≥ 1200 MPa |
| Operating Temperature | -40°C to 120°C |
Applications
- Aerospace structural panels — 2mm is the minimum thickness most aerospace projects accept for load-bearing parts. Aircraft interior panels, satellite brackets, UAV wing skins — every gram counts and every part needs traceable material data
- Drone frame plates — The go-to thickness for center plates, top plates, and structural ribs on industrial and commercial UAVs. Stiff enough to kill arm-induced vibration, thin enough to keep all-up weight competitive
- Robotic arm links — 2mm carbon fiber board replaces 4-5mm aluminum at one-third the weight. Low inertia means faster response and less motor wear on precision robots
- Automotive interior trim — Dashboard overlays, center console panels, and decorative pieces where a thin rigid panel is needed without adding bulk to the vehicle
- Medical equipment housings — Lightweight enclosures for portable diagnostic devices. Low X-ray attenuation makes this thin CF panel suitable for imaging equipment covers too
Why Choose YTCarbon
- One plant, full control. We press our own carbon fiber sheet from raw tow — T300, T700, T800, T1000 available — then CNC machine every part in the same facility. No trading companies in the chain, no unknown quality, no batch-to-batch variance. We exhibited at the 2025 World UAV Expo — see what a real carbon fiber factory puts on the table
- 3m × 8m max panel size. One of the largest single-piece press capabilities in China. If your project needs an uninterrupted carbon fiber panel without joints, we produce it
- Tight thickness tolerance. ±0.05mm on a 2mm sheet. That’s 2.5% — tight enough for precision CNC programs and bonded assemblies where gap control matters
- ISO 9001 certified. Independently audited quality system. Material Test Reports available on request for traceable documentation
- No MOQ on standard sizes. One piece for prototyping, a thousand for distribution. Same material, same process, same quality standard on every order
Certifications
Every sheet we ship carries documented quality credentials. Our facility holds ISO 9001 certification, and our carbon fiber materials are RoHS and CE compliant — required for EU market access and traceable documentation. Need a copy? Just ask and we’ll send the PDF.

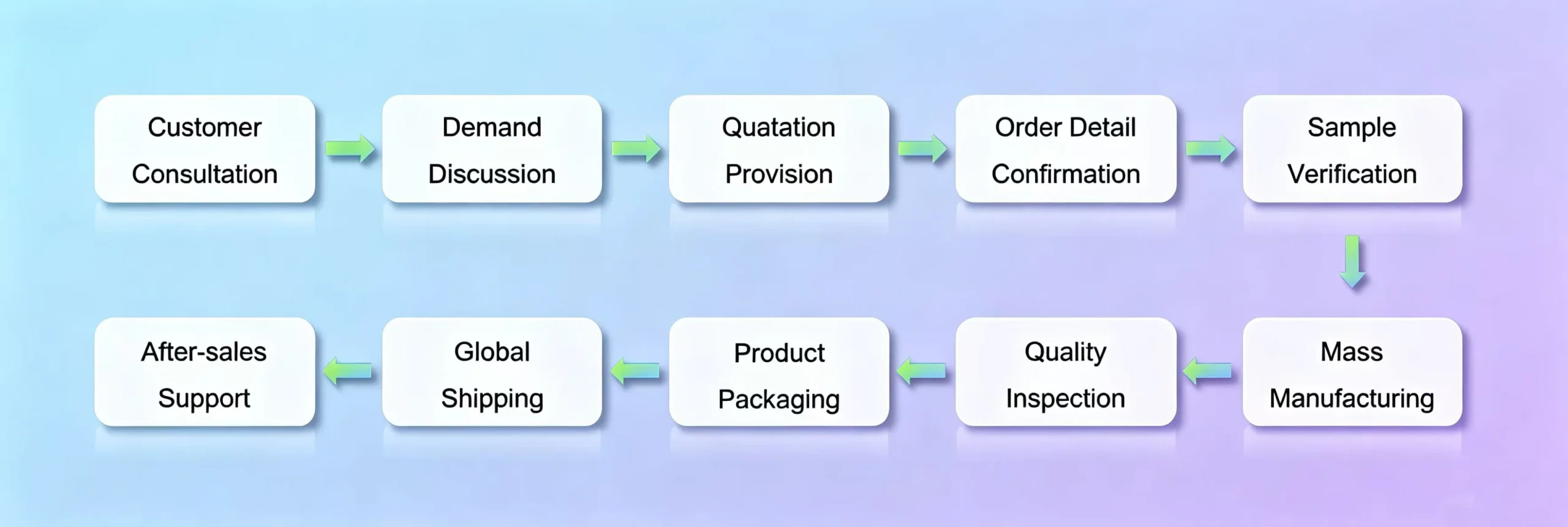

How to Order
Working with us is straightforward. Send your requirements — size, thickness, quantity, surface finish — and you’ll get a detailed quote within 24 hours. Need samples first? We ship small test pieces at cost so you can verify the material before committing to a production run. Once you approve, we schedule production, run QC on every panel, and ship with full tracking. No surprise costs, no communication gaps, no waiting weeks for a reply.
Frequently Asked Questions
+ Is 2mm the right thickness for my project?
+ What does “aerospace grade” mean for a 2mm carbon fiber panel?
+ Can you CNC machine parts from this 2mm CF sheet?
+ How does a 2mm carbon fiber sheet compare to aluminum?
+ What surface finish should I choose?
Need a Custom 2mm Carbon Fiber Sheet?
Custom sizes, CNC machining, surface finishes, and OEM branding. From a single prototype sheet to full production runs — contact us with your requirements.
