What Makes Micro Carbon Fiber Tubes Different

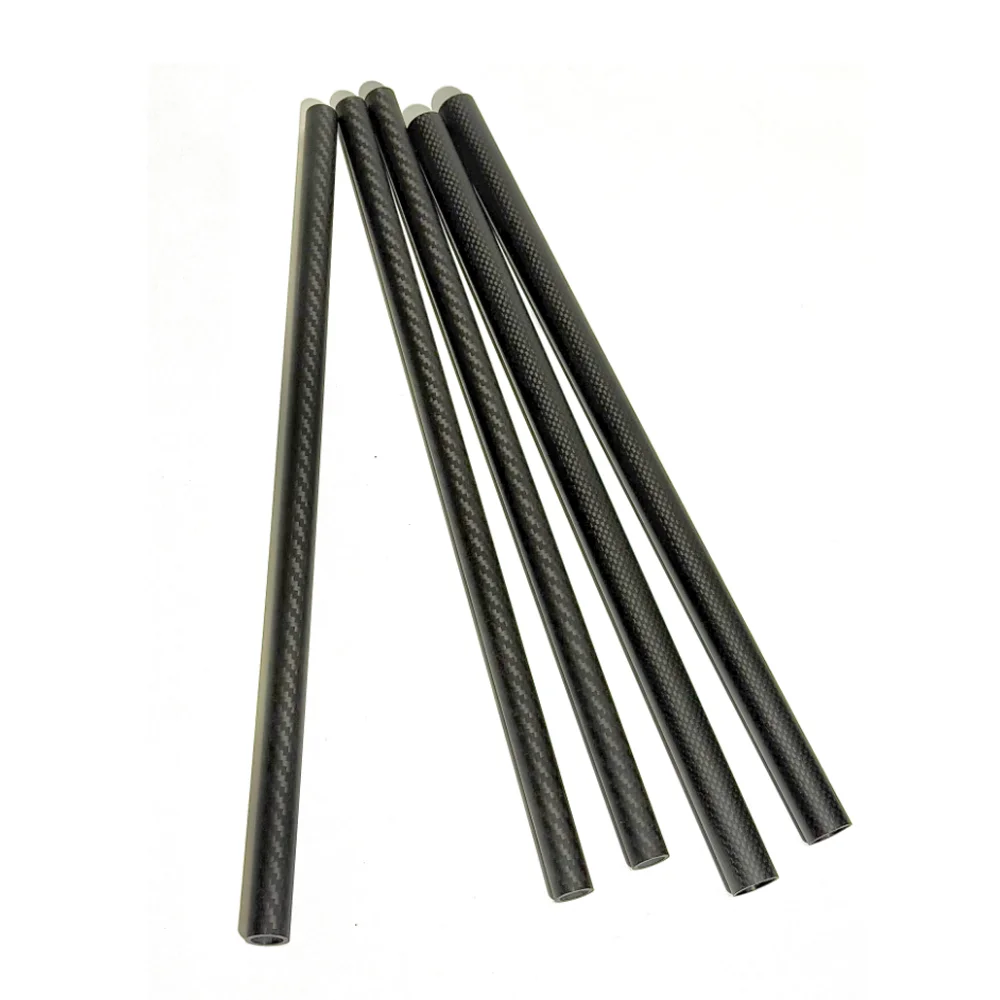

Micro carbon fiber tubes are engineered for applications where every millimeter matters. Specifically, with inner diameters starting at just 2.5mm, these ultra-compact tubes deliver the same strength-to-weight ratio as standard carbon fiber tubes — but in a form factor small enough for precision instruments, micro drones, and medical devices. In fact, few manufacturers can produce tubes this small with consistent wall thickness and surface quality, which makes micro carbon fiber tubes a genuinely specialized product.
Roll-Wrapped vs. Pultruded Construction
Furthermore, our micro carbon fiber tubes are available in both roll-wrapped and pultruded construction. On one hand, roll-wrapped micro tubes offer superior concentricity and customizable layup orientation, making them ideal for structural applications that demand precise load handling. On the other hand, pultruded micro tubes provide excellent axial strength at a lower cost — perfect for pushrods, linkages, and straight structural members. In addition, both types are available in T300 and T700 carbon fiber grades, with glossy or matte finishes.
Manufacturing at Micro Scale
As a result of the small dimensions, manufacturing tubes at this scale presents unique challenges. For instance, the mandrels used are extremely thin, and maintaining uniform resin distribution across such small diameters requires precise temperature and tension control throughout the curing process. Therefore, at YTCarbon, we have invested in specialized tooling and quality inspection equipment specifically for micro tube production. Consequently, even our smallest tubes meet the same quality standards as our full-size products.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Micro Carbon Fiber Tube |
| Inner Diameter | 2.5mm – 10mm |
| Outer Diameter | 3mm – 12mm |
| Wall Thickness | 0.25mm – 1mm |
| Maximum Length | 3000mm (roll-wrapped) / 4000mm (pultruded) |
| Carbon Fiber Grade | T300 / T700 |
| Surface Finish | Glossy or Matte |
| Weave Pattern | 3K Twill / Plain / UD (Pultruded) |
| Manufacturing Process | Roll-wrapped or Pultruded |
| Concentricity Tolerance | ≤0.1mm |
| Customization | Full dimensional and material customization |
Applications
- FPV micro drones — Frame arms and structural linkages for 65mm–85mm whoop-class drones. Micro carbon fiber tubes cut frame weight by up to 40% compared to aluminum alternatives, directly translating to longer flight times and faster response
- RC model linkages — Pushrods, control horns, and servo linkages for RC aircraft, cars, and boats. The 2.5mm minimum ID fits standard M2.5 hardware while providing rigidity that plastic rods cannot match
- Medical instruments — Endoscope shafts, surgical guide tubes, and diagnostic probe housings. Carbon fiber is X-ray translucent, non-magnetic, and biocompatible — critical for imaging and MRI-compatible equipment
- Precision measurement tools — Calibration pins, gauge tubes, and alignment shafts where dimensional stability under temperature change is essential. Carbon fiber’s near-zero thermal expansion outperforms both steel and aluminum
- Fiber optic protection — Rugged outer sleeves for delicate fiber optic cables in harsh environments. The thin wall maximizes internal clearance while providing crush resistance and EMI shielding
- Micro robotics — Structural arms and joint shafts for miniature robotic systems where weight and precision are equally critical
Why Choose YTCarbon
- 2.5mm minimum ID capability. Very few carbon fiber manufacturers can produce tubes with inner diameters below 3mm. Our specialized mandrels and process controls make 2.5mm ID production reliable and repeatable — this is a genuine capability advantage, not a marketing claim
- Factory direct pricing. As the manufacturer, we eliminate middleman markups and pass savings directly to you. No trading companies in the chain, no unknown quality
- Tight concentricity control. We maintain ≤0.1mm concentricity tolerance on all micro tubes, verified by precision measurement equipment on every production batch. Consistent wall thickness means consistent performance
- Both processes available. Choose roll-wrapped for complex layup requirements and superior concentricity, or pultruded for maximum axial strength at a lower cost. We help you pick the right process for your application
- Fast turnaround. Standard micro tube production completes in 7–15 business days, with rush options for urgent projects. We confirm exact timelines at order placement
- Global export experience. Protective packaging designed for international shipping to customers worldwide. We handle export documentation and logistics support
Certifications
First of all, we maintain strict quality standards throughout our manufacturing process. Specifically, our facility operates under ISO 9001 quality management systems, ensuring consistent product quality from raw material selection through final inspection. Moreover, every batch of micro carbon fiber tubes goes through dimensional verification, concentricity measurement, and surface quality inspection. In addition, our materials are RoHS and CE compliant — required if you sell into the EU or supply customers who need traceable material documentation. Finally, need a copy for your records? Just ask and we will send the PDF.
ISO 9001 · RoHS · CE Certified
Production Process
To begin with, micro carbon fiber tube production demands tighter process control than standard tube manufacturing. Namely, the smaller the diameter, the more sensitive the process becomes to variations in resin content, winding tension, and curing temperature. Here is how we ensure quality at every step:
- Mandrel Preparation — Precision-ground steel mandrels with diameters as small as 2.5mm, surface-polished to prevent sticking
- Prepreg Cutting — Carbon fiber prepreg cut to narrow widths matching the small circumference, minimizing overlap and resin buildup
- Roll Wrapping / Pultrusion — Material applied under controlled tension with precision overlap; pultruded tubes drawn through a heated die for consistent cross-section
- Vacuum Bagging — Applied vacuum pressure ensures even consolidation and eliminates voids in thin walls
- Oven Curing — Temperature-controlled curing cycle optimized for thin-wall sections to prevent resin migration
- Demolding — Careful extraction from the mandrel using compressed air to avoid wall damage on small-diameter tubes
- Surface Finishing — Sanding and clear-coating for glossy or matte finish

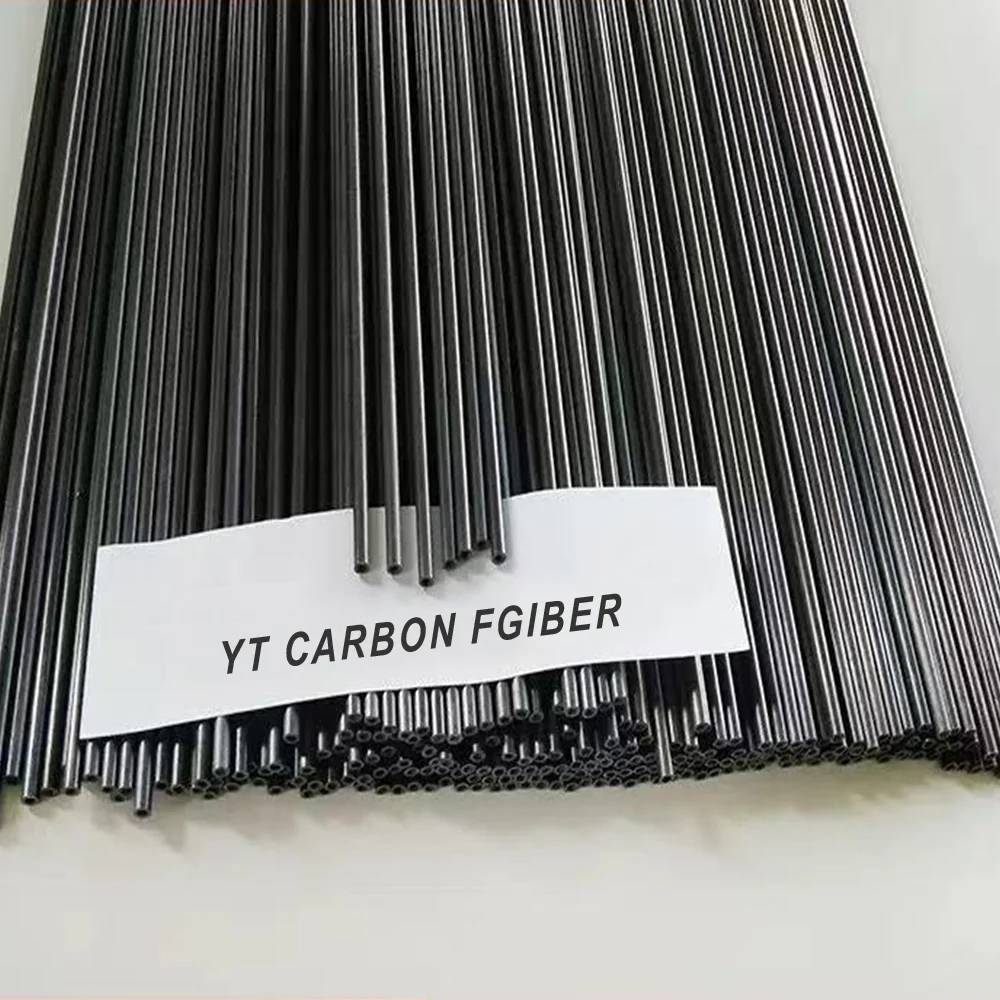

- Quality Inspection — Optical measurement of ID, OD, wall thickness, and concentricity on every batch
Micro Carbon Fiber Tube Production Process
Frequently Asked Questions
+ What is the smallest inner diameter you can produce?
+ Should I choose roll-wrapped or pultruded micro tubes?
+ Can you produce micro carbon fiber tubes with custom dimensions?
+ What wall thickness options are available for micro tubes?
+ How do you ensure quality on such small tubes?
+ Do you provide samples before placing bulk orders?
