Product Details
Visual Elegance and Mirror-Polish Finish
A glossy carbon fiber sheet performs exceptionally well while presenting an immaculate visual appeal. Specifically, its mirror-polish finish transforms the weave pattern into a prominent feature, ensuring every tow, crossing, and diagonal line appears sharp and deep under clear resin. Furthermore, this sheet serves applications where carbon fiber functions as the primary visual product rather than an invisible substrate.
Precision Polishing and Optical Clarity
This high-gloss appearance originates from precision polishing executed after the pressing stage. We process standard laminates through a multi-step polishing sequence that removes surface imperfections and brings the resin to optical clarity. Consequently, the protective 30 to 50 micron resin layer keeps the weave visually crisp while guarding against minor handling marks.
Identical Structural Performance to Matte Sheets
Many buyers overlook the fact that glossy and matte sheets share identical structural properties. Specifically, they utilize the same fibers, resin systems, volume fractions, and tensile strengths. Therefore, polishing affects only the surface level, meaning a polished carbon board carries structural loads just as effectively as a matte counterpart.
Specifications
| Specification | Details |
|---|---|
| Material | 3K Toray T300 / T700 / T800 / T1000 carbon fiber |
| Weave Pattern | 2/2 Twill / Plain (optional) |
| Thickness | 0.2mm – 50mm+ (custom) |
| Max Sheet Size | 3000mm × 8000mm |
| Standard Sizes | 500×500mm / 600×600mm / 1000×1000mm |
| Custom Sizes | Available on request |
| Fiber Volume Fraction | 60-65% |
| Resin System | Epoxy (120°C cure) |
| Surface Finish | Glossy (mirror polish) / Glossy both sides / Glossy + Matte combo |
| Surface Gloss Level | 85-95 GU @ 60° (glossy side) |
| Density | 1.55-1.60 g/cm³ |
| Tensile Strength | ≥ 3500 MPa |
| Flexural Strength | ≥ 1200 MPa |
| Operating Temperature | -40°C to 120°C |
Applications
- Automotive trim and interiors — Dashboard overlays and console panels feature mirror finishes that meet high-end consumer expectations.
- Consumer electronics housings — Polished laptop shells and headphone cups leverage visible carbon weaves to signal premium build quality.
- Luxury goods and accessories — Watch cases and lifestyle shells compete with polished metals and lacquered wood at a fraction of the weight.
- Architectural and interior design — Large wall panels and display fixtures create dynamic visual effects as lighting shifts across commercial spaces.
- Exhibition and display fixtures — Trade show booths and museum cases utilize mirror-polish surfaces to photograph exceptionally well.
Why Choose YTCarbon
- One plant, full control. We press and machine every sheet in-house, ensuring zero batch variance, as demonstrated at the 2025 World UAV Expo.
- Multi-step mirror polish. Our controlled polishing sequence delivers a consistent 85–95 GU gloss level completely free of dull spots.
- 3m × 8m max sheet size. We maintain massive press capabilities to deliver uninterrupted high-gloss boards without visible joint lines.
- Protective film on every sheet. All glossy items ship with a peel-off protective film to guard against scratches during transit and fabrication.
- ISO 9001 certified. Independently audited quality management systems provide reliable gloss measurement and inspection reports upon request.
Certifications
Every sheet we ship includes complete quality documentation. Furthermore, our facility operates under ISO 9001 certification, and our materials comply fully with RoHS and CE standards, ensuring absolute regulatory compliance.

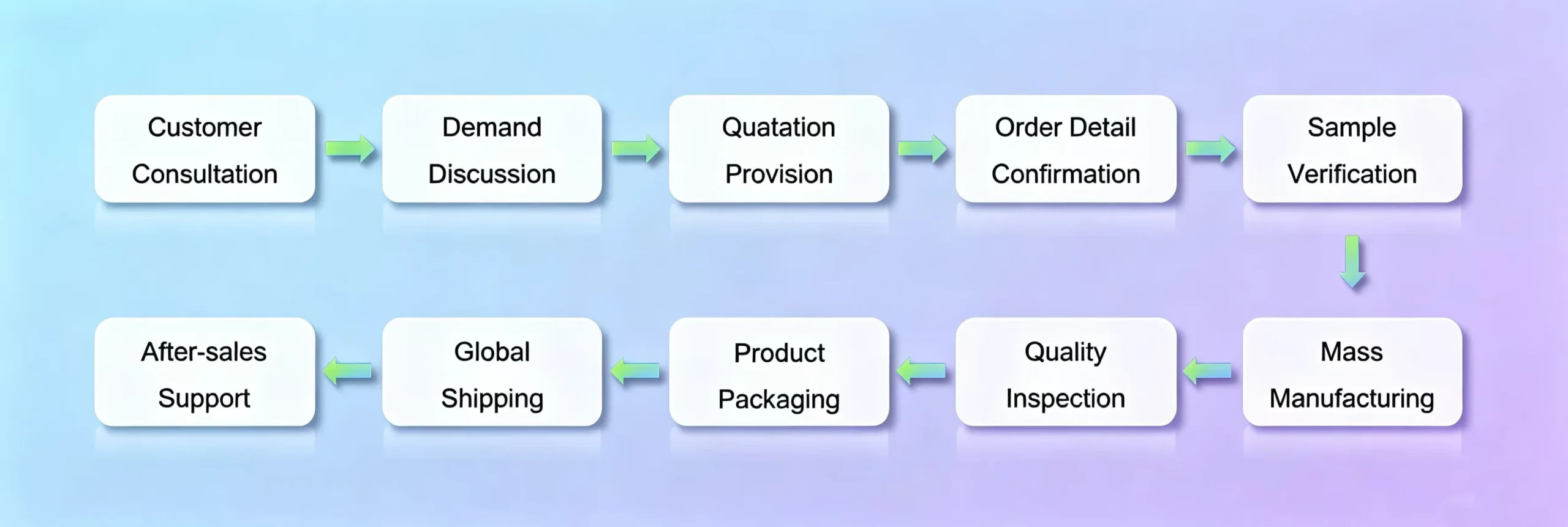

How to Order
Working with our direct factory team skips middleman markups. Simply submit your thickness, size, and surface finish requirements to receive a detailed quote within 24 hours. Afterwards, we manufacture, inspect, and dispatch your order securely with protective film.
Frequently Asked Questions
+ How do you achieve the mirror finish on a carbon fiber sheet?
+ Does the glossy finish scratch easily?
+ Is a glossy carbon fiber board weaker than a matte one?
+ Can I get glossy on one side and matte on the other?

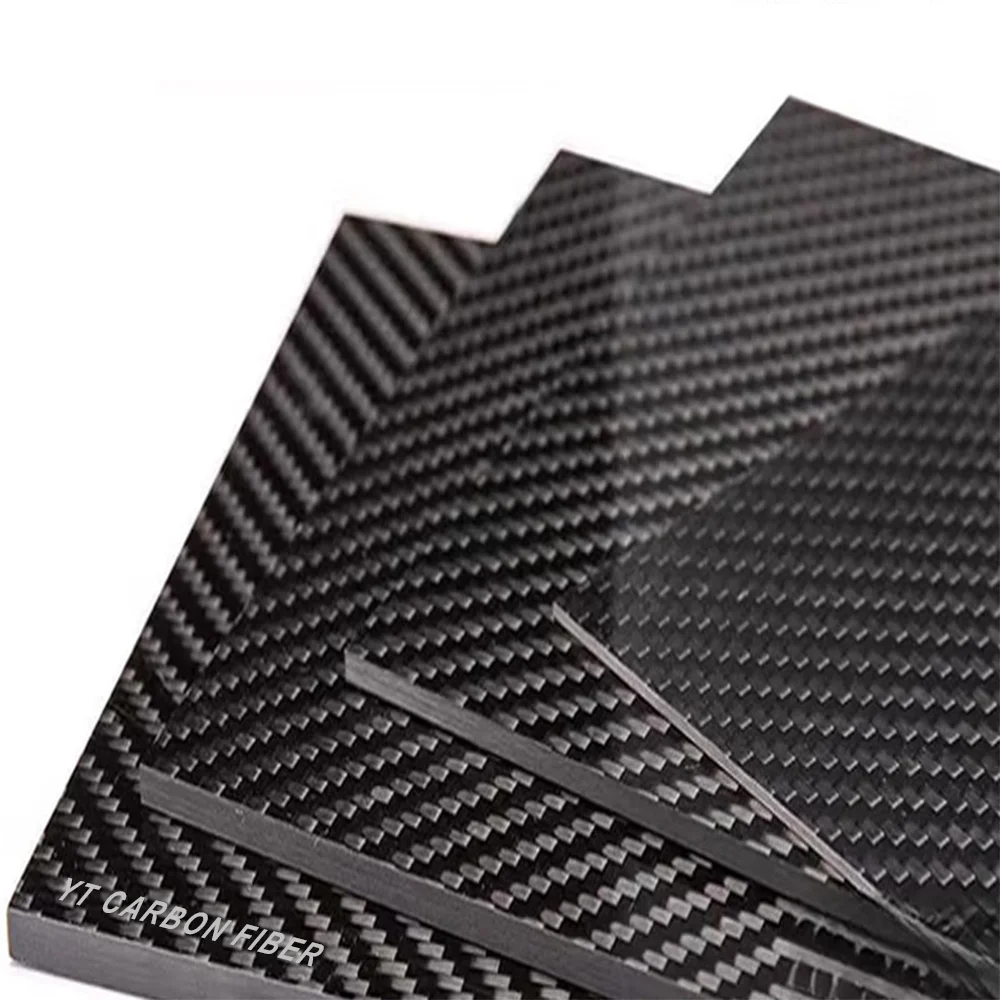

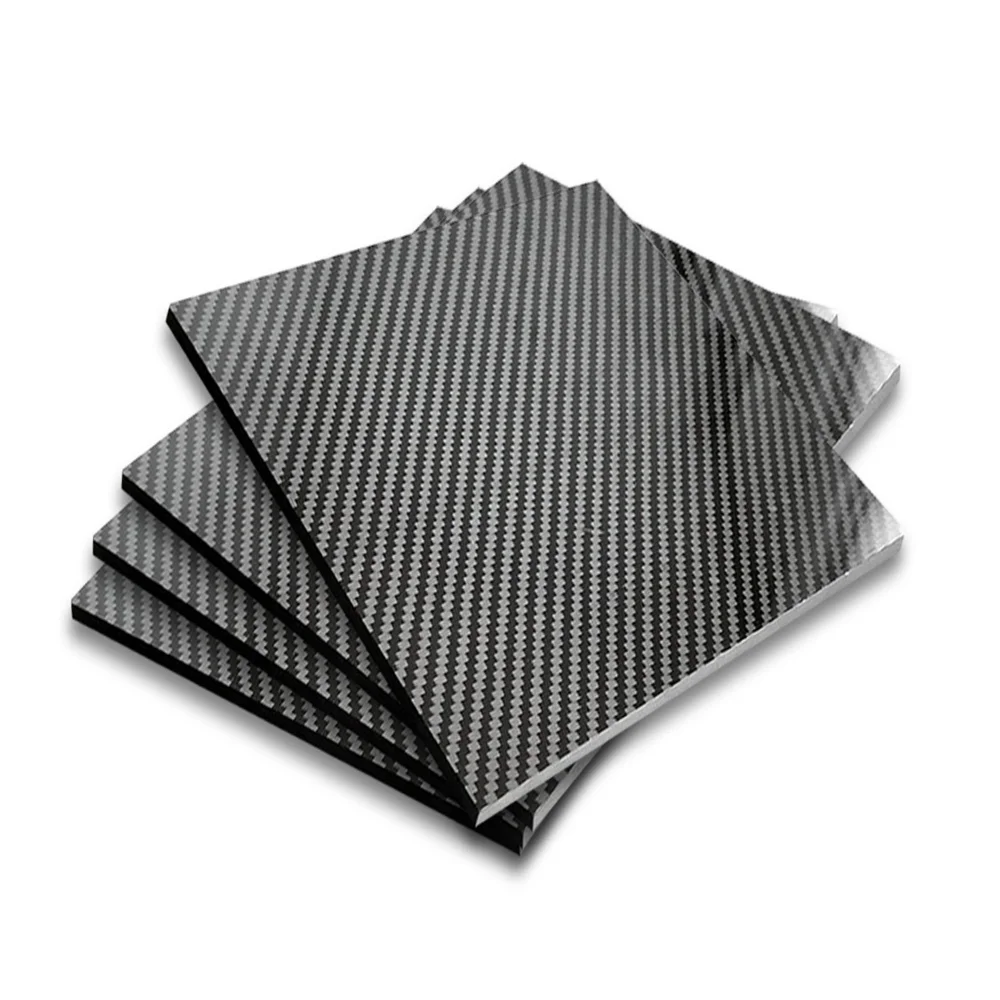

+ What weave pattern looks best under a glossy finish?

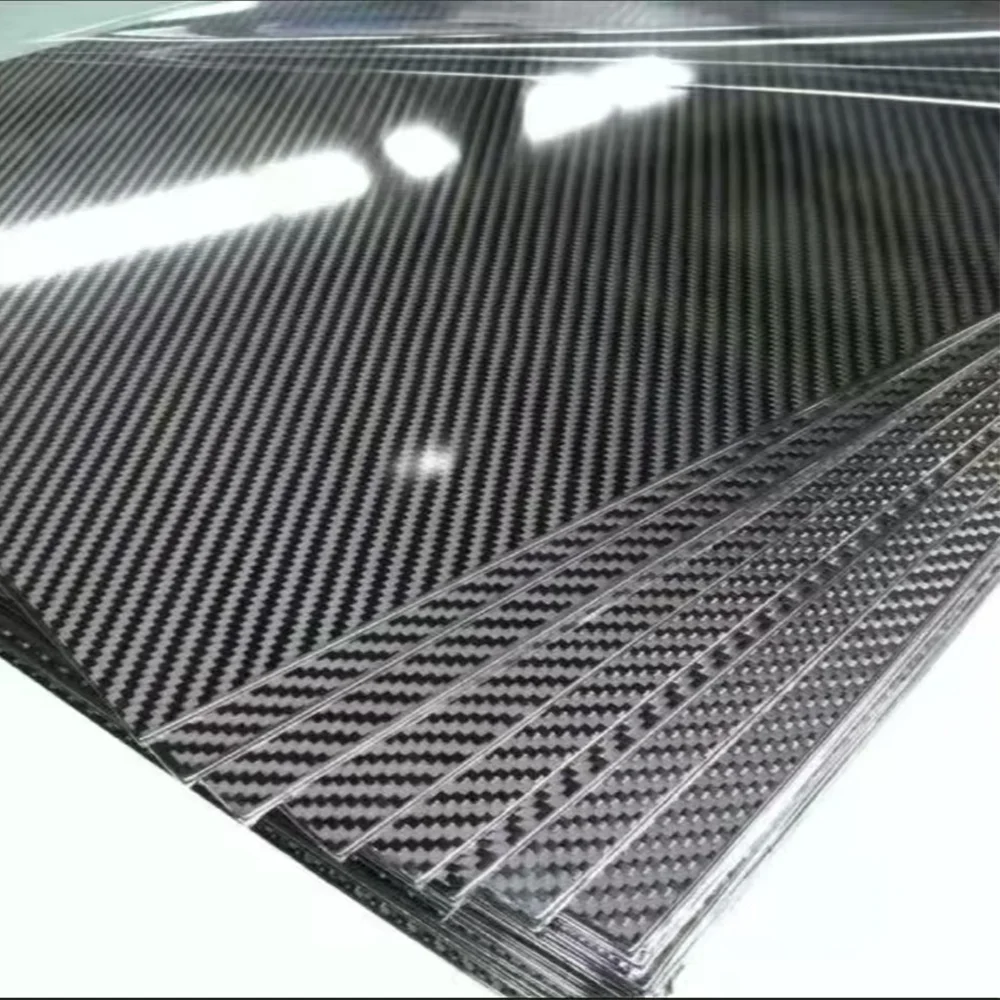

+ Do you ship glossy sheets with protective film?
Need a Custom Glossy Carbon Fiber Sheet?
We offer mirror-polish both sides, glossy/matte combo, custom sizes, and CNC machining. From a single prototype to full production runs — contact us with your requirements.
