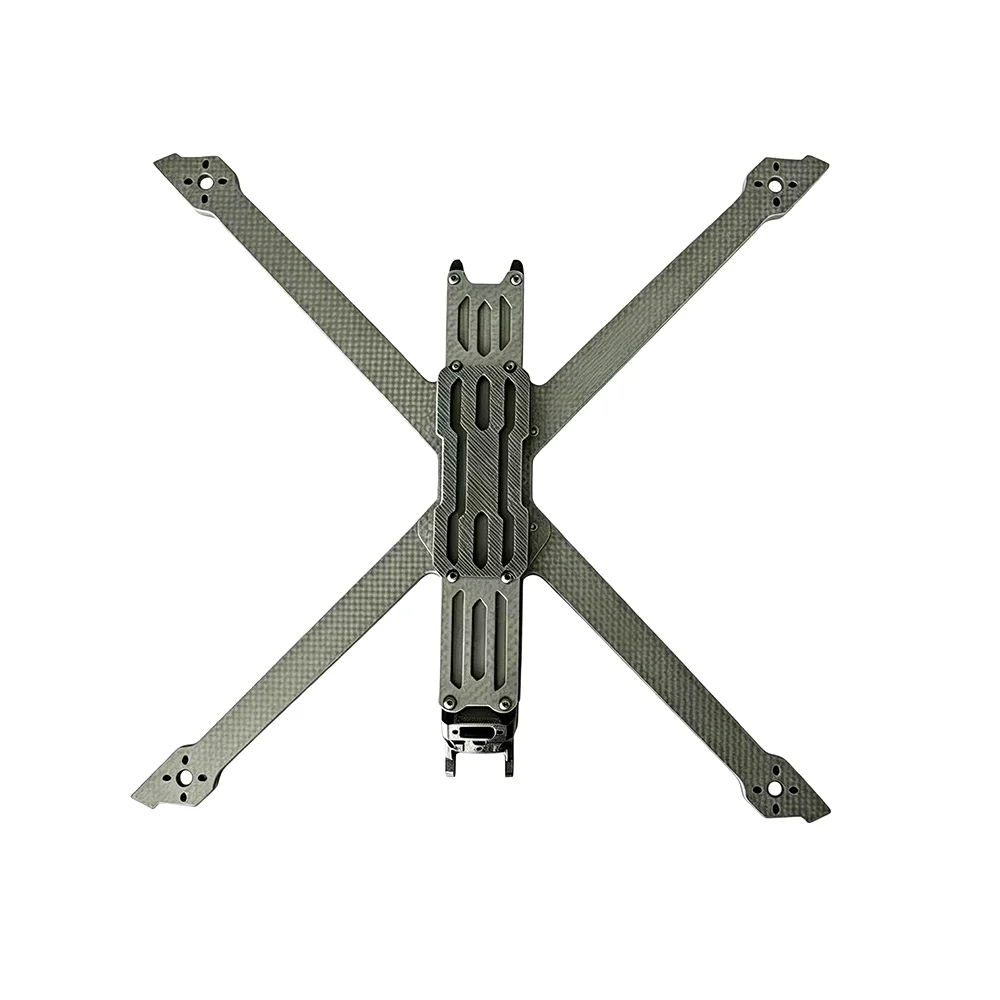

True-X Geometry for Balanced Handling
The FX 10 inch FPV carbon fiber frame uses a True-X layout with a 419mm wheelbase, meaning all four arms sit at equal angles. This geometry delivers symmetrical flight characteristics — the drone responds identically whether you roll left or right, pitch forward or back. For freestyle pilots, this predictability is what makes the difference between a clean flip and a messy recovery. The 419mm wheelbase provides enough prop clearance for 10-inch props without the awkward handling of larger cinema frames.

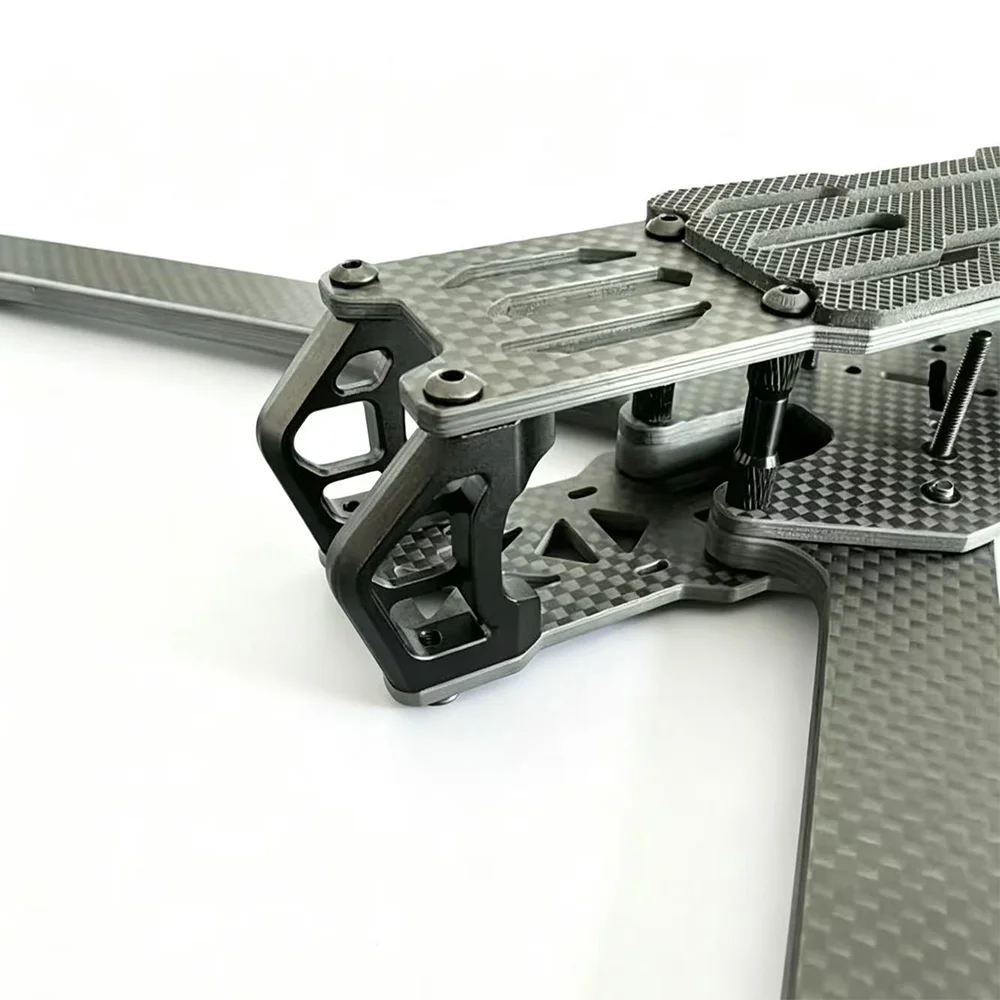

6mm Arms Built for Impact
Most 10-inch FPV frames use 5mm arms. We went with 6mm on the FX series because 10-inch props generate more torque and longer arms flex more under load. The extra millimeter eliminates mid-flight wobble and dramatically improves crash survival. Each arm is CNC cut from our in-house produced 3K twill carbon fiber sheets — we press the raw prepreg, cure the sheet, then machine the arm. Full material traceability from fiber to finished frame.

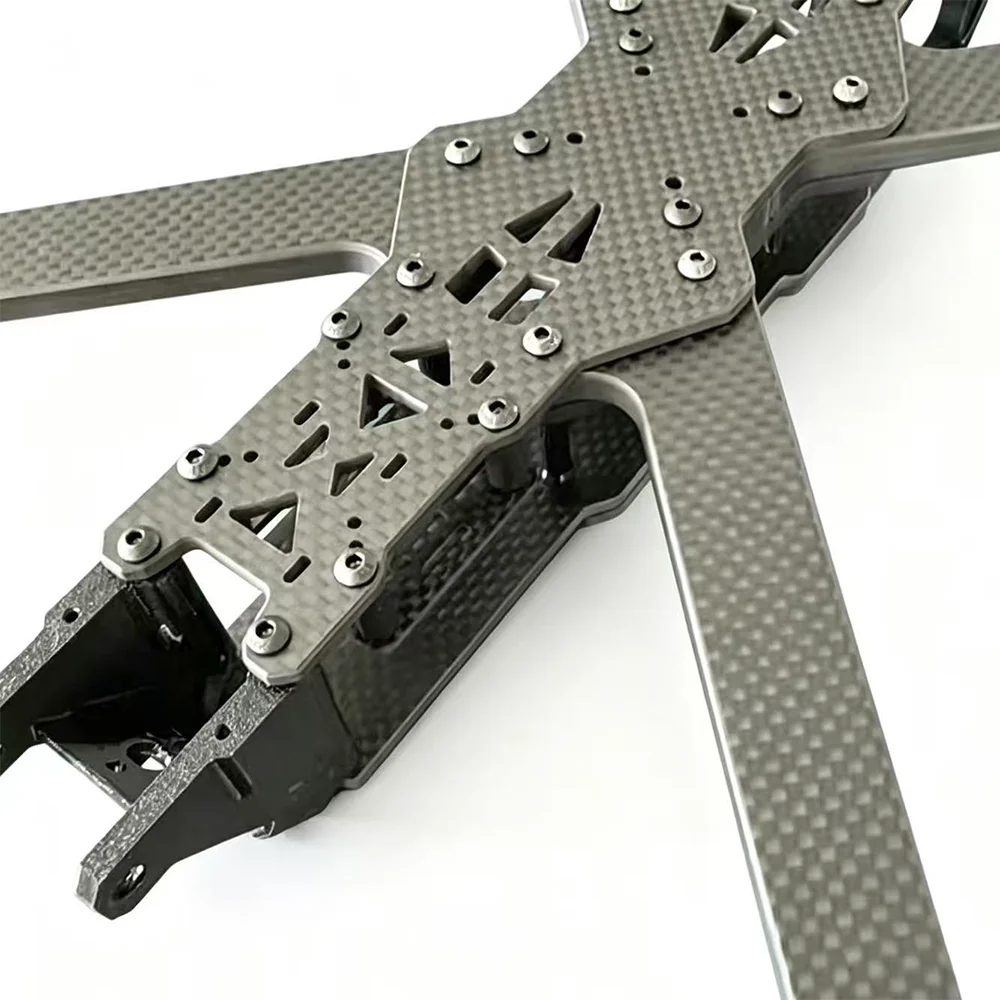

3mm Plates Throughout
Both the bottom plate and top plate use 3.0mm 3K twill carbon fiber. Many frames save weight with thinner top plates, but the FX keeps it uniform — the result is a stiffer center structure that doesn’t twist during aggressive maneuvers. At 290g bare frame weight, it’s not the lightest 10-inch on the market, but it’s the one that stays in one piece.
Specifications
| Parameter | Specification |
|---|---|
| Model | FX 10 Inch FPV |
| Frame Type | X-type (True-X) |
| Wheelbase | 419mm |
| Dimensions | 353 × 324mm |
| Material | 3K Twill Carbon Fiber (T700) |
| Bottom / Middle Plate | 3.0mm |
| Top / Connection Plate | 3.0mm |
| Motor Arm Thickness | 6.0mm |
| Camera Mount Spacing | 19mm |
| FC Mounting Hole | 30.5 × 20mm |
| VTX Mounting Hole | 30.5 × 20mm |
| Motor Mount Pattern | 16 × 19mm |
| Bare Frame Weight | 290g |
| Packaging Weight | 296g (anti-static bag) |
| Prop Size | 10 inch |
Applications
- FPV freestyle — True-X geometry delivers symmetrical handling for flips, rolls, and power loops
- Long-range cruising — 10-inch props with 6mm arms provide stable, efficient flight for 15+ minute missions
- Cinematic FPV — Stiff 3mm plates eliminate jello in footage, compatible with GoPro mounts
- Aerial photography — Stable platform for carrying HD cameras with enough thrust headroom for smooth tracking shots
- Drone racing training — Larger than typical racing frames, ideal for pilots stepping up from 5-inch to bigger props
- Custom drone prototyping — Send your design, we CNC cut your custom 10-inch frame in 5 working days
Why Choose YTCarbon
- In-house carbon fiber production. We press the sheets, cut the arms, and assemble the frame — all under one roof in Shenzhen
- CNC precision within ±0.1mm. Every mounting hole and arm slot measured with calipers before shipping
- Chamfered cutout edges. All internal corners are chamfered to prevent crack propagation from stress concentration points
- No MOQ. Order one frame for testing or thousands for production — same quality, same inspection process
- Custom frame design. Send your STEP or DXF file and we will produce your custom FPV frame in 5–7 working days
- ISO 9001 certified. Full material traceability and quality documentation available with every order
Certifications
Every FX series frame ships with documented quality credentials. Our Shenzhen facility holds ISO 9001:2015 certification, and all carbon fiber materials are RoHS and CE compliant. For OEM customers, we provide material test reports and dimensional inspection certificates with each batch. Need documentation for your project? Just ask and we will send the PDFs.
ISO 9001 · RoHS · CE Certified
Production Process
Every FX series FPV carbon fiber frame is produced in our Shenzhen facility — from raw carbon fiber prepreg to finished, inspected frame. Here is our step-by-step process:
- Prepreg Cutting — 3K twill carbon fiber prepreg cut to sheet dimensions based on required thickness (3mm plates, 6mm arms)
- Hot Press Curing — Temperature-controlled press cures the carbon fiber sheets under controlled pressure for full resin crosslinking
- CNC Machining — 3-axis and 5-axis CNC machines cut frame plates, arms, and mounting holes with ±0.1mm tolerance
- Chamfering & Deburring — All cutout edges chamfered, screw holes countersunk, surfaces deburred for clean assembly
- Press-Nut Installation — Threaded inserts installed with proper tooling for secure, repeatable hardware fitment
- Assembly & Test Fit — Frame assembled and test-fitted to verify all alignments before packaging
- Quality Inspection — Dimensional measurement of wheelbase, hole positions, plate thickness, and overall weight; anti-static bag packaging

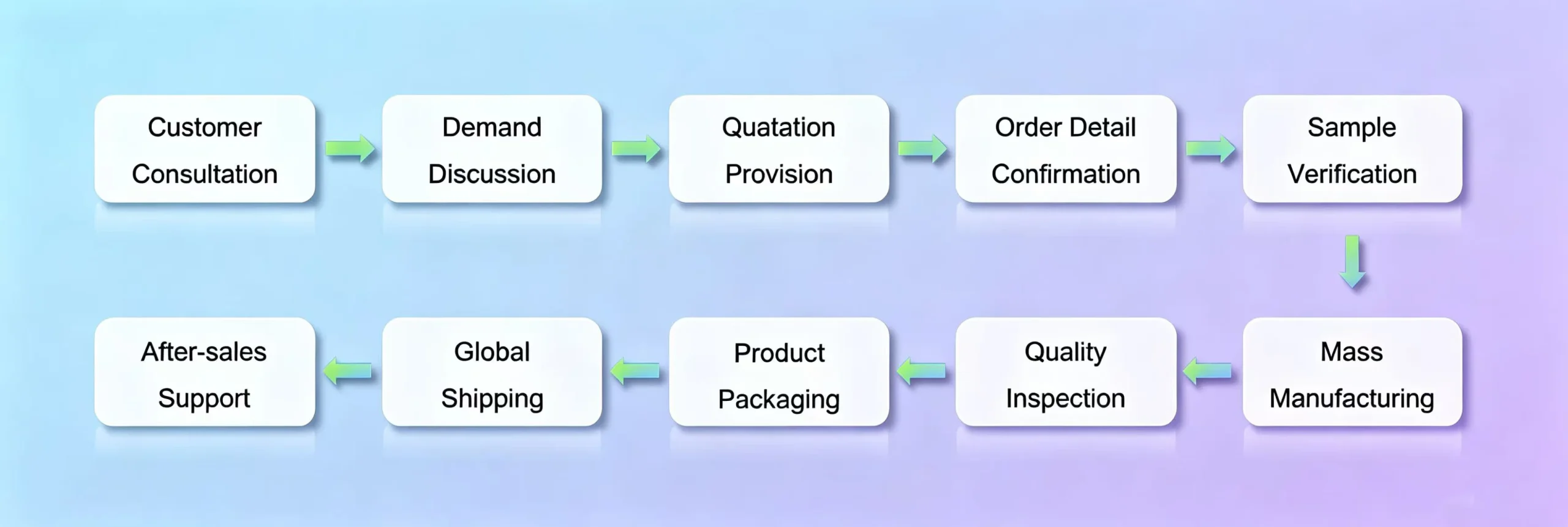

FX Series FPV Carbon Fiber Frame Production Process
Frequently Asked Questions
+ How is the FX series different from the MARK4 series?
+ What motors and props work best with this frame?
+ What flight controllers fit the FX frame?
+ Can I order replacement arms separately?
+ Do you offer OEM customization with custom branding?
Need a Custom FPV Carbon Fiber Frame?
FX series available in 10-inch. Custom sizes and designs welcome. Factory direct from Shenzhen. No MOQ.
