Product Details
Forged carbon fiber tubes deliver a unique combination of visual appeal and structural performance. The manufacturing process creates a distinctive marbled surface pattern, making each tube visually unique. Additionally, this random fiber orientation produces isotropic mechanical properties — the tube delivers consistent strength in all directions, unlike woven tubes that concentrate strength along the fiber axis. Therefore, forged carbon fiber tubes perform particularly well in applications that require multi-directional load resistance.
Furthermore, our forged carbon fiber tubes come in three carbon fiber grades: T300 for general-purpose applications, T700 for high-performance requirements, and T800 for demanding structural uses. Moreover, you can choose between glossy and matte finishes, with an optional sparkle powder that adds a metallic shimmer to the marbled surface. Specifically, manufacturers build these tubes using a roll-wrapping process with chopped carbon fiber sheets, creating the random pattern that defines the forged look.
Lamborghini pioneered forged carbon fiber technology for automotive body panels. Today, manufacturers adapt this same principle to tube production. The result is a tube that combines structural performance with a premium, non-repeating surface pattern. Notably, no two forged carbon fiber tubes look exactly alike — each piece is genuinely one of a kind.

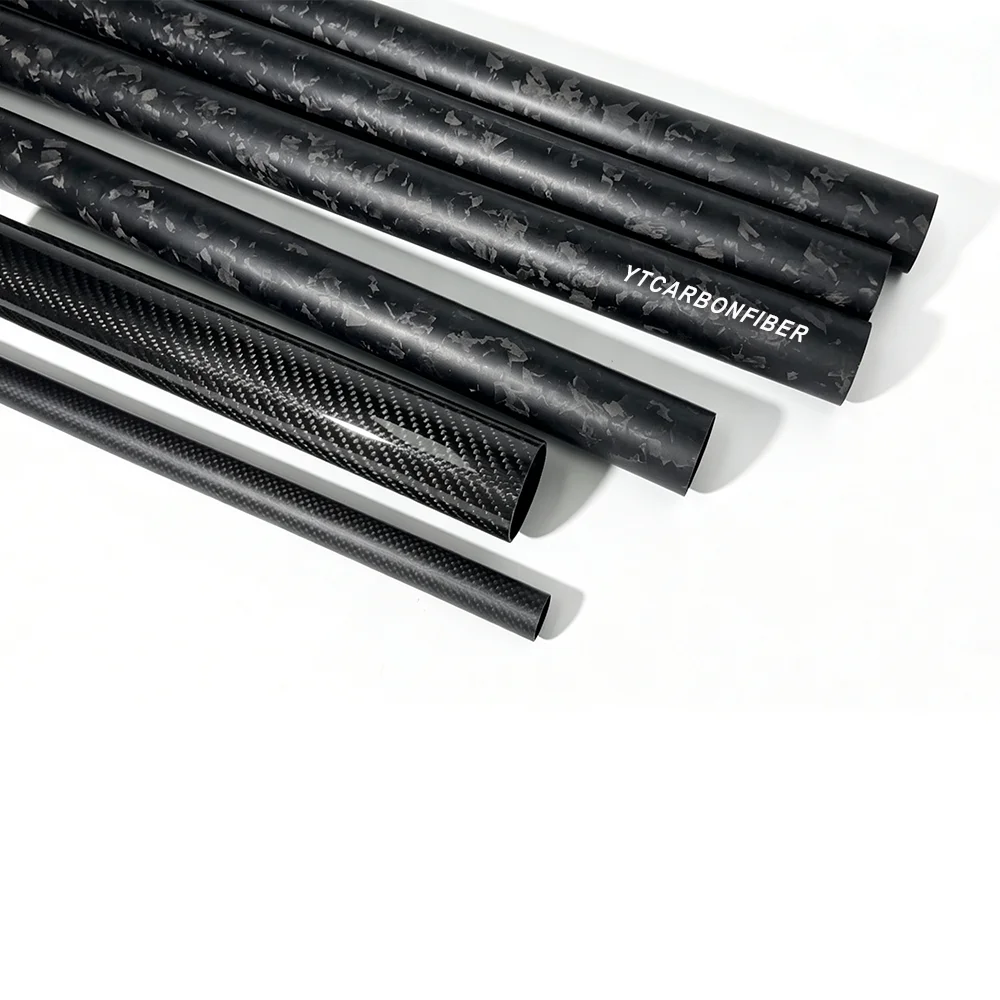

Forged carbon fiber (left) vs. traditional woven carbon fiber (right)
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Forged Carbon Fiber Tube |
| Outer Diameter | 6mm – 1000mm |
| Wall Thickness | 0.5mm – 8mm |
| Maximum Length | 4000mm (4 meters) |
| Carbon Fiber Grade | T300 / T700 / T800 |
| Surface Finish | Glossy or Matte |
| Surface Pattern | Forged Marbled |
| Layer Orientation | 0°/90° or 0°/±45°/90° |
| Optional Feature | Sparkle powder finish |
| Customization | Full dimensional and material customization |
Applications
- Automotive — Lightweight decorative trims, interior accents, and structural tubes that benefit from multi-directional strength. The marbled pattern adds a premium visual touch to custom car builds
- Drone & UAV — Frame tubes and arm tubes where weight reduction directly improves flight time and maneuverability. The isotropic strength handles multi-directional flight loads
- Bicycle components — Frame tubes, seat posts, and handlebars combining structural rigidity with a distinctive visual appeal that stands out in the premium cycling market
- Industrial equipment — Drive shafts, guide rollers, and robotic arm components requiring consistent multi-directional performance under varying load conditions
- Sporting goods — Equipment handles, poles, and shafts where lightweight rigidity enhances athletic performance. The marbled finish adds a premium look to high-end gear
- Photography gear — Tripod legs, boom poles, and camera rig components needing stiffness without added weight for extended field use
Why Choose YTCarbon
- Factory direct pricing. As the manufacturer, we eliminate middleman markups and pass savings directly to you. No trading companies in the chain, no unknown quality
- Full customization. Choose any diameter from 6mm to 1000mm, wall thickness from 0.5mm to 8mm, and length up to 4 meters. We tailor every dimension to your exact specification
- Strict quality control. Every tube undergoes dimensional inspection and surface quality checks before shipping. We track fiber content and resin distribution on every batch
- Manufacturing expertise. Years of specialized carbon fiber tube production ensure consistent product quality. We exhibited at the 2025 World UAV Expo — see what a real carbon fiber factory delivers
- Fast turnaround. Standard production completes in 7-15 business days, with rush options for urgent projects. We will confirm exact timelines when you place your order
- Global export experience. Protective packaging designed for international shipping to customers worldwide. We handle export documentation and logistics support
Certifications
We maintain strict quality standards throughout our manufacturing process. Specifically, our facility operates under ISO 9001 quality management systems, ensuring consistent product quality from raw material selection through final inspection. Moreover, every batch of forged carbon fiber tubes goes through dimensional verification, surface quality inspection, and structural integrity testing. Our materials are RoHS and CE compliant — required if you sell into the EU or supply customers who need traceable material documentation. Need a copy for your records? Just ask and we will send the PDF.
Production Process
First, workers select the carbon fiber prepreg based on your required T300, T700, or T800 grade. Then, they arrange chopped carbon fiber sheets randomly to create the marbled pattern that defines forged carbon. After that, the material is wrapped around a precision mandrel with controlled tension.
- Material Selection — Choose prepreg based on your required grade
- Forged Carbon Layup — Randomly arrange chopped carbon fiber sheets
- Roll Wrapping — Wrap material around a precision mandrel
- Vacuum Bagging — Apply vacuum pressure for even consolidation
- Oven Curing — Heat cure at controlled temperature
- Demolding — Remove the finished tube from the mandrel
- Surface Finishing — Sand and coat for glossy or matte finish
- Quality Inspection — Verify dimensions, surface, and structural integrity
Frequently Asked Questions
+ What is the difference between forged carbon fiber and traditional woven carbon fiber tubes?
+ What is the minimum order quantity for forged carbon fiber tubes?
+ Can you produce tubes with custom dimensions and lengths?
+ What surface finishes are available for forged carbon fiber tubes?
+ How long does production typically take?
+ Do you provide samples before placing bulk orders?
Ready to Order Forged Carbon Fiber Tubes?
Get a custom quote today. Our team responds within 24 hours.
