Product Details
Certified UL94 V-0 Fire Safety for Regulated Applications
Standard epoxy carbon fiber sheets burn readily when exposed to open flame. To eliminate this fire hazard, we engineer our flame retardant carbon fiber sheets with an advanced, halogen-free fire-inhibiting epoxy resin system that meets the strict UL94 V-0 standard. Specifically, upon direct flame contact, the composite material forms an intumescent char barrier that cuts off oxygen supply. Consequently, it self-extinguishes within 10 seconds with zero flaming drips. Furthermore, for eVTOL aircraft, commercial UAVs, and battery enclosures, this design provides critical passive fire containment without sacrificing lightweight structural integrity.
High Specific Strength with Minimal Weight Penalty
Traditional fireproof materials like heavy steel or aluminum sheeting add substantial deadweight to critical structures. In contrast, our fire-retardant composite plates utilize 100% continuous Toray carbon fiber reinforcement. Specifically, our chemical formulation adds less than 2% to overall material density while retaining over 95% of standard carbon fiber tensile and flexural modulus. Therefore, aerospace and automotive engineers maximize payload capacity and battery efficiency while satisfying demanding international safety mandates.
Thermal Stability and Low Smoke Toxicity
In enclosed environments such as passenger aircraft cabins, rail cars, and electronics enclosures, toxic smoke inhalation poses an immediate threat during accidents. For this reason, our halogen-free chemical formulation significantly suppresses optical smoke density and toxic gas emissions during thermal runaway events. Moreover, with a continuous operating threshold between 130°C and 150°C (and high-Tg options reaching 200°C), our composite plates preserve precise dimensional stability under severe environmental heat.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Flame Retardant Carbon Fiber Sheet |
| Flammability Standard | UL94 V-0 (Self-extinguishing ≤ 10s, No flaming drips) |
| Raw Material | 100% Toray Carbon Fiber + Modified FR Epoxy Resin |

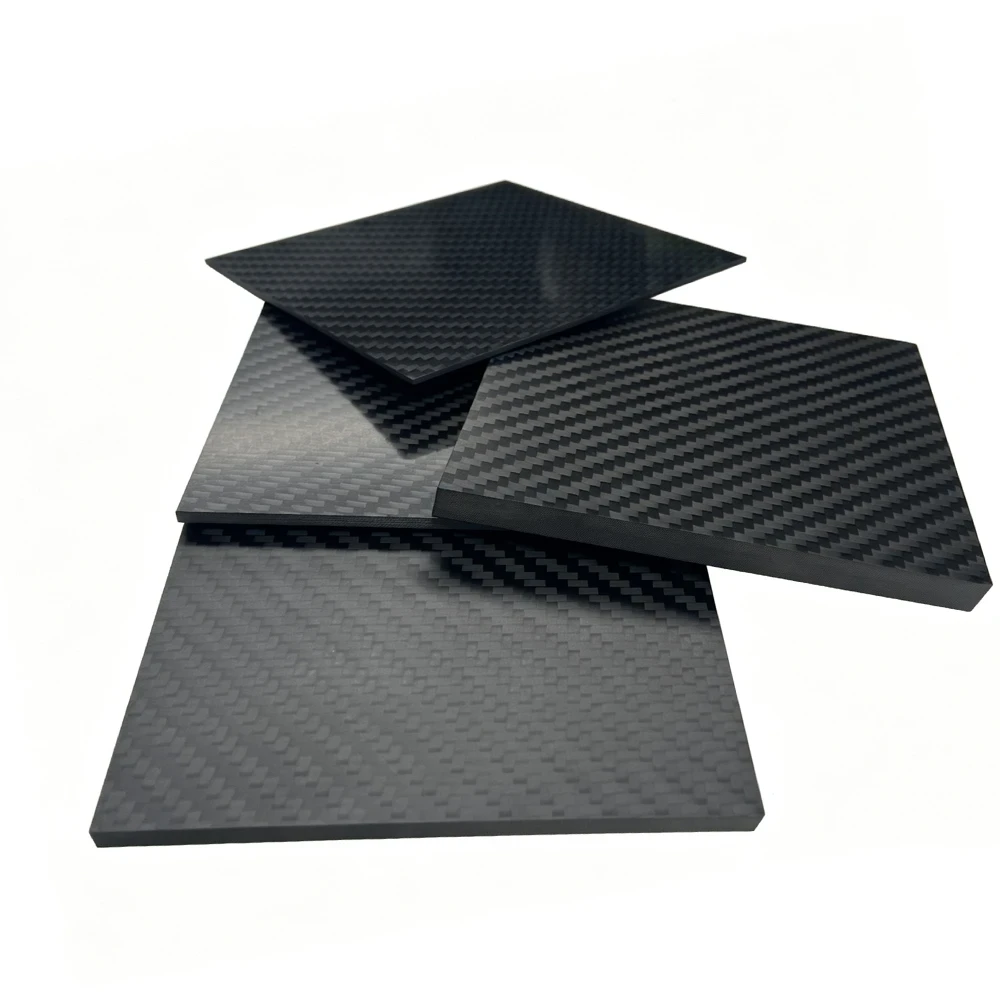

| Standard Thickness | 0.5mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 5.0mm, up to 25mm |
| Standard Dimensions | 400x500mm, 500x500mm, 500x600mm, 1000x1000mm (Custom up to 1200x2500mm) |

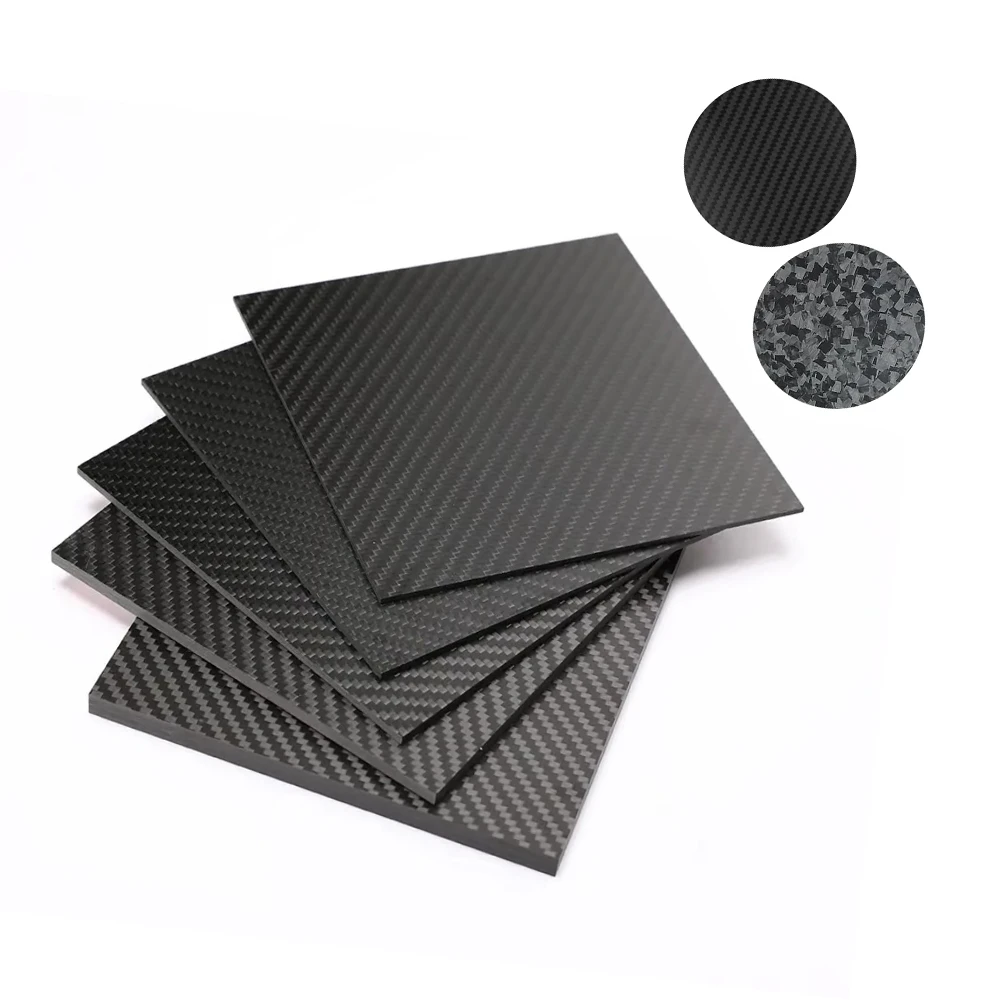

| Weave Pattern | 3K Twill / 3K Plain / Unidirectional (UD) / Quasi-Isotropic Layup |
| Surface Finish | Matte (Smooth / Anti-scratch) or High Gloss |
| Manufacturing Process | High-pressure hydraulic hot press compression molding |
| Thickness Tolerance | ±0.05mm – ±0.1mm (Precision ground options available) |
| Thermal Resistance (Tg) | 130°C – 150°C (Standard) / Up to 200°C (High-Tg Series) |
| Secondary Processing | Multi-axis CNC milling, countersinking, chamfering, threading, laser marking |
| Customization | Custom dimensions, ply orientations, hybrid cores, and drawing-based CNC parts |
Applications
- eVTOL and passenger drone airframes — We supply lightweight fuselage panels, bulkheads, and wing structures that deliver certified aviation fire containment.
- EV battery enclosures and covers — Our thermal runaway barrier lids and module separation plates effectively isolate battery fire risks in electric vehicles.
- Industrial UAV motor arms and brackets — Our high-stiffness chassis plates withstand continuous vibration while operating close to high-discharge ESCs.
- High-voltage electronic enclosures — We fabricate fire-retardant server boxes, robotics controllers, and power conversion housings with non-conductive coatings.
- Rail transit and cabin interiors — Our low-smoke partition panels, passenger seat support plates, and interior brackets protect passenger cabins.
- Industrial automation and heat shielding — We manufacture precision CNC fixture plates and protective covers that operate safely near high-temperature machinery.
Why Choose YTCarbon
- Verified UL94 V-0 flame rating. We audit every batch of flame-retardant resin to guarantee self-extinguishing behavior and low-smoke emission performance.
- 100% genuine continuous Toray fibers. We never mix scrap fillers or low-grade fiberglass into core layers unless you explicitly order a hybrid layup.
- Precision CNC machining on site. Our fully equipped multi-axis CNC centers achieve ±0.05mm tolerances, smooth edge chamfers, and clean countersunk holes.
- Custom quasi-isotropic layup schedules. Our balanced [0°/90°/±45°] ply engineering eliminates warping and ensures multi-directional mechanical stiffness.
- Direct manufacturer pricing. We produce every plate directly at our Shenzhen facility, ensuring tight quality control, rapid prototyping, and wholesale pricing.
- ISO 9001 certified traceability. We provide complete dimensional verification, ultrasonic testing, and batch inspection reports with every order.
Certifications
We build quality and safety compliance into every composite plate we ship. Moreover, our manufacturing plant operates under a certified ISO 9001 quality management system. In addition, our flame-retardant carbon fiber sheets comply fully with UL94 V-0 flammability criteria, RoHS environmental restrictions, and CE requirements for global commercialization. Therefore, we readily provide complete material test reports, flammability test documentation, and dimensional inspection certificates upon request.
ISO 9001 · UL94 V-0 · RoHS · CE Certified
Production Process
We manufacture our flame retardant carbon fiber sheets using high-pressure hydraulic hot-press molding. Specifically, this controlled process ensures maximum fiber consolidation, maintains void content under 1%, and delivers a precise resin-to-fiber ratio. Here is our step-by-step manufacturing workflow:
- FR Prepreg Selection & Cutting — We select aerospace-grade Toray carbon fiber fabrics pre-impregnated with modified UL94 V-0 epoxy resin and cut them using automated CNC knife cutters.
- Engineered Ply Layup — Our technicians stack prepreg layers in cleanroom conditions following custom ply schedules (0°/90° or quasi-isotropic [0°/±45°/90°]) to prevent post-cure warp.
- High-Pressure Hot Press Molding — We apply uniform thermal ramp-up and multi-ton hydraulic pressure to eliminate internal micro-voids and complete resin crosslinking.
- Demolding & Surface Treatment — We run a controlled cooling cycle before precision demolding, yielding a pinhole-free matte or glossy surface finish.

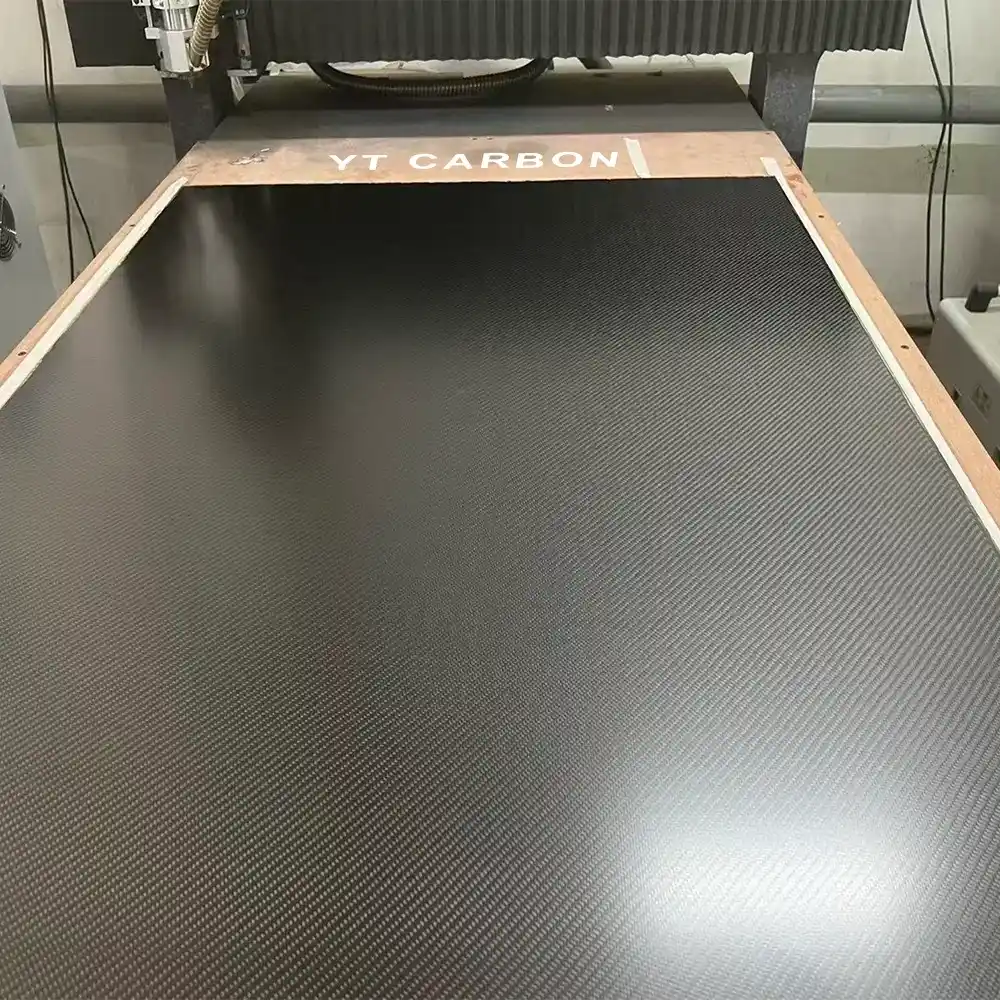

- Multi-Axis CNC Machining — Our workshop executes custom machining according to CAD drawings (.DXF/.STEP), including pocketing, beveling, countersunk screw holes, and threading.
- Flame & Mechanical Testing — Our lab conducts batch vertical burn verification (UL94 V-0 compliance), measures Tg values, and runs inter-laminar shear strength tests.
- Final Quality Inspection — We perform 100% dimensional caliper verification, thickness tolerance inspection, surface gloss audits, and protective film packaging.
Flame Retardant Carbon Fiber Sheet Production Process
Frequently Asked Questions
Flame Retardancy & Material Properties
+ What does UL94 V-0 certification mean for carbon fiber sheets?
+ Does flame-retardant resin weaken the carbon fiber plate’s mechanical stiffness?
+ How do flame retardant carbon fiber sheets compare to aluminum in fire containment?
Machining & Customization Questions
+ What thickness should I choose for UAV and battery enclosures?
+ Can you provide CNC machining based on our CAD drawings?
+ Can I order custom ply orientations like Quasi-Isotropic layups?
