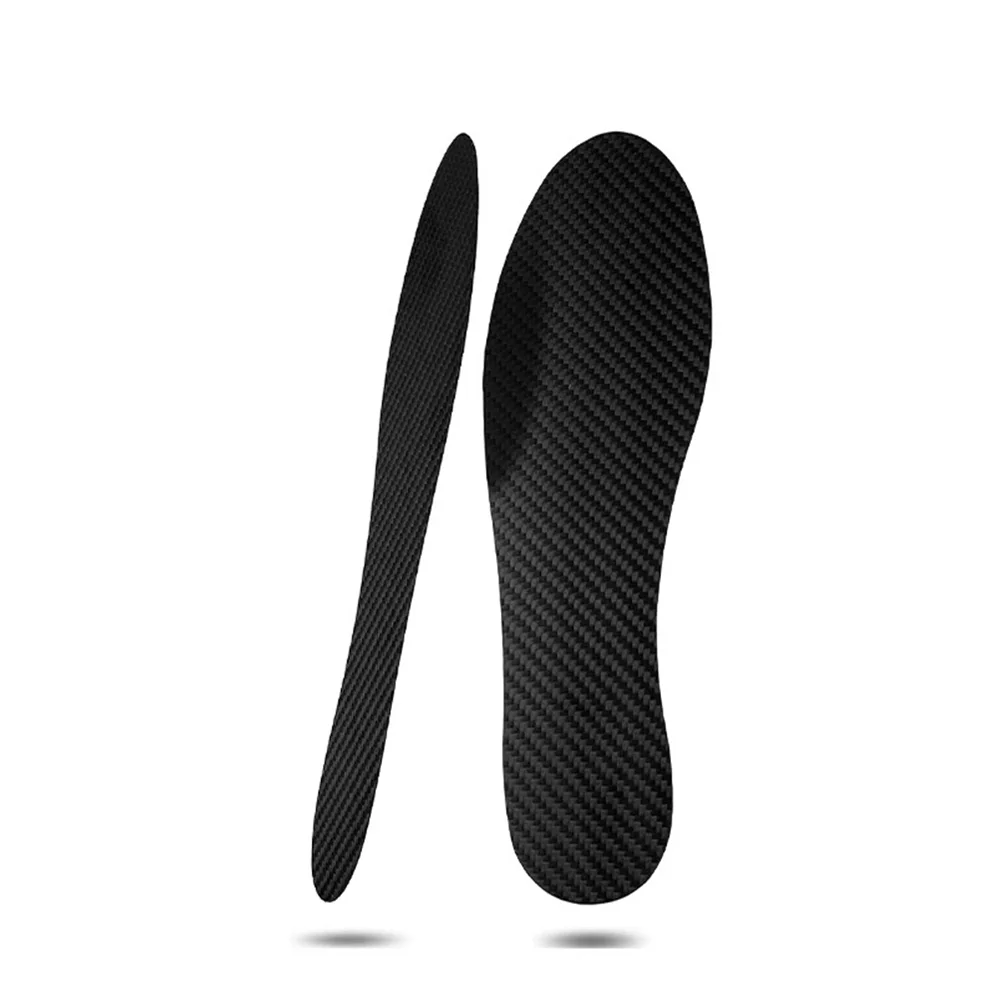

Carbon fiber shoe plate top view full length YTCarbon

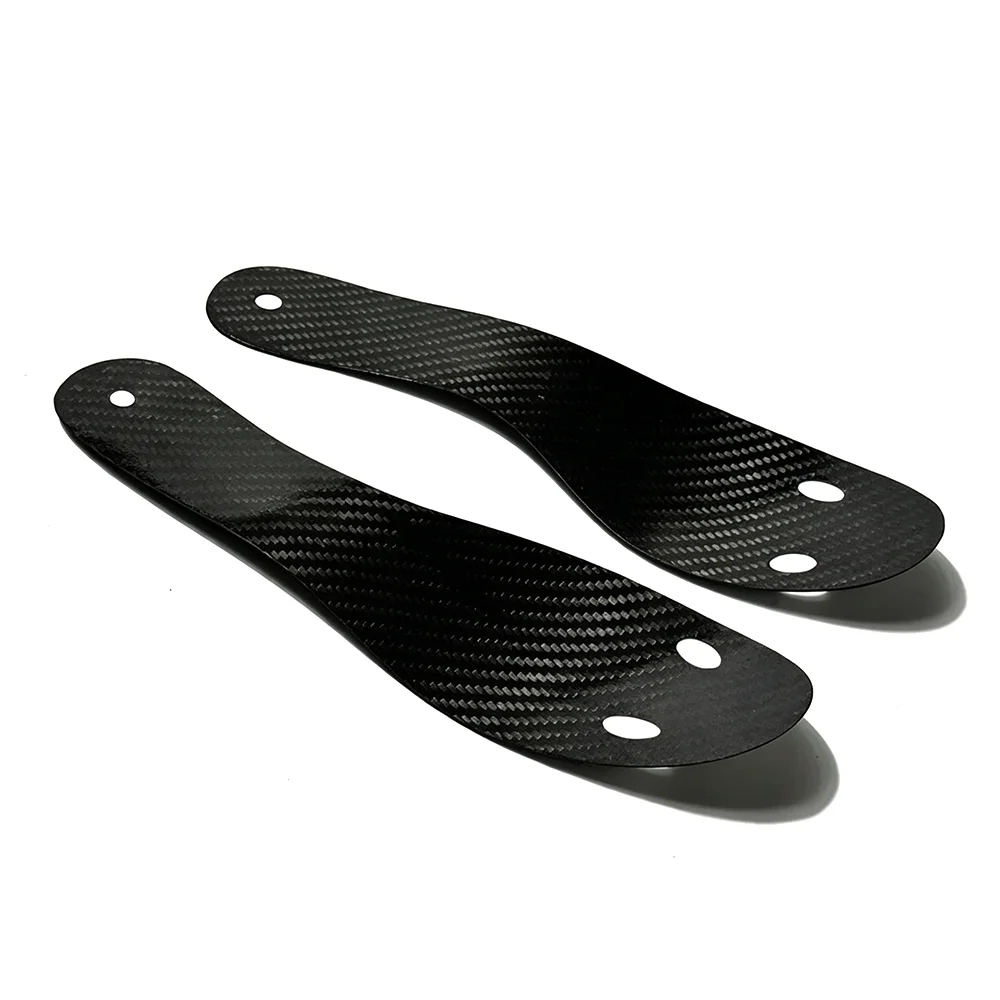

Carbon fiber shoe plate side view spoon curve YTCarbon

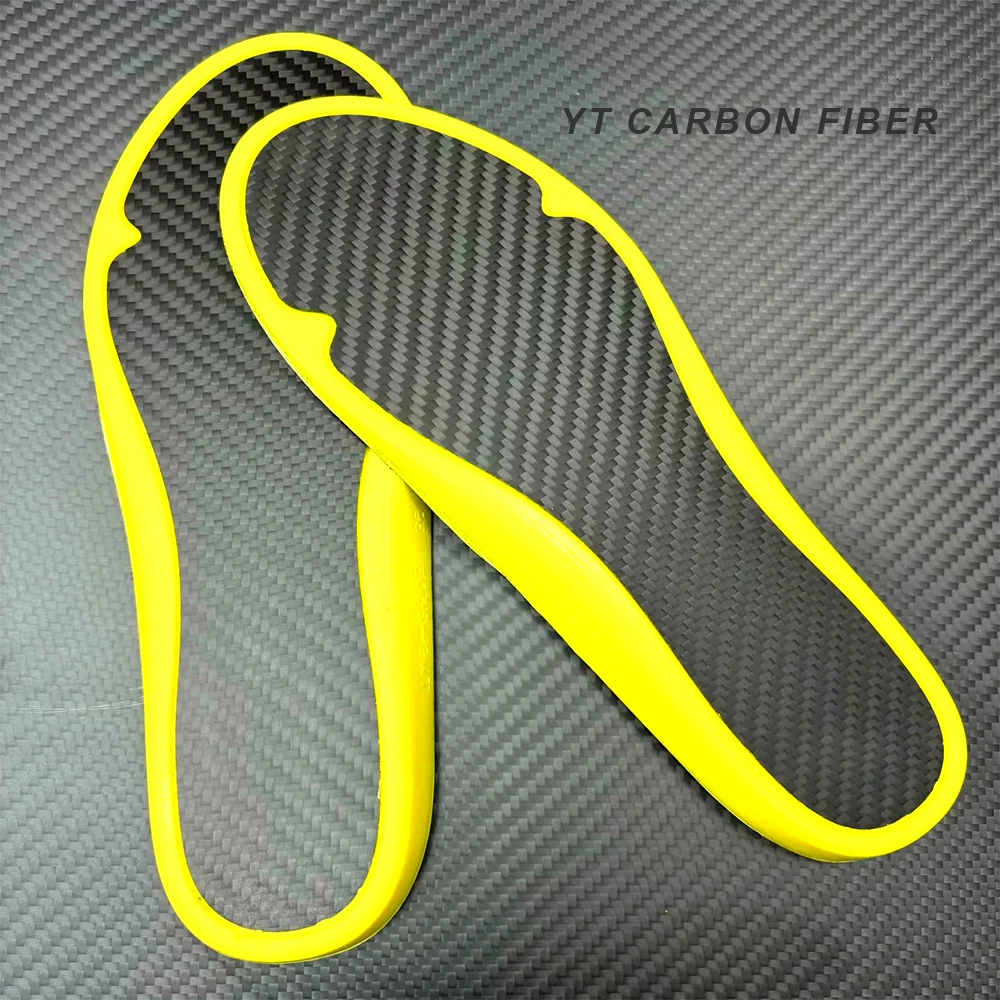

Carbon fiber shoe plate inserted in running shoe midsole YTCarbon

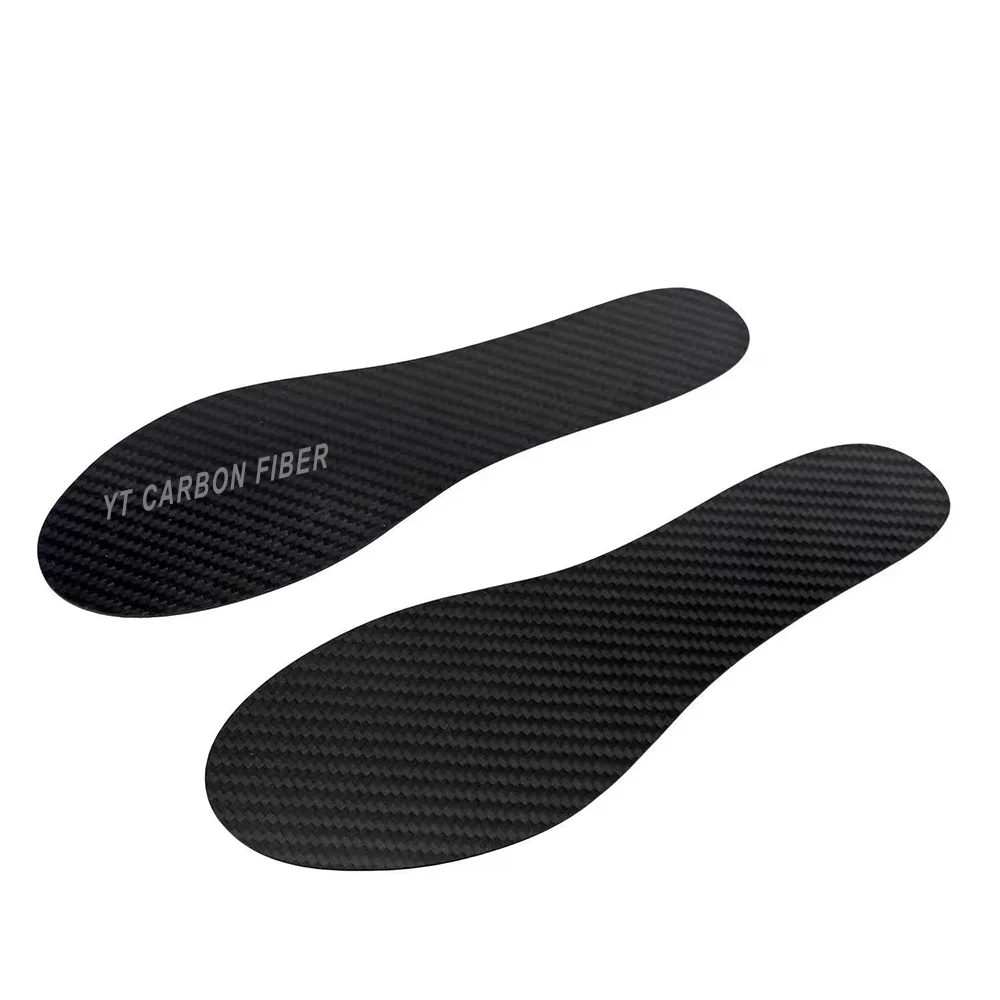

Carbon fiber shoe plate pair left right YTCarbon

Carbon Fiber Shoe Plate

A carbon fiber shoe plate that sits inside the midsole and gives runners real energy return — not the foam-marketing kind. Stiff under the forefoot for toe-off propulsion, flexible enough to let the foot move naturally, and lighter than any TPU plate on the market. Compatible with most running shoe midsoles.

Request a QuoteWhatsApp Us

Product Details

A carbon fiber shoe plate sits inside the midsole and acts like a spring — it bends under your weight during footstrike and snaps back during toe-off, returning stored energy that foam alone cannot provide. That is the physics behind every “super shoe” on the marathon start line.

Spoon Curve & Zoned Stiffness

The plate is not flat — it has a spoon-shaped curve at the forefoot that creates a rolling effect, reducing the ankle extension angle at push-off. Stiffness is tuned by layup: stiffer midfoot for torsion control, more flexible at the metatarsal bend line so the foot articulates naturally. At 8–12 grams per pair, the plate adds less weight than the lace tips.

OEM for Shoe Brands

We produce plates for running shoe brands, orthopedic insert makers, and sports performance labs. Custom curvature, stiffness, and sizing — we prototype from your foot scan data or last dimensions. From 500 pairs for a limited drop to 50,000 for full production.

Specifications

Specification Details
Material Carbon fiber composite (T700 / T800 optional)
Weight (per pair) Approx. 8–12 g (size-dependent)
Thickness 0.5–1.2 mm (varies by zone — thinner at flex points)
Shape Full-length / half-length / forefoot-only; spoon curve at toe
Stiffness Profile Custom layup — stiff midfoot, flexible metatarsal bend
Energy Return Up to 65% measured return (ASTM F2913 protocol)
Torsion Rigidity Tunable via fiber orientation and layup sequence
Size Range US 5–14 / EU 35–49 (custom sizes available)
Surface Finish Matte (standard) / textured for foam adhesion
Forming Process Hot press molding with matched-metal dies
Mold Type CNC steel matched-metal die (per size)
Drawing Formats STEP, STP, IGS — flexible customization from 3D design drawings
Mold Lead Time 10–15 business days
MOQ 500 pairs per size

Applications

  • Running Shoes — Full-length CF plates boost toe-off energy return. Spoon curve reduces ankle extension at push-off.
  • Basketball Shoes — Forefoot plates add torsion rigidity for lateral cuts without killing court feel.
  • Soccer Cleats — Ultra-thin forefoot plates improve push-off while keeping the foot close to the pitch.
  • Orthopedic Insoles — Custom-curved plates for plantar fasciitis and midfoot instability — stiffer than TPU, thinner than acrylic.
  • Trail & Hiking — Stiff midfoot plate protects from rock penetration while allowing natural forefoot flex.

Why Choose YTCarbon

  • Proven at the 2025 World UAV Expo — Precision layup and hot-press molding at shoe-plate scale is what we do after molding drone frames that survive crashes.
  • Tunable Stiffness by Zone — One plate, multiple stiffness zones. We adjust layup angle and ply count section by section — stiff midfoot, flexible forefoot. No separate pieces.
  • 8–12 Grams per Pair — Lighter than any TPU or nylon plate at equivalent stiffness. Weight saving goes into more foam or a lighter shoe.
  • Matched-Metal Die Pressing — Steel die hot-pressing delivers ±0.05mm thickness consistency. No voids, no resin pockets, no batch variation.
  • Custom Curve from Foot Scan — Send us your last scan or pressure map and we design the spoon curve to match. Typically two rounds to production sign-off.

Certifications

YTCarbon operates under ISO 9001:2015 quality management. Every shoe plate batch is traceable from prepreg intake through hot-press molding and inspection. Material test reports, flexural modulus certificates, and RoHS documentation available on request.

Carbon fiber shoe plate certifications ISO 9001 YTCarbon

How We Manufacture Your Carbon Fiber Shoe Plate

Prepreg layers are stacked on a layup jig with zone-specific orientation — 0° along the length for bending stiffness, ±45° in the midfoot for torsion rigidity, reduced ply count at the metatarsal bend line for flexibility. The layup is transferred to a CNC-machined steel matched-metal die and hot-pressed. The die cavity defines the plate shape including the spoon curve. After pressing, CNC trimming removes flash. Each plate is inspected for thickness, curvature, and surface quality before pairing.

Carbon fiber shoe plate manufacturing process YTCarbon

FAQ

+ How does a carbon fiber shoe plate improve running performance?
The plate acts like a leaf spring — it stores energy during footstrike and releases it during toe-off. Studies show up to 65% energy return with a tuned CF plate vs 40–50% for TPU. The spoon curve also reduces ankle extension at push-off, lowering metabolic cost. That is why every major marathon is won in carbon plate shoes.
+ Carbon fiber plate vs TPU plate — what is the difference?
A 0.8mm CF plate delivers the same bending stiffness as a 1.8mm TPU plate at roughly half the weight. CF also maintains stiffness across temperature — TPU softens in heat and stiffens in cold. The trade-off is cost, but the performance gap is why premium brands have moved almost entirely to carbon.
+ Can stiffness be customized for different sports?
Yes — that is the point of custom layup. Running: stiff midfoot + flexible forefoot. Basketball: maximum torsion rigidity full length. Soccer: ultra-thin forefoot plate for ground feel. Tell us the sport and feel you want, we engineer the layup to match.
+ What is the lead time for custom shoe plate production?
Die tooling: 10–15 business days. Sample plates: 5–7 days after die approval. Production runs (500+ pairs): 15–20 days. Reorders on existing dies: 10–15 days. We store your dies and layup specs indefinitely — no re-tooling cost.
+ Do CF shoe plates work with EVA and PEBA foam midsoles?
Yes — compatible with EVA, PEBA (Pebax), TPU, and PU foams. The matte finish provides mechanical adhesion during foam molding. For extra bonding security, we offer a textured surface with micro-grooves. The plate sits between foam layers — no adhesive needed in most constructions.

Need Custom Carbon Fiber Shoe Plates?

From prototype to 50K-pair production — custom curvature, stiffness, and sizing for running, basketball, soccer, and orthopedic applications. Direct from our Shenzhen factory.
