Carbon Fiber Sheets Built for Robotics

First, our carbon fiber sheet for robotics is manufactured as a raw material and blank panel — ready for your CNC machining, not a finished shaped part. Furthermore, these sheets serve as the foundational building block that robotics engineers cut, drill, and assemble into precision structural components. Additionally, we offer an exceptionally wide thickness range from 0.2mm up to 120mm, with maximum panel dimensions reaching 3m × 8m. Therefore, whether you are prototyping a small collaborative robot joint plate or fabricating a large automation equipment frame, these carbon fiber blanks provide the dimensional freedom your project demands.

Why Robotics Engineers Choose Carbon Fiber

First and foremost, weight reduction is the primary reason robotics engineers specify carbon fiber sheets. Consequently, lighter structural plates enable faster acceleration and allow the use of smaller, more energy-efficient motors — directly reducing system cost and power consumption. Furthermore, carbon fiber’s low coefficient of thermal expansion means dimensional stability across temperature fluctuations, which is essential for maintaining positional accuracy in precision robotic arms. Additionally, our vibration-damping layup options absorb high-frequency oscillations that would otherwise compromise motion smoothness. Therefore, robots built with these sheets deliver smoother trajectories, longer service life, and higher repeatability. In practice, engineers integrating our panels report measurably improved cycle times and reduced vibration-induced wear on bearings and gearboxes.

From Sheet to Robot Part

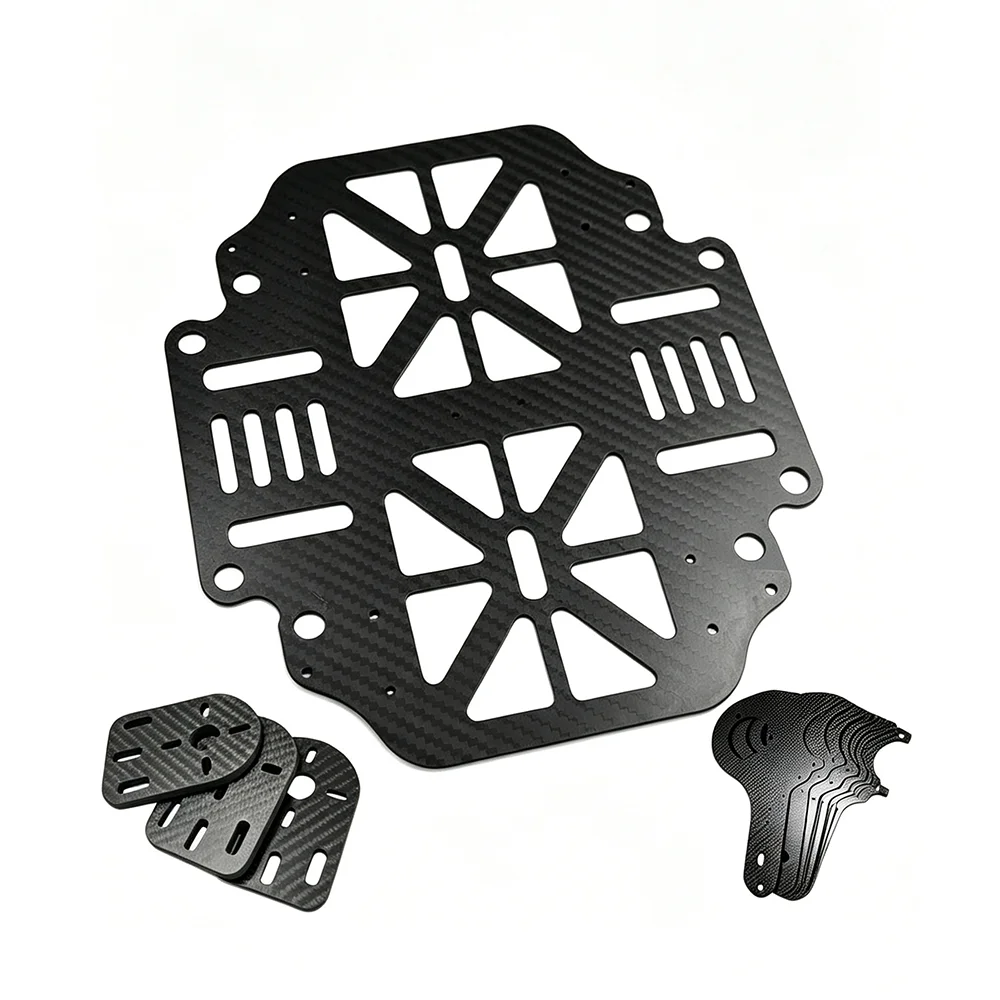

Initially, every project begins with a blank carbon fiber sheet ordered to your required thickness, grade, and weave. Then, our in-house CNC service can cut these blanks to your DXF or DWG drawings with a tolerance of ±0.1mm, delivering ready-to-assemble parts directly to your facility. Subsequently, common robotics applications include robotic arm link plates, automation equipment frames, service robot chassis plates, and collaborative robot joint plates. In addition, for engineers who prefer to machine in-house, we ship full-size blanks with guaranteed flatness and fiber alignment. Consequently, you receive a consistent, predictable raw material that machines cleanly and assembles precisely — whether you need one prototype sheet or a production run of hundreds.

Specifications

Applications

Why Choose YTCarbon

Certifications

First of all, we maintain strict quality standards throughout our manufacturing process. Specifically, our facility operates under ISO 9001 quality management systems, ensuring consistent product quality from raw material selection through final inspection. Moreover, every batch of carbon fiber sheets for robotics goes through dimensional verification, surface quality inspection, and structural integrity testing. In addition, our materials are RoHS and CE compliant — required if you supply robotics OEMs that need traceable material documentation for European markets. Finally, need a copy for your records? Just ask and we will send the PDF.

ISO 9001 · RoHS · CE Certified

How We Manufacture Your Carbon Fiber Sheet for Robotics

To begin with, producing robotics-grade carbon fiber sheets requires tight control over resin content, fiber alignment, and curing parameters. Namely, dimensional consistency is critical for parts that must fit precisely in robotic assemblies — even minor thickness variations can cause misalignment in multi-axis systems. Here is how we ensure every sheet meets robotics standards:

1. Material Selection — Choose prepreg based on required grade (T300/T700/T800), weave, and resin system
2. Layup & Stacking — Carbon fiber prepreg layers arranged per design specification with precise fiber orientation control
3. Vibration Damping Insertion — Optional interleaved viscoelastic layers added for vibration-damping configurations
4. Vacuum Bagging — Vacuum pressure applied to eliminate air pockets and ensure uniform resin distribution
5. Press Curing — Hydraulic press curing at controlled temperature and pressure for flat, warp-free sheets
6. Demolding & Inspection — Sheet removed from mold, flatness and thickness verified with precision instruments
7. Surface Finishing — Sanding and clear-coating for glossy, matte, or colored finish
8. CNC Cutting & QA — Optional precision cutting to DXF/DWG drawings, followed by final quality inspection
