Carbon Fiber Sheets Built for the Automotive Industry
Carbon fiber sheets for automotive applications deliver the strength-to-weight ratio that vehicle builders, modifiers, and manufacturers need. Specifically, these sheets serve as raw material for body panels, interior trim, battery enclosures, and structural reinforcements — replacing steel and aluminum components at a fraction of the weight. Moreover, a carbon fiber sheet weighs roughly 75% less than a steel sheet of equivalent stiffness, which directly translates to improved acceleration, handling, and fuel efficiency.
Why Automotive Buyers Choose Carbon Fiber
Furthermore, automotive applications demand specific material properties that not all carbon fiber sheets can deliver. For instance, exterior panels require UV-resistant surface coatings to prevent yellowing after years of sun exposure. Interior trim pieces need consistent weave patterns and bubble-free surfaces for a premium visual finish. Battery enclosure plates demand fire-rated resin systems that meet UL94 V-0 standards. Therefore, YTCarbon offers automotive-grade carbon fiber sheets with surface finishes, resin systems, and thickness options tailored to each of these requirements.
From Sheet to Finished Part
In practice, most automotive buyers purchase carbon fiber sheets as raw material and process them further. Thin sheets (0.5–2mm) are commonly used as decorative overlays — bonded to existing panels with adhesive for an instant visual upgrade. Medium sheets (2–5mm) work as structural panels, CNC-cut to shape and drilled for mounting. Thick sheets (5–30mm) serve as load-bearing components such as battery enclosure lids, chassis reinforcement plates, and suspension mounting brackets. Consequently, whatever your automotive build requires, the right carbon fiber sheet specification makes the difference between a part that performs and one that fails.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Carbon Fiber Sheet for Automotive |
| Thickness Range | 0.2mm – 30mm |
| Maximum Sheet Size | 3000mm × 8000mm |
| Carbon Fiber Grade | T300 / T700 / T800 |
| Weave Pattern | 3K Twill / Plain / UD / Forged |
| Surface Finish | Glossy / Matte / Colored (Red, Blue, Silver, etc.) |
| Resin System | Epoxy standard / High-temp epoxy (up to 300°C) / Fire-rated (UL94 V-0) |
| UV Resistance | UV-stable clear coat for exterior applications |
| CNC Cutting | Custom shapes to DXF/DWG, tolerance ±0.1mm |
| Customization | Full dimensional, material, and finish customization |
Applications
Exterior & Structural
- Exterior body panels — First, raw sheet material for hoods, trunk lids, fender overlays, and mirror caps. Buyers CNC-cut or thermoform these sheets into finished panels, saving up to 75% weight versus steel
- EV battery enclosures — Additionally, structural plates for battery pack lids and internal partitions. Fire-rated UL94 V-0 resin system available for compliance with automotive safety standards
- Spoilers & aero components — Furthermore, flat and pre-curved sheets for rear wings, front splitters, diffuser panels, and side skirts where rigidity and low weight improve downforce without adding drag
- Chassis reinforcement — Moreover, structural insert plates for roll cage mounting, suspension pickup points, and chassis bracing where high stiffness prevents flex under load
Interior & Custom
- Interior trim & accents — Meanwhile, dashboard overlays, center console panels, door card inlays, and steering wheel trim. Available in glossy, matte, and forged finishes to match any interior design language
- Custom & motorsport builds — Finally, one-off and small-batch sheet supply for race teams, tuning shops, and individual builders who need specific sizes and finishes without minimum order restrictions
Why Choose YTCarbon
- Automotive-grade surfaces. First, our glossy sheets feature deep, mirror-like clarity with zero fiber print-through — the finish that automotive buyers expect. Matte sheets provide uniform anti-glare texture without patchiness. Both options include UV-stable clear coat for long-term exterior use
- Factory direct pricing. Second, as the manufacturer, we eliminate middleman markups and pass savings directly to you. No trading companies in the chain, no unknown quality
- Up to 3m × 8m single sheet. Third, industry-leading maximum sheet size means fewer seams in large body panels and enclosure covers. One continuous piece is always stronger and lighter than joined sections
- Fire-rated options available. In addition, UL94 V-0 rated resin system for EV battery enclosures and other applications requiring flame retardancy compliance. Not all carbon fiber suppliers offer this — we do
- CNC cutting to your drawings. Furthermore, send us DXF or DWG files and receive precision-cut parts ready for assembly. Tolerance ±0.1mm, no need to cut in-house
- Global export experience. Finally, protective packaging designed for international shipping to automotive customers worldwide. We handle export documentation and logistics support
Certifications
First of all, we maintain strict quality standards throughout our manufacturing process. Specifically, our facility operates under ISO 9001 quality management systems, ensuring consistent product quality from raw material selection through final inspection. Moreover, every batch of automotive carbon fiber sheets goes through dimensional verification, surface quality inspection, and structural integrity testing. In addition, our materials are RoHS and CE compliant — required if you sell into the EU or supply automotive OEMs that need traceable material documentation. Finally, need a copy for your records? Just ask and we will send the PDF.
ISO 9001 · RoHS · CE Certified
Production Process
To begin with, producing automotive-grade carbon fiber sheets requires tight control over resin content, fiber alignment, and curing parameters. Namely, surface quality is critical for visible automotive parts — even minor imperfections like fiber print-through or trapped air bubbles become obvious under showroom lighting. Here is how we ensure every sheet meets automotive standards:
- Material Selection — Choose prepreg based on required grade (T300/T700/T800), weave, and resin system (standard/high-temp/fire-rated)
- Layup & Stacking — Carbon fiber prepreg layers arranged per design specification with precise fiber orientation control
- Vacuum Bagging — Vacuum pressure applied to eliminate air pockets and ensure uniform resin distribution throughout the laminate
- Press Curing — Hydraulic press curing at controlled temperature and pressure for flat, warp-free sheets with consistent thickness
- Demolding & Inspection — Sheet removed from mold, flatness and thickness verified with precision instruments
- Surface Finishing — Sanding and clear-coating for glossy, matte, or colored finish with UV-resistant topcoat
- CNC Cutting — Optional precision cutting to customer drawings with ±0.1mm tolerance
- Quality Inspection — Final surface, dimension, and structural verification before packaging

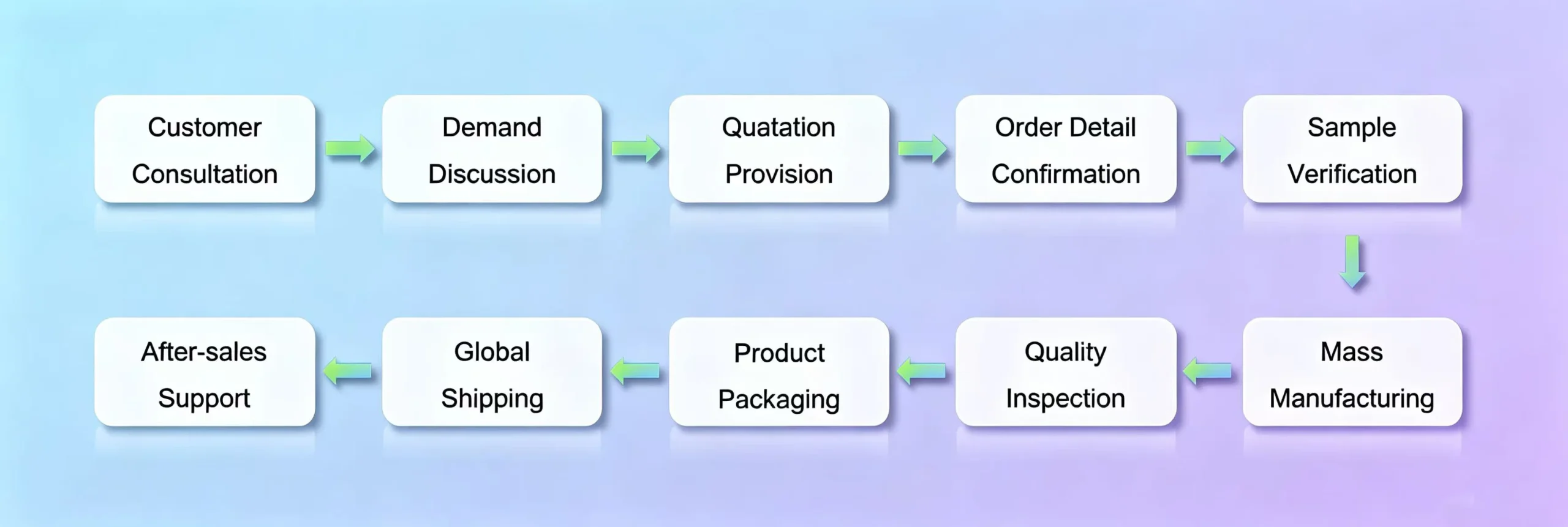

Carbon Fiber Sheet Production Process
Frequently Asked Questions
Material & Finish
+ What thickness should I use for automotive body panels?
+ Can I use carbon fiber sheets for exterior car parts exposed to sunlight?
+ What is the difference between glossy, matte, and forged finishes for automotive use?
Ordering & Service
+ Do you offer fire-rated carbon fiber sheets for EV battery enclosures?
+ Can you cut carbon fiber sheets to custom shapes for my project?
+ What is the minimum order quantity?
