Carbon fiber pool cue shaft full length pro taper low deflection billiards cue China YTCarbon

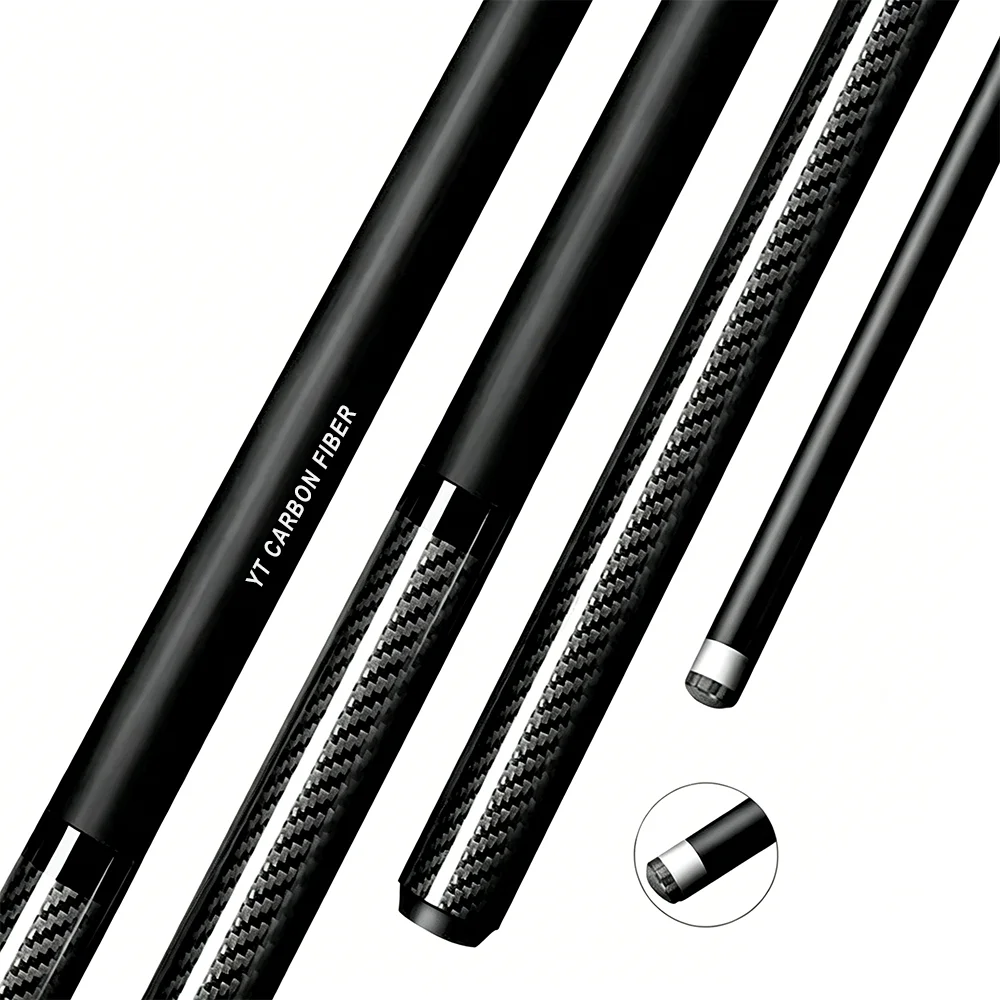

Carbon fiber pool cue shaft tip diameter closeup 12.75mm ferrule billiards China YTCarbon

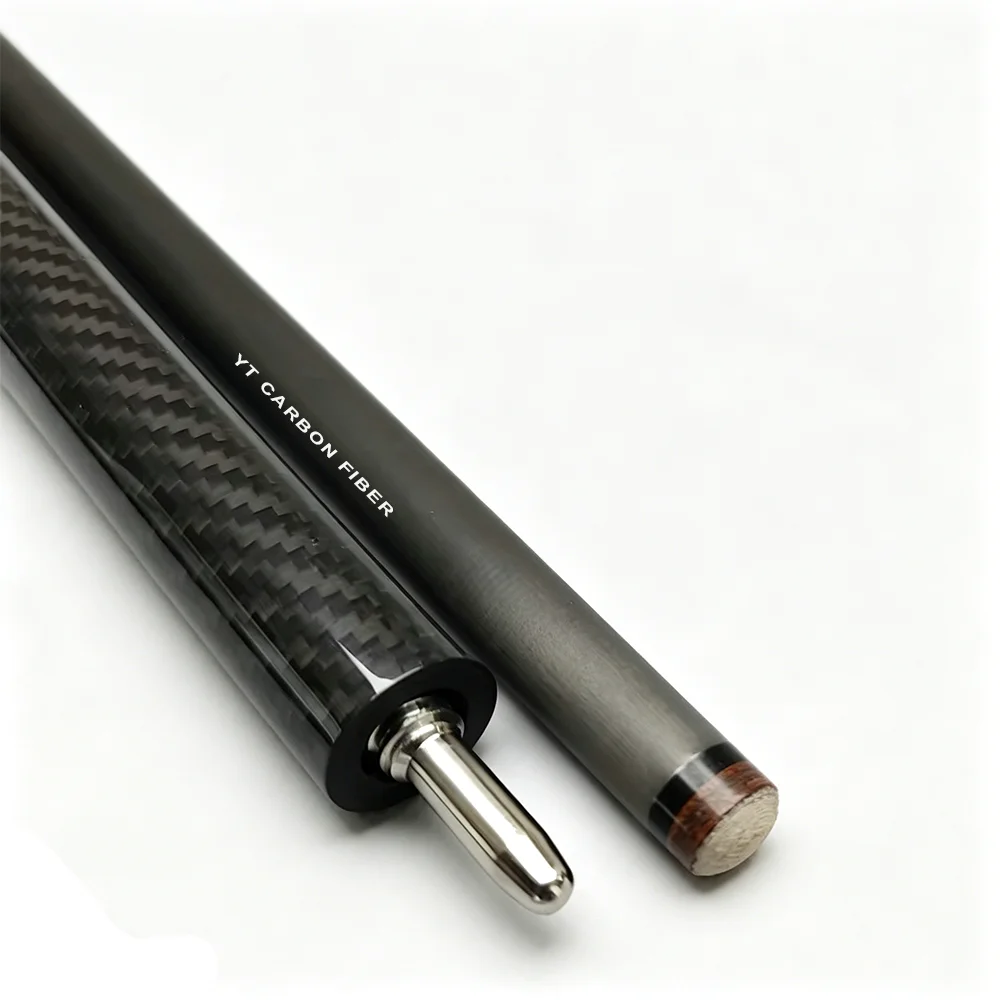

Carbon fiber pool cue shaft joint pin 5/16x14 thread collar reinforcement billiards China YTCarbon

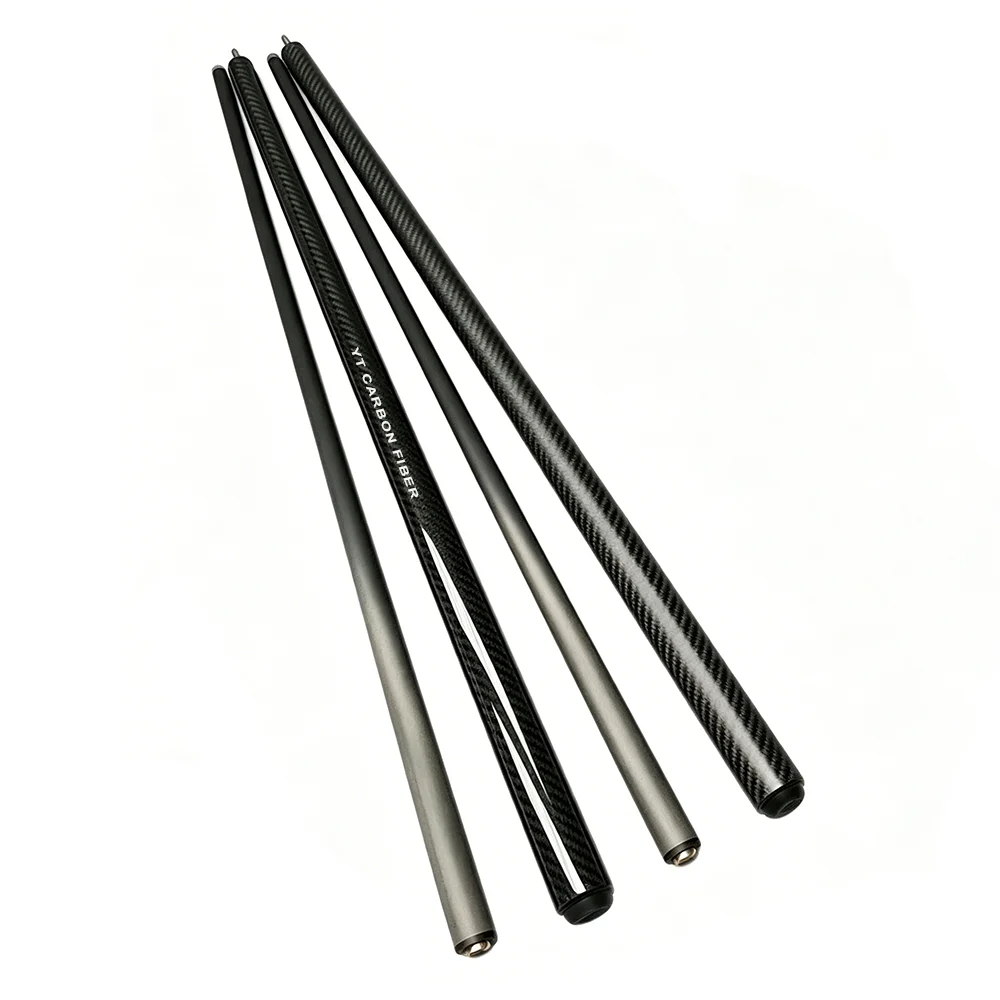

Carbon fiber pool cue shaft assembled with wood butt complete billiard cue stick China YTCarbon

Carbon Fiber Pool Cue Shaft

A carbon fiber pool cue shaft that hits straighter than wood — period. Up to 35% lower deflection, zero warp risk, and consistent hit feel from the first rack to the thousandth. Engineered for cue brands that want to offer the low-deflection performance tournament players demand, without the variability that comes with wood grain.

Request a QuoteWhatsApp Us

Product Details

Wooden cue shafts warp — it is not a question of if, it is when. Leave a maple shaft in a hot car or play in a humid room, and the grain starts to move. A carbon fiber pool cue shaft does not care about any of that. The composite structure is isotropic — it bends the same way in every direction and returns to zero every time. No grain memory, no moisture absorption, no seasonal tuning.

25–35% Lower Deflection

When you strike the cue ball off-center, the shaft flexes sideways and the cue ball deflects opposite. Carbon fiber shafts reduce this sideways flex by 25–35% compared to maple — you aim closer to your true line and adjust less for english. Predator’s REVO proved the concept at pro level; now the technology is available for every cue brand through OEM production.

OEM for Cue Brands

We manufacture carbon fiber cue shafts for brands, distributors, and custom cue makers. Each shaft is roll-wrapped on precision mandrels, ground to pro taper or straight taper, and finished with a polish that feels like conditioned maple. Tip diameter, joint type, and length are all customizable — from 200 shafts for a limited run to 20,000 for a full product line.

Specifications

Specification Details
Shaft Type Playing shaft / Break shaft / Jump shaft
Tip Diameter 11.75mm / 12.25mm / 12.75mm / 13mm (customizable)
Overall Length 29 in (737 mm) standard; 30 in available
Weight 3.5–5.0 oz (100–142g) depending on configuration
Taper Profile Pro taper / Straight taper / Custom taper (CNC-ground)
Joint Type 5/16×14 / 5/16×18 / Uni-Loc / Radial / Piloted / Custom
Deflection 25–35% lower than maple at equivalent tip offset
Fiber Material T700 carbon fiber (T800 optional for premium lines)
Construction UD structural core + bias wrap + woven cosmetic layer
Surface Finish Glossy polished / Matte (silk-smooth bridge hand feel)
Warp Resistance Zero warp under normal temperature and humidity range
Forming Process Roll-wrapping with internal bladder compression
Mold Type Precision steel mandrel (per taper / diameter profile)
Drawing Formats STEP, STP, IGS — flexible customization from 3D design drawings
Mold Lead Time 10–15 business days
MOQ 200 shafts per model

Applications

  • Tournament Playing Shafts — Low-deflection carbon shafts for 9-ball, 10-ball, and straight pool. Less aim adjustment for english shots — aim closer to your true line.
  • Break Shafts — Stiffer layup with reinforced tip section for maximum power transfer. Carbon stiffness prevents energy loss into shaft flex.
  • Jump Shafts — Short, ultra-stiff shafts for jump shots. Crisp, responsive hit that pops the cue ball off the slate cleanly.
  • Carom & Snooker — Thinner tips (11.75–12.25mm) and longer tapers for three-cushion carom and snooker precision. Zero warp critical on 12-foot tables.
  • House Cue Upgrades — Carbon shafts on wood butts for pool halls. Shaft never warps in a rack — fewer replacements, lower long-term cost.

Why Choose YTCarbon

  • Proven at the 2025 World UAV Expo — Roll-wrapping a cue shaft uses the same precision as laying up a drone frame — fiber angle control, bladder compression, zero-void curing. Different product, same standard.
  • 25–35% Lower Deflection, Measured Not Claimed — We test every shaft on a deflection robot and publish the data. No vague “low deflection” labels — just numbers your customers can trust.
  • Zero Warp — Guaranteed — Carbon does not absorb moisture or expand with humidity. If a shaft warps under normal use, we replace it.
  • Pro Taper Ground to ±0.02mm — Taper profile is CNC-ground after wrapping, not mandrel-only. Consistent hit feel from shaft to shaft.
  • Full OEM — Your Brand, Our Engineering — Custom tip diameter, joint, taper, finish, and weave. We engineer the layup for your target deflection. From 200 to 20,000 pieces.

Certifications

YTCarbon operates under ISO 9001:2015 quality management. Every cue shaft batch is traceable from T700 prepreg intake through roll-wrapping, CNC taper grinding, and deflection testing. Material test reports and deflection certificates available on request.

Carbon fiber pool cue shaft ISO 9001 certification low deflection billiards OEM China YTCarbon

How We Manufacture Your Carbon Fiber Pool Cue Shaft

T700 prepreg is cut to the shaft profile. The UD structural core aligns along the shaft axis for bending stiffness; bias-wrapped ±45° layers control torsion; a thin woven cosmetic layer provides the carbon fiber texture players expect. The layup is roll-wrapped onto a precision-ground steel mandrel with an internal bladder, then cured under controlled heat and pressure. After mandrel extraction, the shaft is CNC-ground to the exact taper profile and polished to a silk-smooth finish. Each shaft is measured for straightness (runout ≤0.05mm), tip diameter, and deflection before shipping.

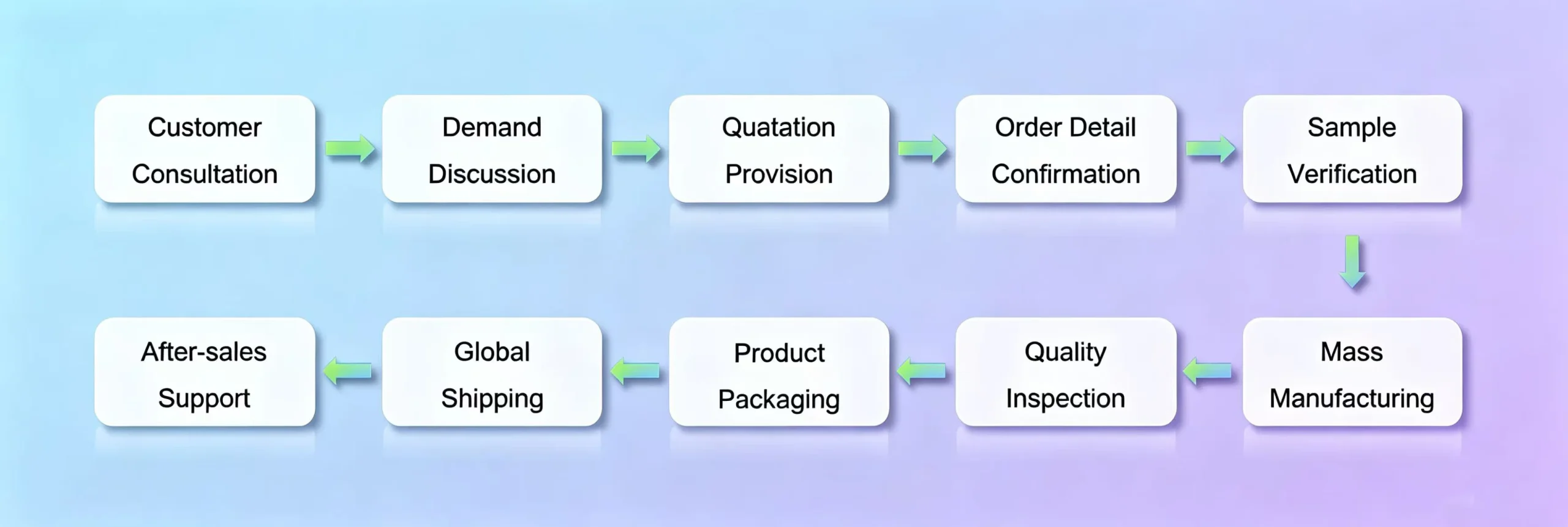

Carbon fiber pool cue shaft roll wrapping bladder compression CNC taper grinding manufacturing process China YTCarbon

FAQ

+ How much does a carbon fiber pool cue shaft reduce deflection compared to maple?
Our T700 shafts reduce deflection by 25–35% at the same tip offset. Low-deflection playing shafts hit 30–35%; break shafts (stiffer layup) around 25%. We test on a deflection robot at 6mm tip offset and publish data for each model. Less deflection = aim closer to your true line = more made shots.
+ Will a carbon fiber cue shaft warp over time like wood?
No. Carbon fiber is isotropic — no grain direction, no moisture absorption, no thermal expansion at billiards-room temperatures. Maple absorbs humidity and bows across the grain. Carbon stays the same on day one as day one thousand. We guarantee it.
+ Does a carbon fiber shaft feel different from wood?
Yes — most players who switch say it feels better. The hit is crisper because composites transfer energy more efficiently than wood grain. The surface polish glides under your bridge hand like conditioned maple. The main adjustment is reduced deflection — you aim closer to your true line, which takes a few sessions to recalibrate.
+ What joint types are available for OEM shafts?
All standard joints: 5/16×14, 5/16×18, Uni-Loc, Radial Pin, 3/8×10, and piloted. The joint pin is bonded with high-strength epoxy and a reinforced collar prevents splitting. Proprietary joint systems welcome — send specs and we engineer the collar to match.
+ Can a carbon shaft fit on my existing wood cue butt?
Yes — that is how most players upgrade. As long as the joint type matches, a carbon shaft fits your butt like a wood replacement. Carbon is slightly lighter than maple at the same diameter, which most players find improves stroke tempo.

Need Custom Carbon Fiber Pool Cue Shafts?

From playing shafts to break shafts — custom tip diameter, joint type, taper, and deflection profile. CNC-ground pro taper. Zero warp guaranteed. OEM direct from Shenzhen China.
