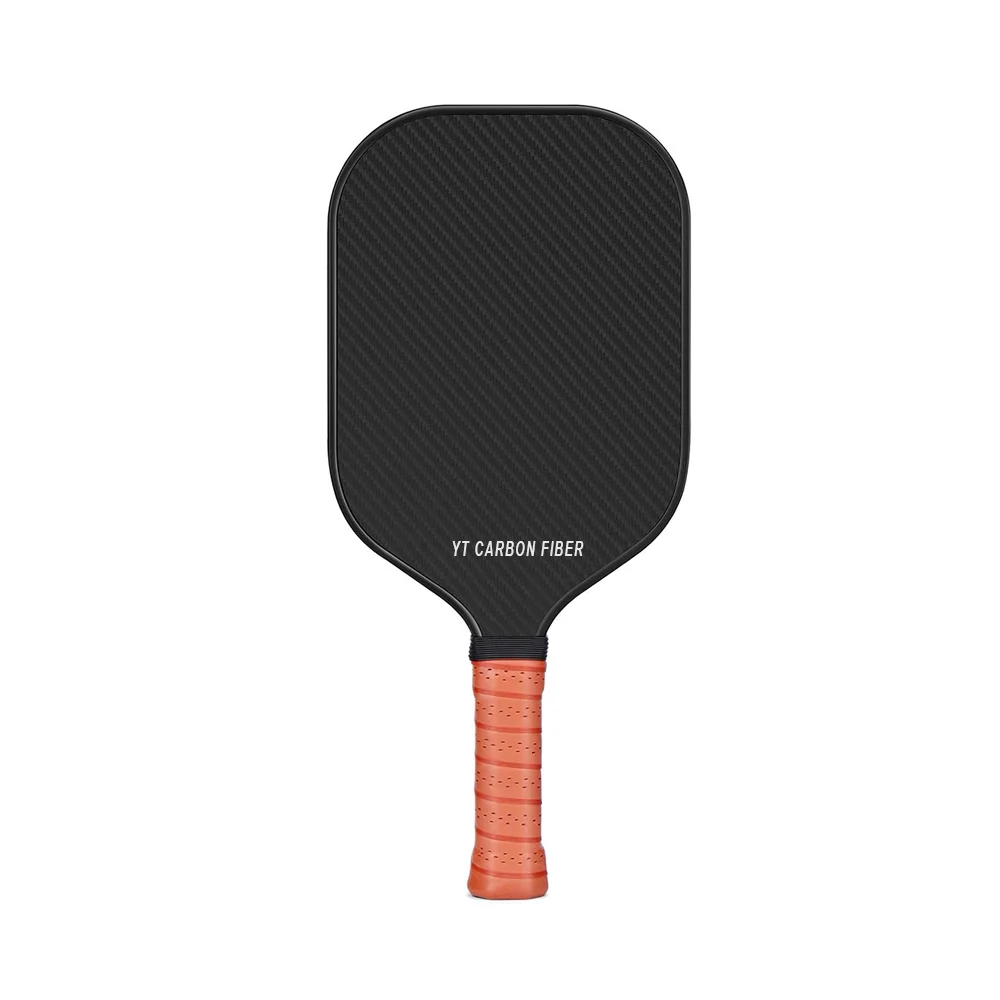

Carbon fiber pickleball paddle T700 face texture YTCarbon

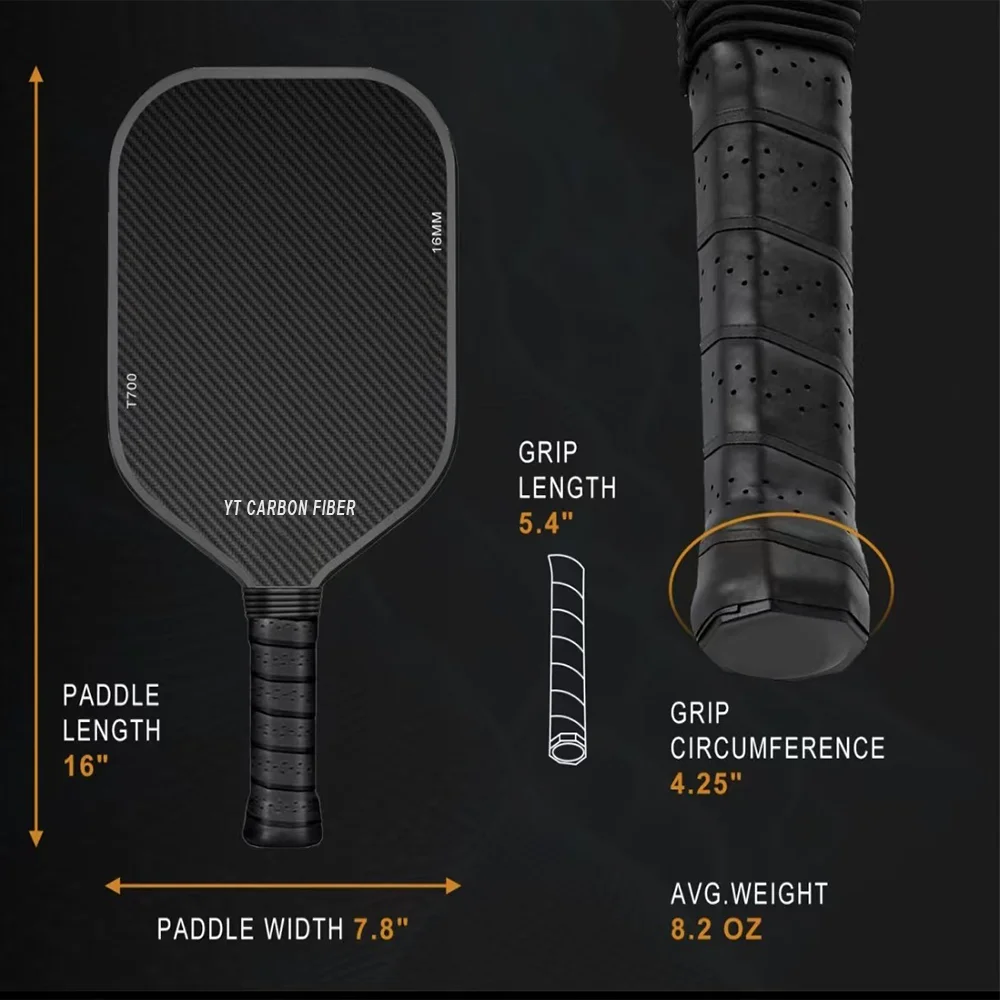

Carbon fiber pickleball paddle side profile 16mm thickness YTCarbon

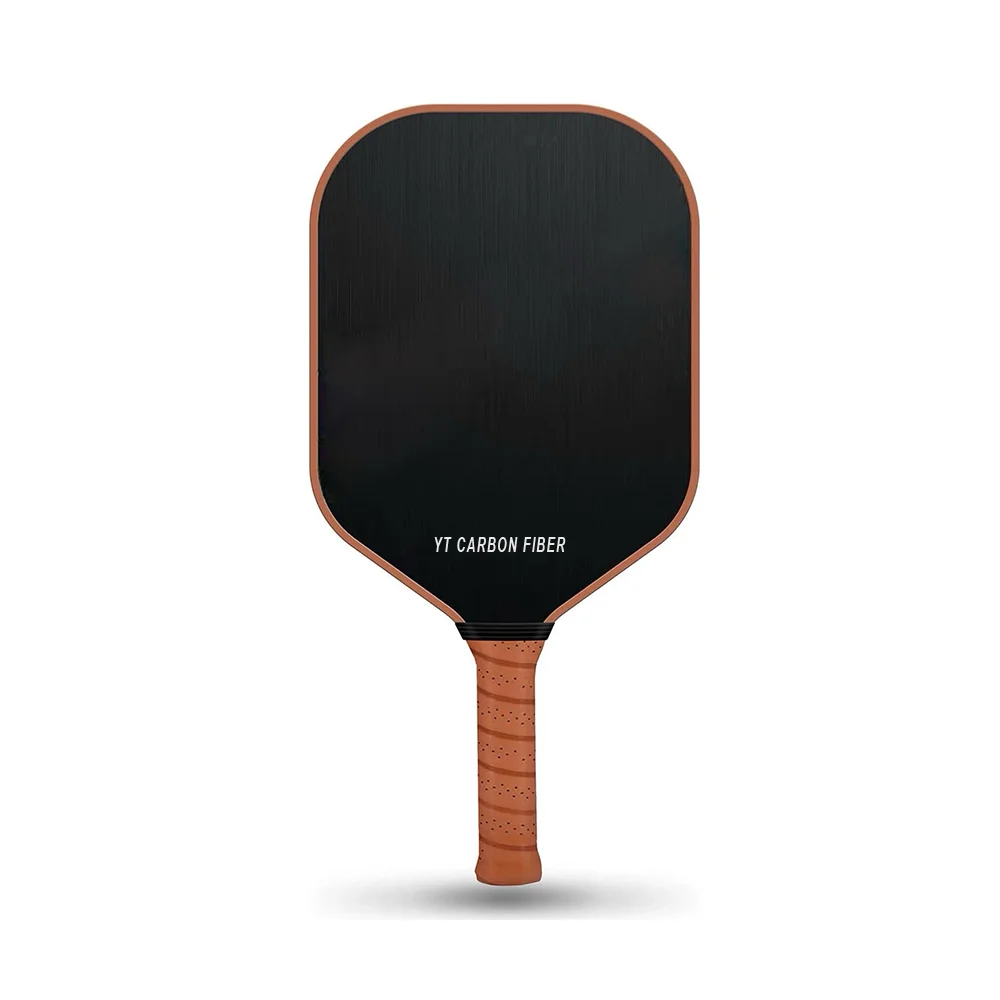

Unidirectional carbon fiber pickleball paddle elongated shape China YTCarbon

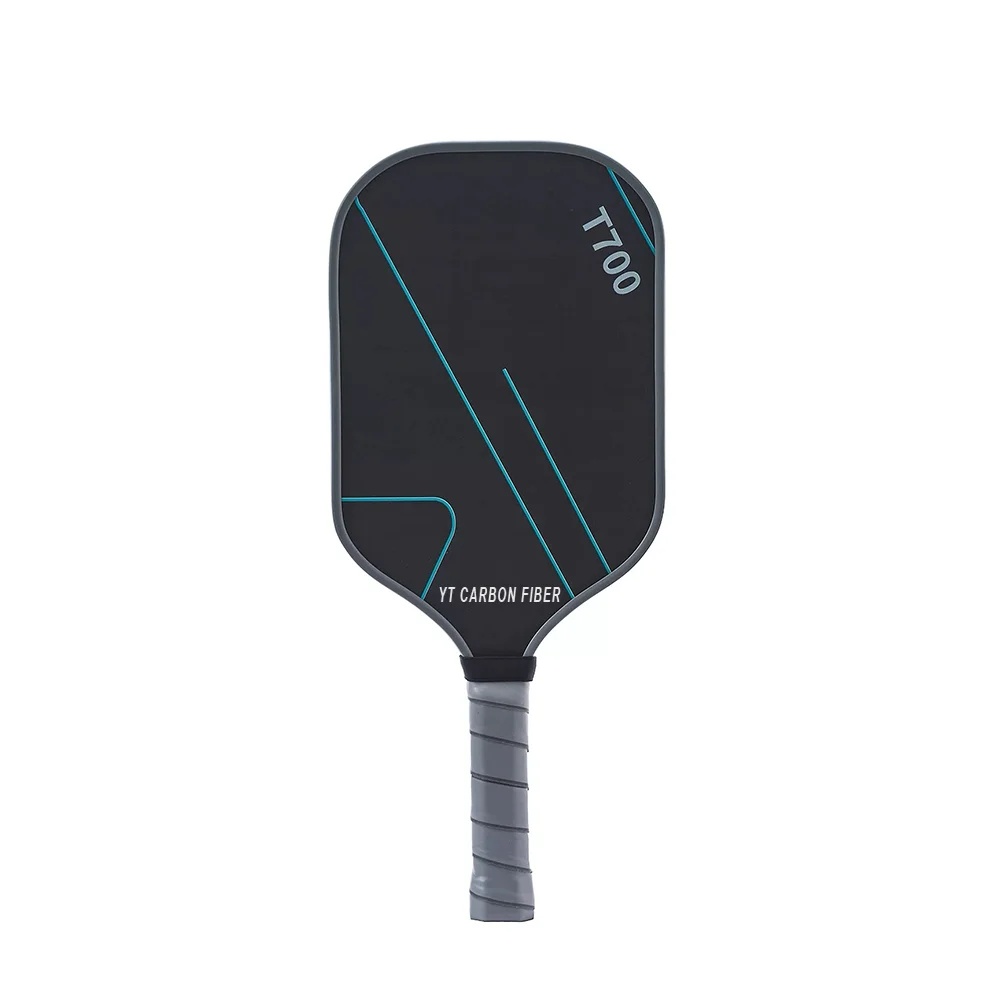

Unidirectional carbon fiber pickleball paddle standard shape China YTCarbon

Carbon Fiber Pickleball Paddle

A carbon fiber pickleball paddle built for brands that need USAPA-compliant tournament-grade performance. T700 carbon fiber face over a polymer honeycomb core, thermoformed for thickness consistency and surface roughness control. We handle the engineering — you bring the brand and the market.

Request a QuoteWhatsApp Us

Product Details

A carbon fiber pickleball paddle face is stiffer and lighter than fiberglass — more power on drives, better touch on dinks. The carbon weave also provides natural surface texture for spin without aftermarket grit that wears off after a few sessions.

Thermoformed for USAPA Certification

Our paddles use T700 carbon fiber thermoformed over a 16mm polymer honeycomb core. Hot-pressed construction delivers ±0.1mm thickness tolerance across the entire face, eliminating the variance that causes 23% of USAPA certification rejections. Surface roughness lands at Rz 18–26μm — well within the Rz ≤40μm limit, with enough texture for competitive spin.

Built for Brands, Not Players

We engineer the layup, core density, and edge guard to pass USAPA standards out of the mold, then provide eight sample paddles for your certification submission. Custom face graphics, grip color, and edge guard style are all part of the OEM package — from 200-piece launch to 50,000-unit scale.

Specifications

Specification Details
Face Material T700 carbon fiber (3K twill / raw carbon / spread tow optional)
Core Polymer honeycomb, 16mm (14mm optional)
Paddle Length 16.5 in (419 mm) — within USAPA 17 in max
Paddle Width 7.4 in (188 mm) — combined L+W within 24 in max
Thickness 16mm (±0.1mm thermoformed tolerance)
Weight 7.8–8.5 oz (220–240g) — midweight balance
Handle Length 5.5 in (139 mm)
Handle Circumference 4.25 in (108 mm) — standard grip
Surface Roughness Rz 18–26 μm (USAPA limit ≤40 μm)
Edge Guard Protrusion ≤0.040 in (1.016mm) per USAPA spec
Shape Options Elongated / Standard / Wide-body — all USAPA-compliant
Forming Process Thermoformed hot press with matched-metal dies
Mold Type CNC aluminum matched-metal die (per shape)
Drawing Formats STEP, STP, IGS — flexible customization from 3D design drawings
Mold Lead Time 15–20 business days
MOQ 200 pieces per model

Applications

  • Tournament Paddles — USAPA-certified for sanctioned play. T700 face and honeycomb core pass deflection, roughness, and PBCoR tests consistently.
  • Recreation & Club Paddles — Same carbon face construction at lower cost with standard polymer core. Ideal for clubs and resorts buying in bulk.
  • Junior & Training Paddles — Shorter handle, lighter weight (under 7.5 oz) for younger players. Custom graphics available.
  • Pro-Grade Custom Lines — Full OEM: you spec shape, weight, balance, grip. We engineer the layup, prototype, and run production.
  • Paddle + Accessory Sets — Bundle with matching covers, overgrips, and edge tape. One supplier, one brand experience.

Why Choose YTCarbon

  • Proven at the 2025 World UAV Expo — If we can thermoform drone frames that survive crashes, we can thermoform a pickleball paddle that passes USAPA on the first submission.
  • Thermoformed for Certification Consistency — ±0.1mm thickness tolerance across the entire face. No hot spots, no variance between paddle #1 and #10,000. That consistency gets you through USAPA testing first try.
  • Surface Roughness Engineered, Not Sprayed On — The carbon weave provides Rz 18–26μm naturally. No grit coating that peels off or pushes you over the limit.
  • Eight Samples for Your USAPA Submission — Same layup, same batch, ready for the testing lab. We include pre-test data so you know they will pass before you pay the $1,500 fee.
  • Full OEM from Shape to Ship — Pick shape, weight, grip, graphics. We build the die, prototype, and run production. Your brand, our engineering, zero middlemen.

Certifications

YTCarbon operates under ISO 9001:2015 quality management. Every paddle batch is traceable from T700 prepreg intake through thermoforming and final inspection. Surface roughness profilometer data and deflection test certificates available on request.

Carbon fiber pickleball paddle certifications ISO 9001 YTCarbon

How We Manufacture Your Carbon Fiber Pickleball Paddle

T700 prepreg is cut to the face profile and laid over a shaped polymer honeycomb core. The face layers, core, and edge guard are stacked in a CNC-machined aluminum matched-metal die and thermoformed under controlled heat and pressure. After cooling, the paddle is CNC-trimmed, handle-wrapped, and surface roughness is measured at five zones across the face. Each paddle is weighed, inspected, and flex-tested before packing.

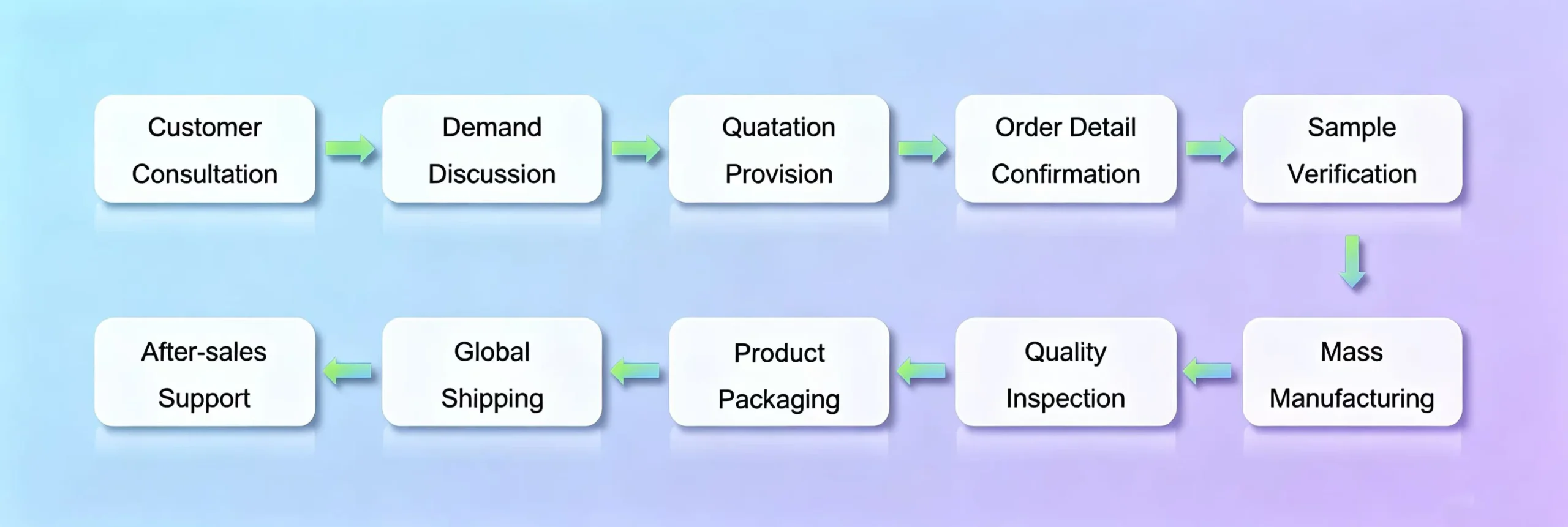

Carbon fiber pickleball paddle manufacturing process YTCarbon

FAQ

+ What is the advantage of T700 carbon fiber for pickleball paddle faces?
T700 is the sweet spot between stiffness and cost. Stiffer than T300 for crisp feel on drives, more affordable than T800 which is overkill for a paddle that also needs ball dwell time for control. The raw carbon surface produces natural spin texture — the weave pattern itself sits in the USAPA-compliant Rz range.
+ How does thermoformed construction help with USAPA certification?
Thickness variance causes 23% of USAPA rejections. Thermoforming with matched-metal dies delivers ±0.1mm tolerance across the entire face — every point is in spec, not just the center. Hot-pressed bonding also prevents delamination and keeps paddles within deflection limits over their useful life.
+ Raw carbon vs grit-coated paddle surfaces — which is better?
Raw carbon uses the weave texture for spin (Rz 8–18μm). Grit coating adds particles for more aggressive spin (Rz 22–30μm) but can wear off unevenly, risking USAPA non-compliance. Raw carbon texture is integral to the face — it cannot delaminate. For certification longevity, raw carbon is safer. For max spin out of the box, grit coating works but needs wear management.
+ How do I get a custom pickleball paddle USAPA approved?
Submit eight sample paddles to USA Pickleball with a $1,500 per-model fee. The lab runs dimensional, roughness, friction, deflection, and PBCoR tests — roughly 45 working days. We provide pre-submission test data so you know they will pass before spending the fee. If a paddle fails, we adjust the layup and supply new samples.
+ Can I order different shapes under the same brand?
Yes, but each shape or core thickness needs its own USAPA certification. Different colors or graphics on the same shape = one cert. We build each shape on its own die and track certification batches separately. Launching three shapes? We prototype all three in parallel and supply 24 samples for simultaneous submission.

Need Custom Carbon Fiber Pickleball Paddles?

From first sample to USAPA certification to 50K-unit production — T700 face, thermoformed, tournament-ready. Direct OEM from our Shenzhen factory.
