0.5mm Carbon Fiber Sheet | Flexible Thin CF Plate

Product Details

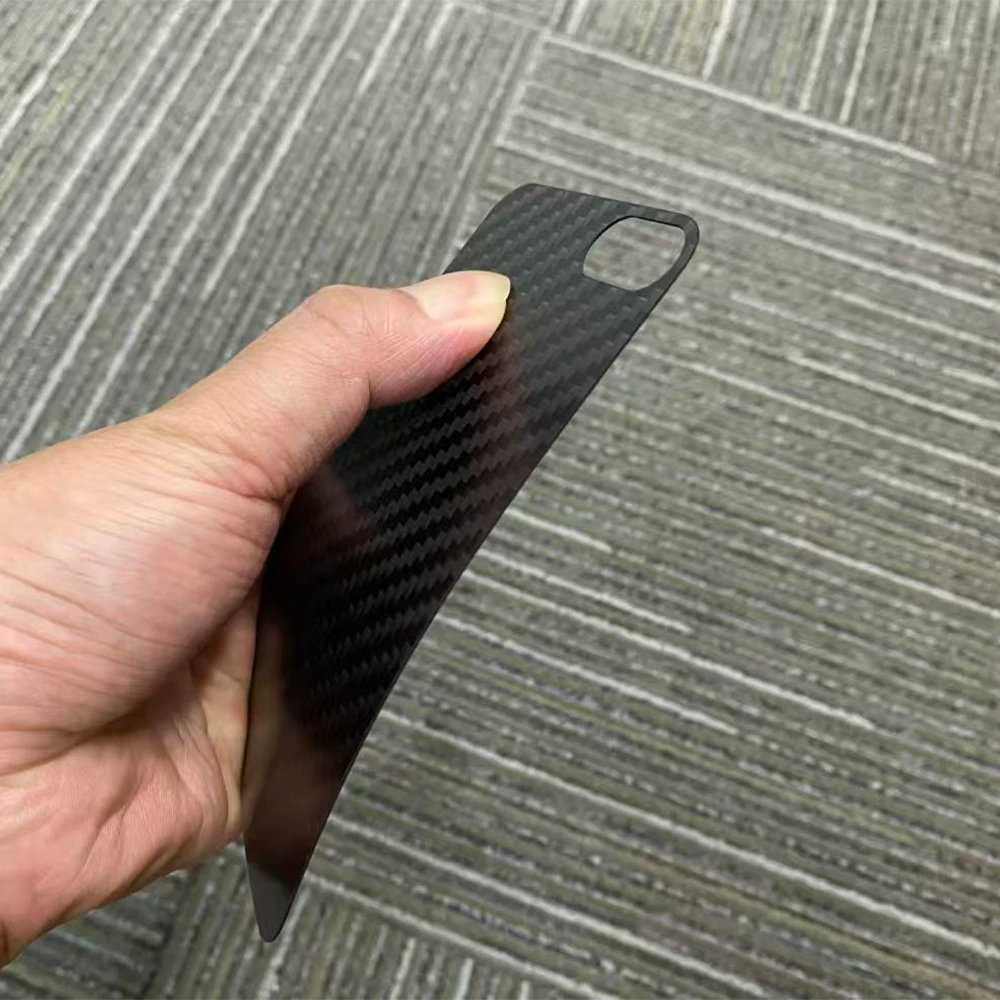

Semi-Flexible Elastic Resilience Without Cracking

Unlike thicker structural plates designed purely for absolute rigid bending resistance, our 0.5mm carbon fiber sheet is engineered with calibrated semi-flexibility. Formed from balanced micro-plies, this ultra-thin sheet can flex along gradual contours without matrix crazing or fiber fracture. It delivers an outstanding elastic spring-back response, making it ideal for flexible drive linkages, wearable robotics armatures, and curved ergonomic surfaces where thicker plates would crack or resist installation.

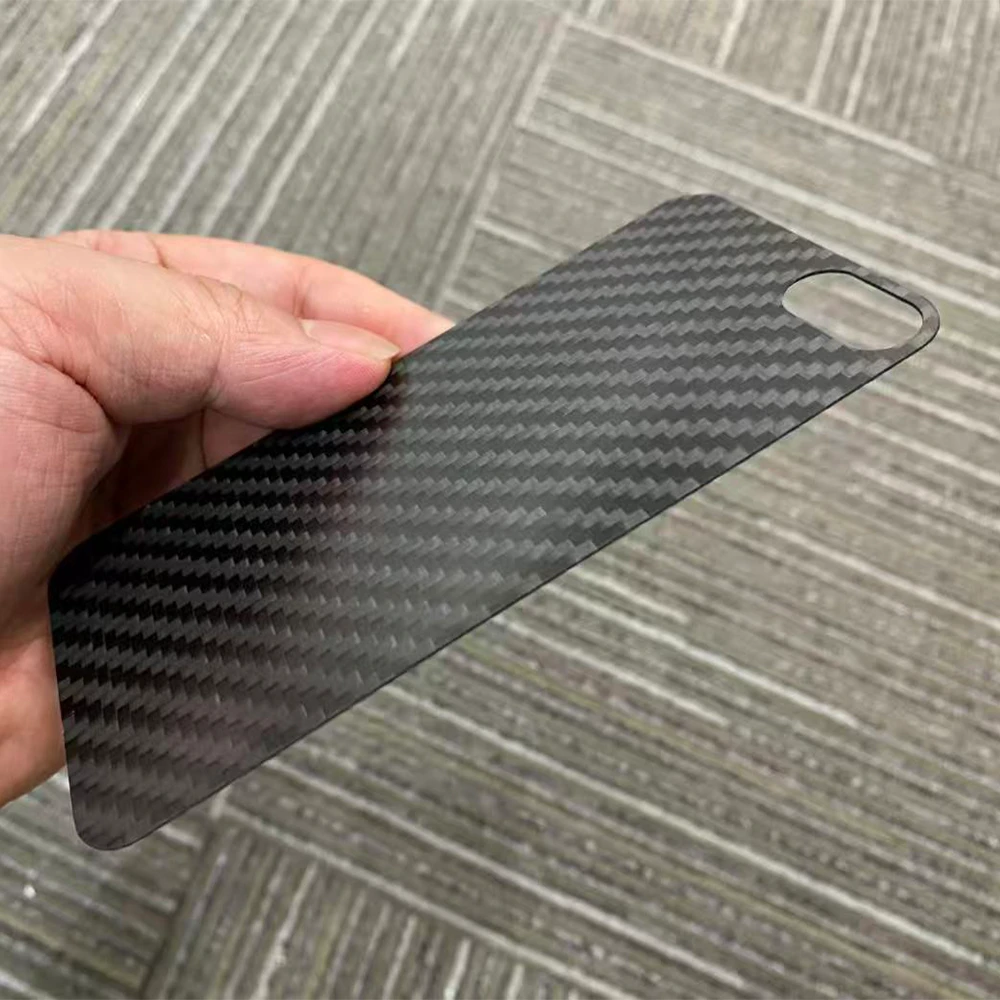

Precision Shims and Micro-Gap Spacers

In precision mechanical assemblies, standard metallic shims suffer from irreversible deformation under repeated clamping, corrosion from humidity, and thermal expansion drift. At 0.50mm nominal thickness with a reliable ±0.1mm factory tolerance, this composite laminate functions as a dimensionally stable, non-corrosive spacing element. It absorbs micro-vibrations across kinematic stages and retains nominal clearance across fluctuating operating temperatures.

Featherweight Mass for Dynamic High-Cycle Mechanisms

Weighing a mere ~0.75 kg/m² (with a density of ~1.50 g/cm³), our 0.5mm carbon panel enables aggressive mass minimization. In high-cycle pick-and-place automation, RC competitive chassis stiffening, and portable instrumentation, substituting thin steel or aluminum shims with carbon fiber reduces drive motor inertia, lowers kinetic vibration, and accelerates system cycle speeds.

Specifications

Parameter	Specification
Product Classification	Ultra-Thin 0.5mm Carbon Fiber Sheet / Flexible Composite Plate
Nominal Thickness	0.50mm (±0.1mm planar factory tolerance)
Raw Material Grade	100% Continuous Carbon Fiber Prepreg (High-Tensile T700 / Standard T300)

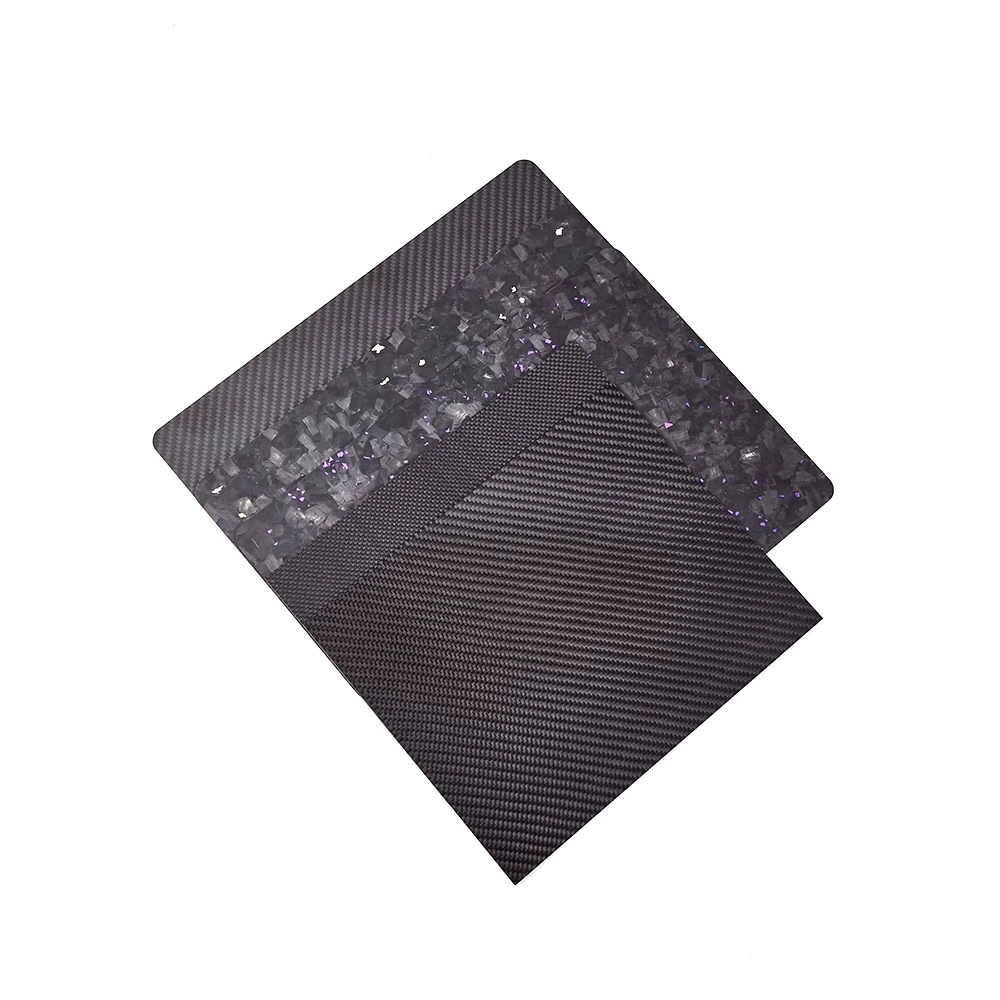

Surface Pattern & Finish	3K Twill (2×2) / 3K Plain; Scratch-Resistant Matte or Glossy Clear Coat
Internal Layup Count	2 plies balanced symmetrical micro-architecture
Fiber Volume Fraction	60% ± 3% (Void ratio < 1%)
Areal Weight / Density	~0.75 kg/m² (~1.50 g/cm³ composite density)
Mechanical Flexibility	Semi-flexible (Supports continuous curved contours down to calibrated radii)
Bonding & Mounting	Direct structural adhesive bonding, 3M double-sided tape backing, clamp washers
Standard Panel Sizes	400×500mm, 500×500mm, 1000×1000mm (Custom pressings up to 3000×8000mm)
Secondary Machining Scope	Burr-free laser profiling, diamond CNC routing, precision die-cutting, adhesive backing

Applications

Precision machinery shims and gap compensators — Eliminates thermal drift and permanent compression set in dynamic industrial stages.
Electronic enclosures & portable equipment backs — Delivers structural rigidity and localized heat dissipation for handheld terminals and diagnostic gear.
RC model chassis stiffeners & body skins — Adds localized torsional strength along car and boat chassis without compromising vehicle center of gravity.
Curved automotive dash & interior trim veneers — Complies smoothly with curved contour tooling for scratch-resistant luxury automotive cabins.
Ultralight wallet, knife scale, and accessory laminates — Provides abrasion resistance and geometric stability for everyday carry (EDC) goods.
Acoustic speaker diaphragms & damper leaves — Leverages high velocity-of-sound propagation for precision high-frequency acoustic drivers.

Why Choose YTCarbon

Dependable ±0.1mm thickness control. Hydraulic hot-press curing between mirror-polished steel platens eliminates pinholes and excessive thickness taper.
100% continuous carbon plies. Fabricated with zero fiberglass scrim backing or chalky resin fillers for true composite elasticity.
Clean burr-free edge machining. Vacuum-assisted fine routing and high-speed laser cutting deliver razor-clean borders without frayed fiber strands.
Pre-applied structural adhesive options. Available with industrial-grade 3M adhesive transfer tapes (e.g., 3M 467MP / 468MP) for peel-and-stick assembly.
Continuous sheets up to 3m × 8m. Large-envelope manufacturing allows large continuous cutouts for architectural and equipment cladding.
ISO 9001 certified production. Complete lot tracking, dimensional caliper verification, and material compliance certifications provided.

Certifications

Our ultra-thin 0.5mm composite panels undergo rigorous optical flatness checks and thickness caliper audits across every production batch. Operating within an audited ISO 9001 framework, all composite matrices comply with RoHS environmental directives, REACH chemical safety standards, and CE international export protocols. Material mechanical spec sheets and batch inspection certificates are available for your compliance files.

ISO 9001 · RoHS · REACH · CE Certified Quality

Production Process

Producing defect-free 0.5mm carbon fiber sheets requires specialized thermal and pressure calibration to prevent sheet wrinkling, pinholing, or resin starvation across micro-thin plies:

Ultralight Prepreg Cutting — Precision-calibrated 3K prepreg rolls are digitally cut using automated knife systems under constant temperature and humidity.
2-Ply Symmetrical Layup — Plies are positioned in balanced 0°/90° orientations in cleanrooms to eliminate residual curing stress and prevent sheet curling.
Mirror Platen Enclosure — The layup is enclosed between optical-grade, mirror-polished steel tool plates to guarantee uniform surface finish on both faces.
High-Tonnage Hydraulic Pressing — Controlled thermal profiles (120°C) and uniform multi-ton compression crosslink the resin without flushing out fiber content.

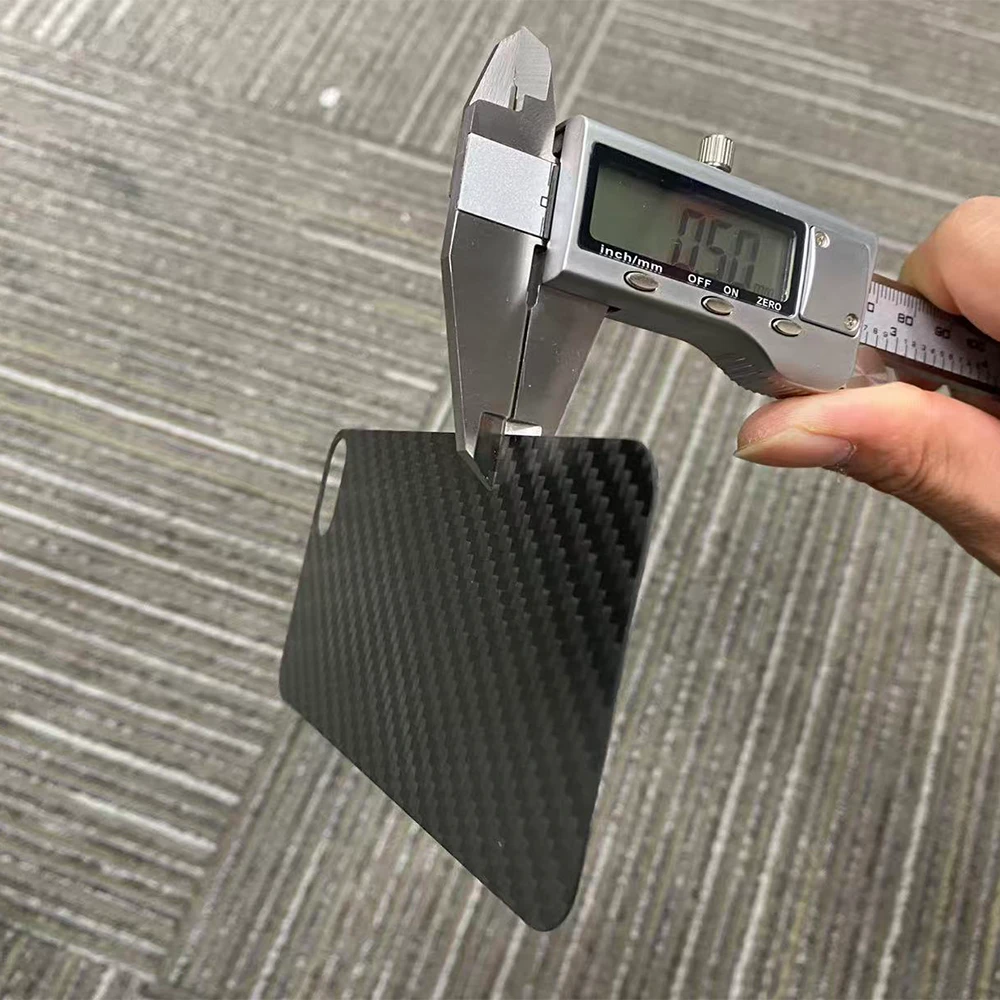

Thickness Audit Scanning — Demolded 0.5mm sheets are verified using digital micrometers to ensure planar compliance within ±0.1mm tolerance.
Precision Laser & CNC Trimming — Fine-pitch diamond cutters or specialized lasers profile custom shapes, shims, and clearance holes down to ±0.05mm.
Protective Masking & Shipping — Anti-scratch protective films are applied to both sides before flat, rigid packing to prevent transit flexure.

0.5mm Carbon Fiber Sheet Production Process

Frequently Asked Questions

Flexibility & Mechanics

+ Can a 0.5mm carbon fiber sheet bend around curved profiles?

Yes. A 0.5mm carbon fiber sheet is semi-flexible and can conform to gentle curved surfaces (such as automotive dashboard contours or equipment housings) without cracking. However, it cannot be folded at a sharp 90-degree crease; for sharp corners, molded composite angles or CNC joined panels must be used.

+ How does 0.5mm carbon fiber compare to stainless steel shims?

A 0.5mm carbon fiber shim is roughly 80% lighter than an equivalent steel shim (density: ~1.50 g/cm³ vs ~7.9 g/cm³), exhibits zero electrochemical rust, and does not experience permanent plastic yielding under repeated cyclic mechanical clamping.

+ Can 0.5mm carbon fiber sheets be countersunk?

No. At 0.50mm nominal thickness, machining a countersink would cut through the entire laminate stack. For mounting 0.5mm panels, we recommend high-bond structural adhesive tapes (such as 3M 468MP), epoxies, or surface clamping using flat washers.

Fabrication & Custom Options

+ What is the best method for cutting 0.5mm carbon fiber sheets?

For prototype shims or small runs, high-speed CNC routing with fine-fluted diamond burrs under vacuum hold-down works well. For intricate contours or high-volume gasket production, precision laser cutting or steel-rule die punching delivers clean, burr-free perimeter cuts.

+ Can you deliver 0.5mm sheets with pre-applied adhesive backing?

Yes. We offer factory pre-lamination with genuine 3M transfer adhesives (such as 3M 467MP, 3M 468MP, or 3M VHB series) with peel-off protective liners, allowing immediate peel-and-stick application on your production line.

+ What is the lead time for standard and custom-cut 0.5mm sheets?

Standard off-the-shelf sheets (400×500mm, 500×500mm) ship within 3 business days. Custom laser-cut shims, die-cut gaskets, and pre-taped panels typically dispatch within 5 to 7 business days following CAD drawing sign-off.
